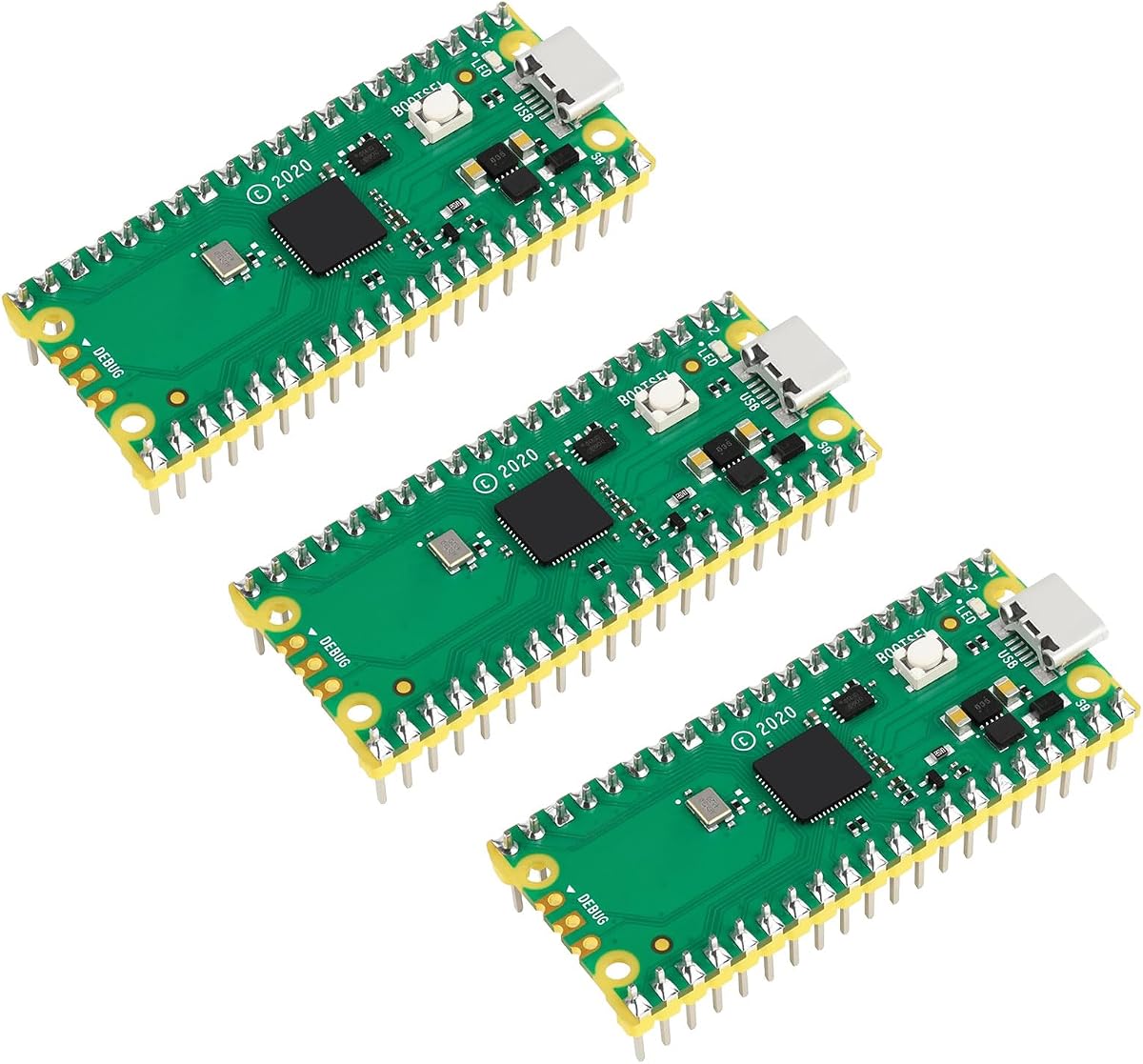

3 Pack Development Board Compatible with Raspberry Pi Pico RP2040, Solderable Header Version, Dual-Core ARM Cortex-M0+ Processor up to 133MHz, 2MB Flash, MicroPython & C/C++ for Learning & DIY

Descripción

Product SpecificationsCore Processing & ArchitectureProcessor: Dual-core ARM Cortex-M0+ processor running at a flexible clock speed up to 133MHz.Performance Features: Low-power architecture with deterministic bus fabric, integrated hardware integer dividers, and single-cycle IO ports for precise real-time peripheral control.Debugging Interface: Dedicated 3-pin Serial Wire Debug (SWD) port (SWCLK, GND, SWDIO) located at the bottom edge for low-level hardware debugging and flashing.Memory & Storage CapacityOnboard Flash: 2MB Quad SPI (QSPI) Flash memory for robust storage of firmware, configuration files, and script assets.On-Chip SRAM: 264KB of ultra-fast, multi-bank system SRAM designed to prevent latency bottlenecks during heavy multitasking workloads.Bootloader ROM: 16KB of embedded read-only memory supporting USB mass-storage class for simple drag-and-drop programming.Peripheral Interfaces & I/O BreakoutProgrammable GPIOs: 30 multi-function general-purpose input/output pins broken out on castelled holes for direct soldering or breadboard mounting.Serial Communications: 2 × UART controllers, 2 × SPI controllers, and 2 × I2C controllers fully configurable across various GPIOs.Audio Interface: 1 × Integrated I2S controller for interfacing with digital audio components like microphones and DACs.Pulse Width Modulation (PWM): Up to 16 independent hardware PWM channels for precise control over servo motors, stepper drivers, and LED dimming.Programmable I/O (PIO): 2 × PIO blocks with 8 independent state machines, enabling custom peripheral protocol emulation (such as SD card interfaces or custom video drivers) without taxing the main CPU.Analog SubsystemAnalog-to-Digital Converter (ADC): 12-bit Successive Approximation Register (SAR) ADC supporting high-accuracy analog readings.ADC Channels: 4-channel analog inputs total, with 3 channels broken out to external pins (GP26/ADC0, GP27/ADC1, GP28/ADC2) and 1 channel routed to an internal temperature sensor.Signal Noise Isolation: Features isolated Analog Ground (AGND) and ADC Reference Voltage (ADC_VREF) pins to eliminate digital switching interference from analog sensor data.Onboard Hardware & ControlsUSB Interface: Onboard USB Type-C connector providing a durable connection for power delivery, serial communication data transfers, and programming.USB Controller: Integrated USB 1.1 Host and Device controller architecture.Tactile Buttons: 1 × Integrated physical BOOTSEL button for seamless execution of USB mass-storage mode entries during power cycles.Status Indicators: 1 × Onboard programmable user LED mapped permanently to GPIO pin GP25 for immediate diagnostic output.Clock Management: Onboard precise crystal oscillator along with internal fractional PLLs for custom frequency configurations.Power & Electrical SpecificationsOperating Logic Voltage: Standard 3.3V I/O logic level.Power Input Rails: VBUS (Direct 5V USB input power line) and VSYS (Main system supply input line supporting wide voltage inputs).Power Output Rails: 3V3_OUT (3.3V regulated power output up to 300mA for external components) and 3V3_EN (Regulator control pin to enable or disable the onboard 3.3V buck-boost circuit).Development EcosystemSoftware & Firmware Support: Fully optimized for MicroPython, CircuitPython, and the official C/C++ SDK frameworks.IDE Compatibility: Native plug-and-play operation with Arduino IDE, Thonny Python IDE, Visual Studio Code, and other popular embedded engineering environments.Mechanical Layout & PackageForm Factor: Highly compact thumb-sized layout with castellations allowing the board to be used either as a DIP module on breadboards or surface-mounted (SMD) directly onto custom PCBs.Package Includes: 3 × RP2040 Development Boards with loose, unsoldered male pin headers for maximal hardware configuration flexibility.

Características

• 🔌Solderable Raspberry Pi Pico RP2040 Development Boards This version comes with unsoldered pin headers, allowing flexible custom wiring and integration with breadboards or custom PCBs, perfect for hobbyists, makers, and embedded projects requiring tailored connections.
• ⚡High-Performance RP2040 Microcontroller Powered by the dual-core ARM Cortex-M0+ RP2040 processor running up to 133MHz, these boards provide fast processing, 264KB SRAM, and 2MB onboard flash, delivering reliable performance for real-time control and IoT experiments.
• 🧰Flexible Hardware Interfaces Equipped with 30 GPIO pins, analog inputs, PWM channels, SPI, I2C, UART, and USB 1.1 support, these solderable Pico boards allow users to connect sensors, displays, motors, and other peripherals for educational, DIY, and embedded applications.
• 📐Compact Design for Custom Projects With its small thumb-sized footprint and solderable headers, the boards can be used on breadboards, custom PCBs, or as surface-mounted modules, making them ideal for space-constrained or portable projects.
• 🎓Ideal for Learning, DIY and Embedded Systems These Raspberry Pi Pico boards are widely used in education, robotics, automation, and hobby electronics, providing beginners and advanced makers with a reliable platform for firmware development, electronics experiments, and project prototyping.
