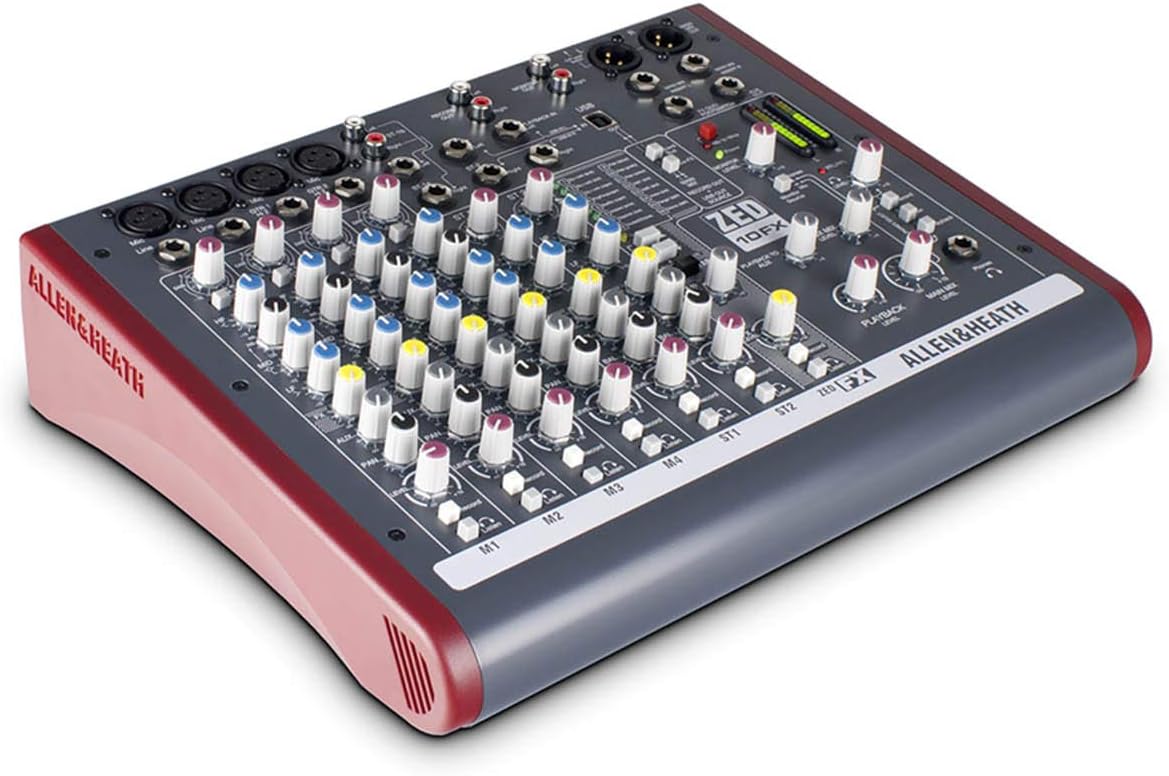

Mezclador analógico de 10 canales Allen & Heath ZED-10FX con E/S FX y USB a bordo | 2 micrófonos/línea/DI, 3 líneas estéreo, E/S FX y USB a bordo AH-ZED-10FX

Descripción

From the manufacturer USB AUDIO FLEXIBILITY Flexible Send and Return Options Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super- flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it! CD quality audio to and from your PC or Mac. MusiQ to Your Ears ZED features a responsive 3-band, swept mid frequency EQ design which utilizes MusiQ – with optimized slope (or Q factor) for equalizing individual instruments. GUITAR DI ZED’s pre-amps are similar in design to our MixWizard range of mixers, but with a twist! Inputs 3 & 4 have a high impedance jack input capable of taking either a normal line level or a low level input from a guitar pickup. These newly designed inputs have been crafted with the aim of replicating the sound of a classic guitar or instrument tube pre-amp in a combo or head amp. An extremely high input impedance ensures loading on pick-ups is minimal and a Class A FET (field effect transistor) circuit powered from 48V is employed to give the valve-like gain stage. There is a gain “Boost” switch associated with the guitar inputs which boosts gain by 26dB to cater for instruments with very low level outputs and the overdrive characteristics of the guitar inputs are very similar to a valve (tube) circuit, being asymmetric and soft. All this makes for a wonderfully natural sound to be reproduced from the instrument, full of warmth and character. ZED-10 ZED-10FX ZED60-10FX ZED60-14FX Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.4 out of 5 stars 49 4.6 out of 5 stars 106 4.6 out of 5 stars 53 4.1 out of 5 stars 40 Price $399.99$399.99 $479.99$479.99 $599.99$599.99 $749.99$749.99 USB Interface 2x2 2x2 2x2 2x2 Built-in FX No Yes Yes Yes Built-in DI for Guitar Yes Yes Yes Yes Mic/Line Inputs (XLR/TRS) 4 4 4 8 Stereo Input Channels 3 3 3 3 AUX Mixes 2 2 2 2 Channel EQ 3-Band Sweepable 3-Band Sweepable 3-Band Sweepable 3-Band Sweepable 60mm Faders no data no data All Channels All Channels Channel inserts Mains Only Mains Only Mains Only Mains Only

Características

• The compact ZED range of mixers feature the same high-level audio and build quality as A&H’s large format touring consoles, with separate internal channel boards, Neutrik connectors and every pot fixed to the chassis.
• Full, clear and detailed preamps with low noise, 60dB of gain and 48V phantom power bring out the best in any microphone. Two of the mono channels also have a HiZ connection to allow direct connection of high impedance sources without the need for a separate DI box.
• A built-in, studio quality multi-FX unit provides 16 different, tweakable FX types including reverbs, delays and modulation with tap tempo to keep everything in time. These are not your average compact mixer FX either, using algorithms developed entirely in-house by our DSP experts rather than an ‘off-the-shelf’ chip.
• The routable stereo USB output can be used to record/stream the whole mix, Aux and FX sends or the dedicated record bus which has switches on each channel which make it super easy to select just some channels for recording. It’s also class compliant and does not require drivers, meaning not just Mac and Windows computers can be connected, but also many mobile devices such as tablets or even smart phones.
• Optional rack ear kit [ZED10-RK19] securely fits the mixer into a standard 19” rack or flight case.
• 4 Mic, 4 Line/Inst, 2 Stereo (2 Left, 2 Right), 2 USB Audio, 1 Stereo Playback

Especificaciones
