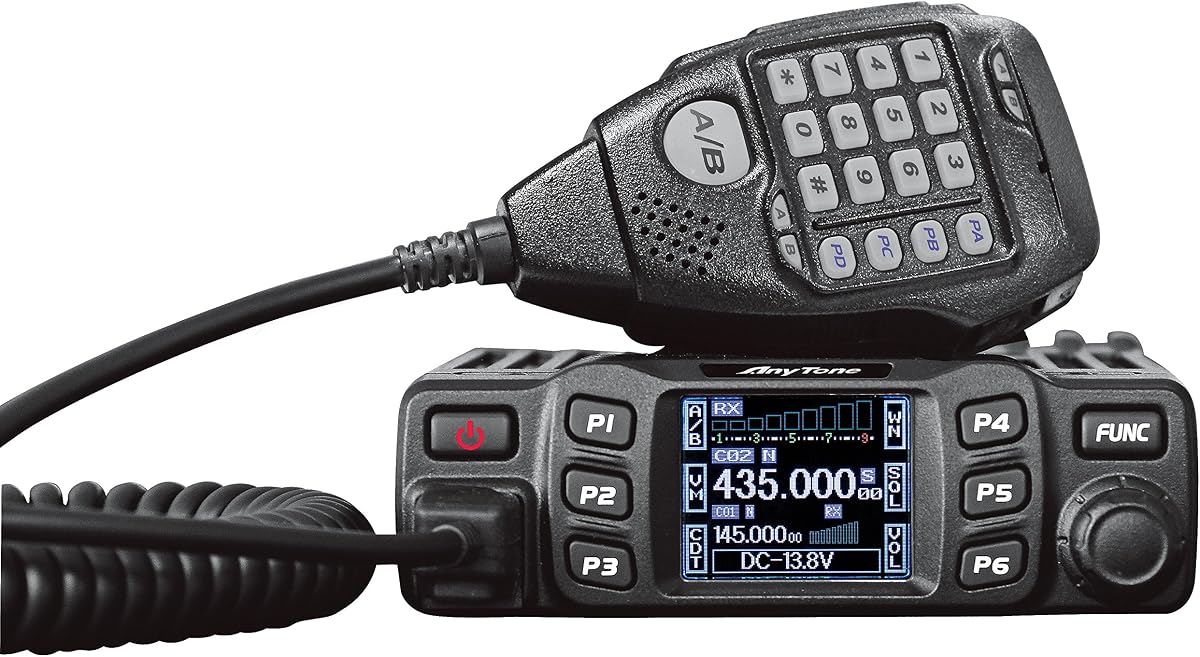

AnyTone AT-778UV Dual Band Transceiver Mobile Radio VHF/Uhf Two Way Radio

Descripción

Product description AnyTone AT-778UV Dual Band Transceiver Mobile Radio VHF/Uhf Two Way Amateur Radio FUNCTIONS & FEATURES AnyTone AT-778UV Mobile Radio is complied with Federal Communications Commission (FCC) regulations. complies with Part 15B and Part 97 of FCC rule, FCC ID is T4K-778UV. AT-778UV Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This amateur mobile radio especially designs for drivers and it pursues philosophy of innovation and practicality. More functions as follows: 1.Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation; 180 degree rotatable TFT LCD display Full alloy body for heat radiation; 2. louder speaker inside microphone and radio base; VOX function 3. Amateur mode and professional mode for different operation requirement; 4. Distribute buttons reasonably, convenient for operation; 5. Sperate band width setting for each single channel, Wide 25K, Middle 20K, arrow 2.5K; 6. 200 programmable memory channels, identiied by editing name; 7. Sperate CTCSS, DCS setting for each single channel, rejecting extra calling from other radios; 8. Various scan functions including CTCSS/DCS Scan function; 9. Smart menu control and PC programming control; 10. Voltage level protection; 11. LCD brightless control; 12. Automatic power on function; 13. Main unit and microphone key lock function; Specifications General Frequency Range: VHF:136-174MHz UHF:400-490MHz Number of Channels:200 channels Channel Spacing:25K(Wide Band) 20K(Middle Band) 12.5K(Narrow Band) Phase-locked Step:2.5KHz, 5KHz,6.25KHz,8.33KHz,10KHz,12.5KHz,20KHz, 25KHz,30KHz,50KHz Operating Voltage:13.8V DC ± 15% Squelch:Carrier/CTCSS/DCS Frequency Stability:±5ppm Operating Temperature:-20℃~+60℃ Dimensions(W*H*D)112(W)*30(H)*14.2(L)mm Weight:About 0.51Kg Specifications Receiver Receiver:(ETSI EN 300086 standard testing) Sensitivity(12dB Sinad): Wide band: ≤ 0.25μV Narrow band:≤ 0.35μV Adjacent Channel Selectivity: Wide band: ≥60dB Narrow band:≥60dB Audio Response Wide band: +1～-3dB(0.3～3KHz) Narrow band:+1～-3dB(0.3～2.55KHz) Hum&Noise :Wide band:≥45dB Narrow band:≥40dB Audio distortion:≤5% Audio power output:>2W@8Ω Specifications Transmitter Transmitter:(ETSI EN 300086 standard testing) Power Output: Wide band:25W/15W/5W Narrow band:25W/15W/5W Modulation:Wide band:16KΦF3E Narrow band:11KΦF3E Adjacent Channel Power:Wide band:≥70dB Narrow band:≥60dB Hum&Noise:Wide band:≥40dB Narrow band:≥36dB Spurious Emission:Wide band:≥60dB Narrow band: ≥60dB Audio Response:+1～-3dB(0.3～3KHz) Narrow band:+1～-3dB(0.3～2.55KHz) Audio Distortion:≤5% ACCESSORIES inlcuded Transceiver *1 unit Microphone *1 unit Mounting Bracket *1 piece Screws *2 pieces Pads *2 pieces Adjusting Screws *2 pieces Microphone Hanger *1 piece Fuse(10A 250V) DC power cable with fuse holder *1 piece See More

Características

• AnyTone AT-778UV Ham Radio adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation.This Mobile Transceiver radio has LCD brightless control and louder speaker inside microphone.This Mobile Radio is also with CTCSS/DCS Scan function.
• AnyTone AT-778UV Mobile Radio is complied with Federal Communications Commission (FCC) regulations. complies with Part 15B and Part 97 of FCC rule, FCC ID is T4K-778UV. Receiver Frequency Range: VHF:136-174MHz UHF:400-490MHz. Transmitter Frequency Range 144-148/420-450MHZ
• 25W/15W/5W DualBand VHF/UHF Mobile Radio Transceiver! 180 degree rotatable TFT LCD displayFull alloy body for heat radiation. It is with VOX Function too.
• Narrow Band compliant,Lighted Keypad mic, Built-in Speakers in both Radio & Mic,Built-In cooling Fan,DC power cable with fuse holder & More!!Single call, group call, selective call and emergency call are all available.
• Please download the Programming Software from support in AnyTone website.You can find the AnyTone website address in the user's manual.
