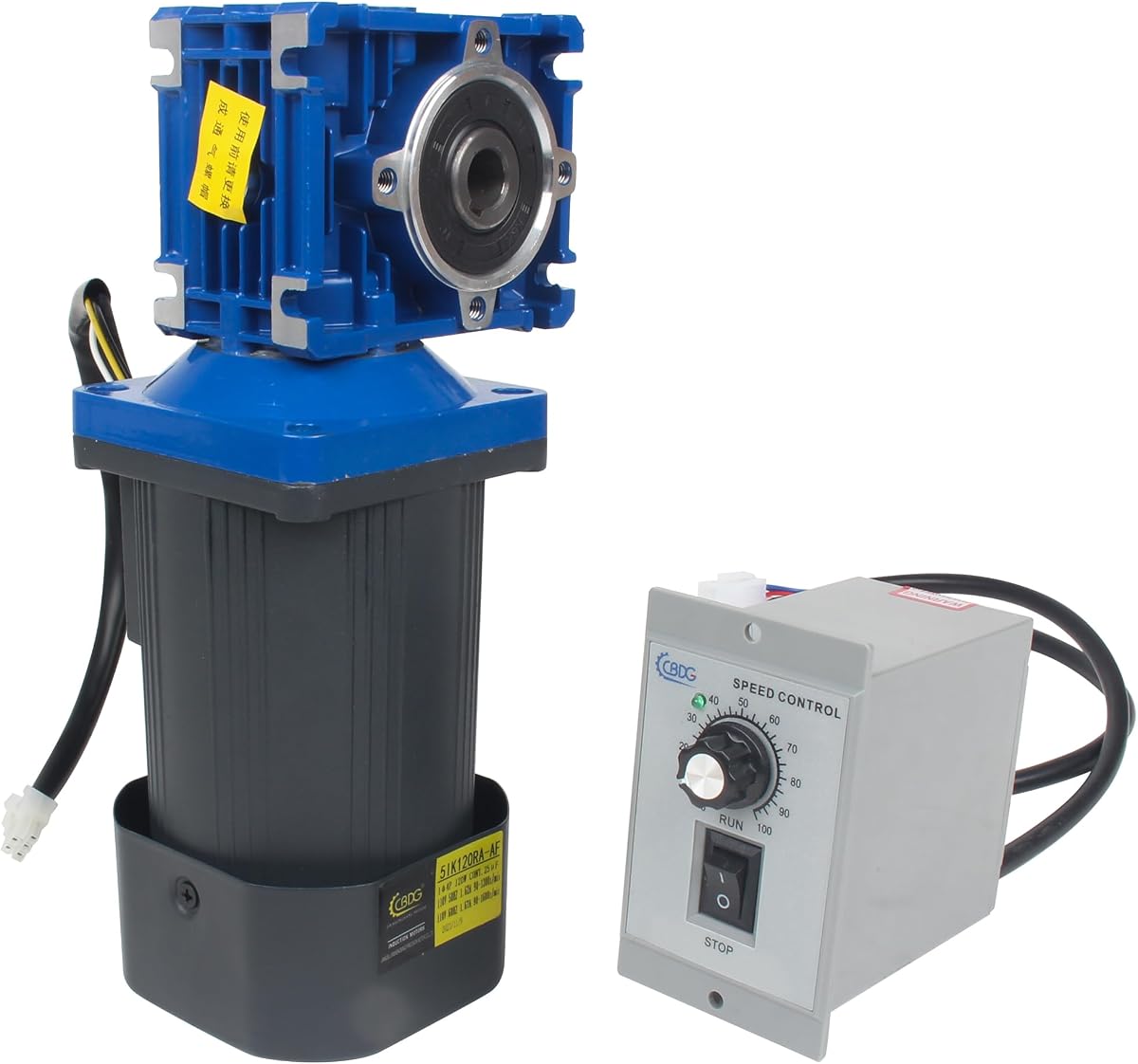

CNCTOPBAOS 120W Gear Motor NMRV30 Worm Gearbox 10:1 10K w/Speed Governor | 90-1600RPM Adjustable Speed, CW/CCW, 110V AC Electric Gear Motor, Reducer Ratio 10:1, 4.4N.m Rated Torque, 14mm Output Shaft

Descripción

Product description Package included: 1x 120W speed adjustable motor 110V1x Speed Governor Controller1x NMRV30 Worm gearbox reducer ratio 10:1 Power 120W Voltage 110VAC Speed 50Hz, 90-1300RPM; 60Hz, 90-1600RPM Reduction ratio 10:1(10K) Torque 4.4N.m Motor Material Alloy Aluminum, Copper, Alloy Steel, Steel Sheet, Iron, Aluminum Reducer Material Copper, Alloy Aluminum, Alloy Steel, Lubricating Grease Shaft Bore Diameter 14mm/0.55in Motor Wire Length 30cm/11.8in Governor Wire Length 68cm/26.77in Applications Widely used in industrial machinery, packaging industry, printing, textile, dyeing, robotics, chemical industry, food industry and other engineering machinery, as well as advertising, office, petrochemical, instrumentation, stage lighting, transmission, automated warehouses and other equipment. Matters needing attention A. Please follow the original wiring method and do not make any arbitrary modifications. B. When using, please adjust the external speed knob to 0 first to avoid generating instantaneous high current and causing damage. C. This product series adopts generator feedback voltage control. If other motors are used, the feedback voltage of the generator needs to be adjusted. D. To change the direction of motor operation, simply replace the jumper on the back of the controller and the wiring base. 1).If COM and CW are short circuited, the motor will rotate clockwise. 2).If COM and CCW are short circuited,the motor will operate in reverse and the timer will rotate. When changing direction, it is necessary to wait for the motor to stop running before operating. E. Action switch only used to suppresses the action or stop of the motor, it is not used in the middle section of the power supply F. Please turn off the power if not in use for a long time. See More

Características

• Specifications: Power:120W; Rated Voltage:110V AC; Speed:90-1300rpm 110V/50HZ / 90-1600rpm 110/60HZ; Reduction Ratio:1:10 10K; Torque:4.4N.m; Output Shaft diameter:14 mm/0.55 inch; Worm gearbox Model: NMRV30
• High Quality and Durable: The gear reduction motor is made of high-strength alloy die-casting,with a high-quality alloy steel casing,high hardness,high rigidity,and long service life; Adopting thick all copper coils, with low heat generation, good electrical performance, more stable and smooth motor power output, and a lifespan 10 times that of ordinary coils
• Speed Control Knob: The speed controller has multiple optional speeds and high torques, and can be continuously adjusted according to different products to achieve the desired effect.You can control the speed of the motor by gently twisting it.Moreover,there is a speed scale to facilitate you to adjust it to the right speed
• Metal gears and Ball bearings: Using metal gears for greater wear resistance, the gears are made of 40CR steel and undergo high-frequency quenching and nitriding to make them more beautiful and durable; Adopting high-quality full ball bearings, high-strength bearings can withstand larger load rates
• Widely applications: Widely used in industrial machinery, packaging industry, printing, textile, dyeing, robotics, chemical industry, food industry and other engineering machinery, as well as advertising, office, petrochemical, instrumentation, stage lighting, transmission, automated warehouses and other equipment
