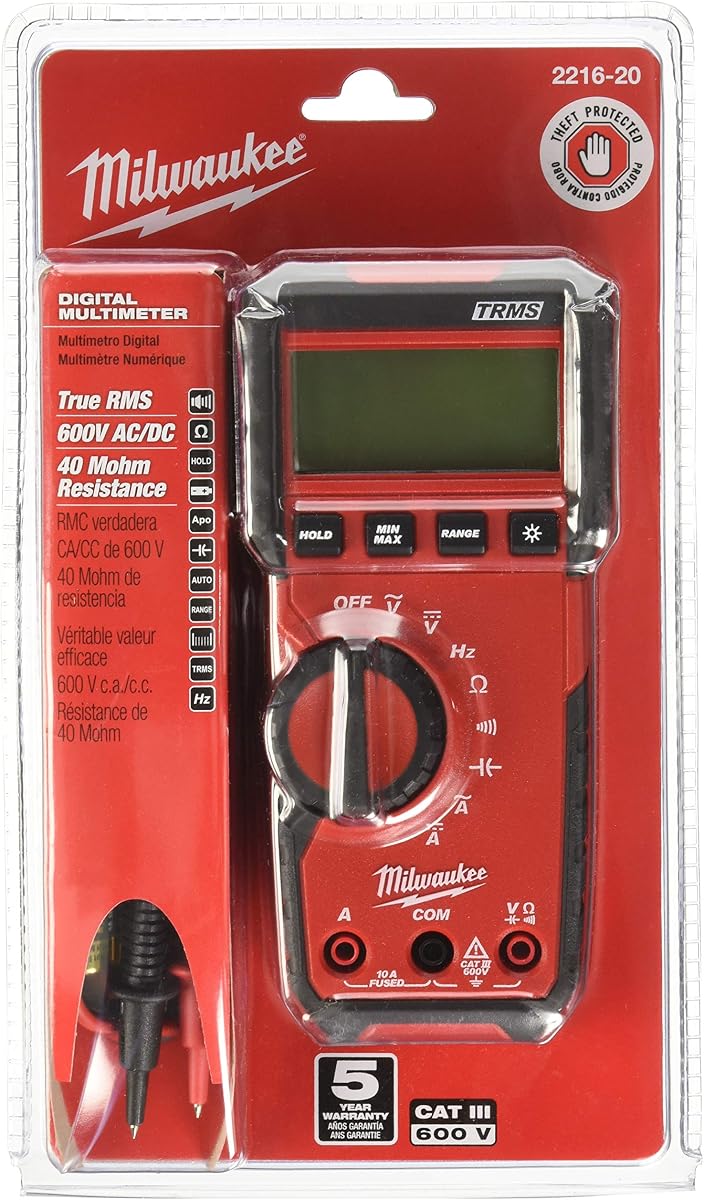

Digital Multimeter,600V,10A,40 MOhms (2216-20)

Descripción

Product Description Digital Multimeter, Full Size - Basic Features, 9999 Instrument Counts, Basic DC Accuracy +/-0.05 Percent of Reading +2 Digits, CAT III 600V, Max. AC Volts 600, Max. DC Volts 600, Max. AC Amps 10, Max. DC Amps 10, Audible Continuity Yes, Max. Ohms 40 megohm, Instrument Frequency Counter Range 10 Hz to 50 kHz, Capacitance Range 10 pF to 1000 uF, Temp. Range -40 Degrees to 752 Degrees F, Display Backlit Black On White LCD, Bar Graph Yes, Calibration Certificate Included No Heavy duty True-RMS meter for professional residential, commercial and industrial applications. The perfect tool for the professional commercial or industrial electrician; includes the features that are needed to get the job done in the field, on-site or in the plant. Milwaukee 2216-20 Digital Multimeter features: True RMS measurement to accurately measure all applications; CATIII 600V for increased safety in demanding electrical environments; AC voltage range of 6 millivolts to 600 volts; DC voltage range of 600 millivolts to 600 volts DC; Resistance measurement from 600 ohms to 40 Mohm; frequency measurement from 10Hz to 50 kilohertz; detects continuity at less than 30 ohms; Current measurement to 10amps AC/DC; hold function, min/max function and digital bar graph readout; black on white display and backlight for easier reading; rugged over-molding for improved durability and user grip; proprietary rail system for mounting accessories; includes one 1 test lead set, two 2 AA batteries, and manual; covered by 5 year warranty. From the Manufacturer Heavy duty True-RMS meter for professional residential, commercial and industrial applications. The perfect tool for the professional commercial or industrial electrician; includes the features that are needed to get the job done in the field, on-site or in the plant. Milwaukee 2216-20 Digital Multimeter features: True RMS measurement to accurately measure all applications; CATIII 600V for increased safety in demanding electrical environments; AC voltage range of 6 millivolts to 600 volts; DC voltage range of 600 millivolts to 600 volts DC; Resistance measurement from 600 ohms to 40 Mohm; frequency measurement from 10Hz to 50 kilohertz; detects continuity at less than 30 ohms; Current measurement to 10amps AC/DC; hold function, min/max function and digital bar graph readout; black on white display and backlight for easier reading; rugged over-molding for improved durability and user grip; proprietary rail system for mounting accessories; includes one (1) test lead set, two (2) AA batteries, and manual; covered by 5 year warranty.

Características

• Test Instruments
• Fabricante: Milwaukee
• Country of manufacture: Taiwan
• Voltage Range: 6mV to 600V AC/600mV to 600V DC; Safety Category Rating: CAT III 600V; AC Amps: 0.001-10.00A; uA DC: No
• DC Amps: 0.001-10.00A; AC Volts: 6.00mV,600V; DC Volts: 6.00mV,600V; Frequency: Yes; Lo-Z: No; Hz (Amps or Volts): 9.999Hz-50.00kHZ
• mV DC: Same as VDC (no switch function); Ohms: 600.0Ohm-40.00MOhm; Auto Calibration: N0-Recommend sending in for calibration service once every year; MIN/MAX/AVG/DIF: MIN/MAX; Continuity: Yes <30 Ohms; Capacitance: 0.1-1000uF
• Backlight: Yes; Hold: Yes; MIN/MAX: Yes; Bargraph: Yes; Display: Black on White Display; Rugged Overmold: Yes; Switch Type: Dial; Accessory Attachment: Proprietary rail system; NCVD, Magnet; Battery Alkaline
• Includes: 2216-20 Digital Multimeter, One (1) electrical test lead set, Two (2) AA batteries, Manual
