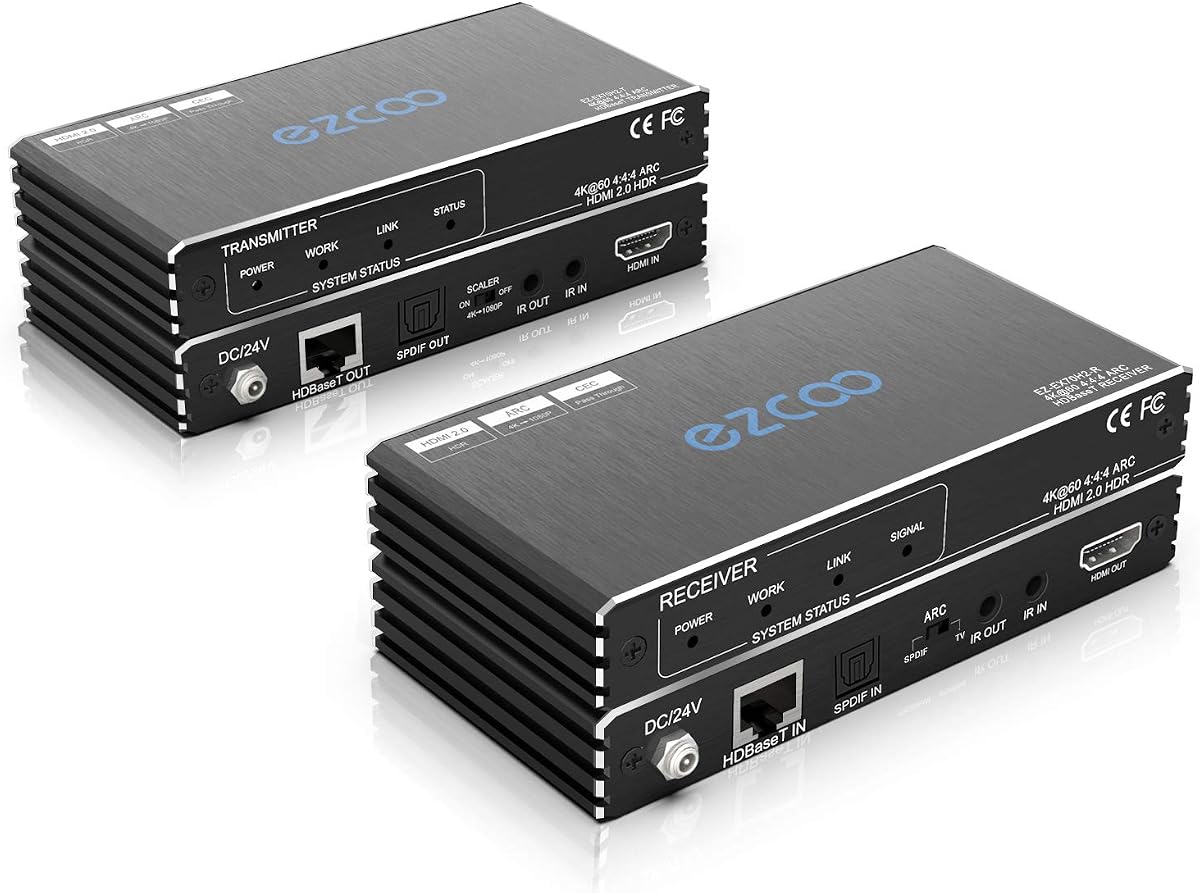

HDBaseT HDMI ARC Extender 4K 60Hz HDR10 18Gbps - 230ft 1080P, 130ft 4K HDMI2.0 HDCP2.2 - Cat5e/Cat6, SPDIF Toslink, Bi-Directional PoE+IR+CEC, DTS:X, Down-Scale, Slim Case EX70H2

Descripción

Product description EX70H2 HDBaseT HDMI ARC Extender supports 18Gbps 4K 60Hz 4:4:4 8-bit, HDR 10, HDCP 2.2 with SPDIF 5.1CH ARC (Audio Return Channel) Extend uncompressed HDMI 2.0 4K 60Hz UHD video audio up to 130ft (40m), OR 1080P to 230ft (70m) over a single Cat5e/Cat6a/Cat7 cable.Bi-directional IR, power (PoE) and CEC control.Set ARC on Extender Receiver (TV ARC or SPDIF). Switch to TV mode, use TV HDMI ARC port.If TV does not support ARC, please switch to SPDIF mode on Extender Receiver, then, Extender transmit 5.1ch audio via SPDIF port to AVR.HDMI Output can down-scale 4K HDMI source to 1080P TV.When play 4K source to 4K TV, please turn OFF SCALER on Extender Transmitter. Package Contents 1x HDMI Extender Transmitter 1x HDMI Extender Receiver 1x Power Adapter 1x IR Emitter 1x IR Receiver 4x Mounting Ear 1x User Manual 2x Reusable Cable Tie Video: HDMI 2.0 4K 60Hz YUV 4:4:4, HDR 10, HDCP 2.2, 1080p @120Hz/60Hz 3D, 3840x2160 @60Hz, 1440p@60Hz Audio: D-o-l-b-y Atmos, DTS:X, Dolby True HD, DTS-HD Master, LPCM 2.1/ 5.1/ 7.1CH pass through Supports CEC control. How to set extender if TV supports ARC ? HDMI ARC Extender transmit HDMI 4K 60Hz up to 130ft (40m) , 1080P 60Hz to 230ft (70m) by Ethernet Cat5e/6a/7 cable with zero latency. IF TV supports ARC, please Turn on ARC at Extender Receiver TV mode, connect HDMI Extender Output to TV HDMI ARC port and AVR ARC port. ARC supports 5.1ch audio maximum, but not ATMOS 7.1ch, please ensure HDMI source, TV, AVR support 5.1ch firstly. How to set extender if TV does not support ARC ? IF TV does not support ARC, please connect TV SPDIF to Receiver SPDIF IN, and Transmitter SPDIF OUT to AVR by SPDIF cable. ARC and SPDIF supports 5.1ch audio maximum, but not ATMOS 7.1ch. How to connect IR cables? How does PoE work ? Two way IR: Either control TV at DVD end, or controls DVD at TV end via IR remote Connect IR Emitter to TX IR OUT ; IR Receiver to RX IR IN Put IR Emitter near DVD; IR Receiver near TV Two way PoE: One power adapter powers on TX or RX, either TX or RX can power on each other HDMI Input cable: <8m AWG26 HDMI2.0 cable at 4K30Hz; <3m HDMI2.0 cable at 4K60Hz HDMI Output cable: <8m AWG26 HDMI2.0 cable at 4K30Hz; <5m HDMI 2.0 cable at 4K60Hz Mini Slim Design For Concealed Installation Smaller than Iphone , 0.7 inch thickness, easy to hide behind the TV. All interfaces is at one side, easy to wire trimming. EX70H2 ARC 4K 60Hz 4:4:4 40m EX70H2A EDID 2K/4K/COPY 4K 60Hz 4:4:4 40m EX70H2L 4K 60Hz 4:4:4 40m Value for Money Add to Cart Buying Options Buying Options Customer Reviews 4.2 out of 5 stars 57 2.9 out of 5 stars 24 4.4 out of 5 stars 52 Price $235.99$235.99 — no data — no data HDMI 2.0 HDCP 2.2 ✓ ✓ ✓ 4K 60Hz 4:4:4 8-bit, HDR10 ✓ ✓ ✓ 1080P D-o-l-b-y Vision ✓ ✓ ✓ HDMI Down Scaler ✓ X ✓ 1080P 60Hz to 230ft (70m) ✓ ✓ ✓ 4K 60Hz to 130ft (40m) ✓ ✓ ✓ Bi-directional PoE+IR+RS232 Bi-directional PoE+IR ✓ Bi-directional PoE+IR CEC ✓ ✓ ✓ ARC (audio return channel) ✓ X X The Slimmest Design, Mini size ✓ ✓ ✓

Características

• HDBaseT HDMI ARC EXTENDER 4K 60HZ 18Gbps - Uncompressed 4K60Hz 4:4:4 (8bit) up to 40m(130ft) or 70m (230ft) over Cat5e Cat6 Cat7 cable. Supports D-o-l-b-y TrueHD, DTS-HD Master, DTS: X, PCM7.1 audio. --- Turn OFF SCALER if play 4K TV. To get 4K HQ picture, Pls set Source to 4K, Power on 4K TV firstly, then connect HDBaseT Extender TX RX.
• ARC USAGE - Set ARC on Extender Receiver (TV ARC or SPDIF) --- Switch to TV mode, turn on TV ARC function, connect HDMI OUT to TV ARC port and AVR ARC port --- ARC support 5.1ch audio only, NOT ATMOS, pls ensure HDMI source, TV, AVR support 5.1ch firstly. EZCOO HDBaseT HDMI ARC extender just pass through audio, not amplify. --- If TV no ARC, pls switch to SPDIF mode, using optical cable return audio to AVR. Pls check left side connection photo well. NO eARC NO ATMOS
• TWO-SWAY PoE IR Extend - Only one power adapter is required by either extender transmitter or receiver. Bi-directional IR control both HDMI source, display. Supports CEC. Please ensure TV support CEC firstly. Connect TV CEC/ ARC HDMI port. NOTE: Ethernet port takes power by PoE, do not connect router.
• HIGH COMPATIBILITY - ezcoo HDBaseT HDMI extender ARC ethernet works well with HDMI 2.0 HDCP 2.2 devices, for Roku 4, Amazon Fire TV, Fire Stick, Xbox one S, Apple TV,PS3 PS4 Pro,Blu-ray DVD, cable satellite box, PC laptop, HD camera, HD DVR.
• SAFETY - Built-in ESD protect audio return channel HDMI BALUN 4K for safety usage. Ultra slim 0.7 inch case low heat, stable performance.
