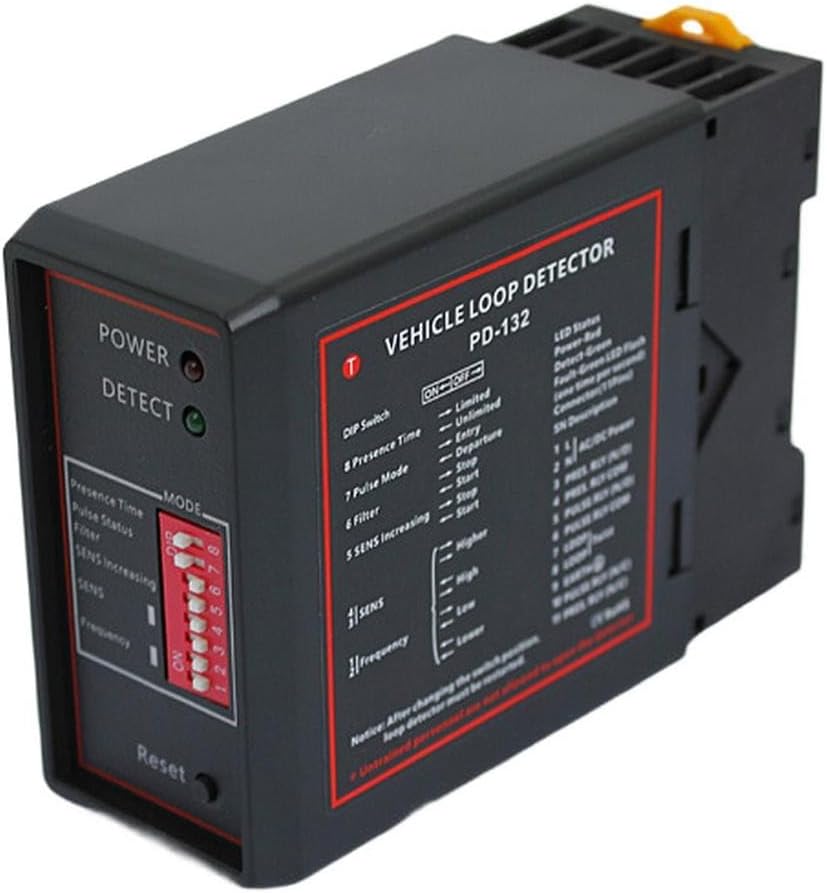

Inductive Loop Detector DP132 Single Channel Vehicle Sensing Module, DC 12V/24V AC/DC Adjustable Sensitivity 4 Levels, For Automatic Gate And Parking for ACCESS Control Systems(12V)

Descripción

Features:The detector should be mounted in a convenient, weatherproof location as close to the circuit as possible.The mounting location should be away from heat sources; at least 10 mm should be maintained from other equipment (it should not be mounted close to the wall of the junction box).Proper loop configuration and detector mounting will for ensure successful operation of the inductive loop detection system.Several important parameters of the loop include: loop shape, size, number of turns, and mounting way.Operation and IndicationsDuring the tuning of the detector, both the green-channel LED and the power LED will illuminate. They will remain on for approximately 2 seconds, then the green LED will turn off. If a fault occurs in the loop, LED will illuminate and flash to indicate the fault.If the fault has self-corrected, the detector will continue to operate. The green-channel LED will also illuminate whenever a vehicle is detected passing through the inductive loop.The power LED on the top of the device will remain on to indicate that the device is powered.[ALL-IN-ONE SOLUTION] This product comes with 1 Inductive Loop Detector, perfect for enhancing door and parking for ACCESS control systems.[ENHANCED VEHICLE SENSING] With 4 adjustable sensitivity levels, this detector provides precise detection capabilities for various vehicle types and sizes.[SIMPLE MOUNTING OPTIONS] Designed for easy installation, maintain a distance of at least 10 mm from other equipment to optimal performance.[CLEAR OPERATIONAL ] The intuitive LED indicators provide on power and vehicle detection status, allowing for quick troubleshooting. Specification:Part Name: Inductive Loop DetectorMaterial: ABSColor: Blacksize: 78x40x108 mm (L x W x H)Supply Voltage: 230 for VAC, 115 for VAC, 24 VDC/AC, 12 VDC/AC (see label on detector)AC Voltage Tolerance: +10% / -15%DC Voltage Tolerance: ±15%Power Consumption: 4.5 VAOutput Relay: 240V/5AOperating Temperature: -20°C to +65°CStorage Temperature: -40°C to +85°C for frequency Range: 20 kHz to 170 kHzReaction Time: 10 for msSignal Hold Time: Infinite / Limited to 10 minutes when loop is permanently coveredSensitivity: 4 levels adjustableLoop Inductance: Total loop plus connecting wires: 50 μH to 1000 μH.for Ideal value is 100 μH to 300 μHLoop connection wiring: Maximum length 20 meters, at least 20 times per meterPackage content:1*Inductive loop detector

Características

• Single Channel Sensing Capability: Designed for DC12V/24V systems, the PD-132 inductive loop detector offers precise vehicle detection for automatic doors and parking for ACCESS, improving traffic flow and operational efficiency.
• Quick Vehicle Detection: Reaction time as fast as 10ms allows response when a vehicle passes the loop, reducing delays and enhancing safety in busy for ACCESS points.
• Adjustable Sensitivity Levels: Four selectable sensitivity settings insure reliable performance for ACROSS different installations, accommodating loop inductance from 50 μH to 1000 μH with perfect range of 100 μH to 300 μH.
• Robust ABS Construction: Compact black housing (78x40x108 mm) withstands temperatures from -20°C to +65°C, making it suitable for outdoor or industrial environments without compromising consistency.
• Clear LED Indicators: Red power LED confirms operational status, while green channel LED signals active vehicle detection or loop faults, aiding quick diagnostics and forestall‌ unnecessary downtime.

Especificaciones
