Launch X-431 Oscilloscope O2-2 Scopebox Analizador | 4 Channels Digital Scopebox Tester USB Port

Descripción

LAUNCH X-431 Oscilloscope O2-2 Scopebox Analizador 4 Channels Digital Scopebox Tester USB Port.Function: Provides all kinds of the testing applications on the automotive parts (including circuits, sensors, actuators, ignition etc.).Menu Includes the following options: Measure: It provides 23 parametric measurement items. Save: It allows you to save the current waveform as a reference waveform for future comparison. Display: Sets the display mode of the waveform. UserSetting: The following items are available: storage depth, factory reset, self-adjust (self-calibration) and save & recovery. About: Displays the detailed information of the app.

Características

• STABLE & DURABLE：This LAUANCH Electrical analyzer (oscilloscope) is stable, durable and portable. X431 Oscilloscope is designed to analyzes data for all kinds of the testing applications on the automotive parts (including circuits, sensors,actuators, ignition etc.). to resolve complex electrical faults.
• THE INTRODUCTION：Number of channels: 4;Bandwidth: 100 MHz; Rise time: 3.5 ns (typical); Accuracy: ±3%.;Input Impedance: 1M ±1.5% Input Type: Single-ended BNC connector;Input type: Single-ended BNC connector; Input coupling: DC, AC; Overload protection: ±200V on single input; Time base ranges: 1ns~1ks (1 channel),1ns~1ks (2 channels),1ns~1ks (4 channels); Vertical resolution: 8 bits; Buffer memory: 10M (for 4 channels); Power interface: USB port, DC input port; Data exchange via USB;etc.
• WHAT CAN IT DO FOR YOU?：1.Versatile and easy-to-use add-on module that can detect high-level faults in various electrical components, such as sensors, actuators and circuits. 2. By integrating with the X-431 series scan tools through the O2-2 application, it provides accurate and conclusive diagnostic faults that allow the shop and technician to extend the functionality of their scan tool. 3.Multiple automotive tests including circuits, sensors, actuators, ignition tests and more.
• Fit for Car Diagnostic OBD2 Scanner：LAUNCH X-431 Oscilloscope works for x431 PRO ELITE,X431 Throttle, X431 Pad II AE, X431 Torque, X431 Turbo, X431 PAD V,X431 PAD 7 etc.
• ADVANTAGES: 1.Features the ability to record and play back high-resolution waveform data for future analysis;2.On-click enable function allows users to capture a particular waveform making the process 70% more efficient compared to other oscilloscopes.3.Access 23 automatic measurement variants displayed on one screen for easy switching.4.Ability to enter names and characters directly , this operation streamlines the process and contributes to 90% efficiency.
• ADVANTAGES of O2-2 Scopebox Analizador: 5.Zoom in/out function to review fine details;6.Customizable system settings that can be saved as configuration files for viewing;7.Auto-calibration function allows optimization of the oscilloscope signal path for maximum measurement accuracy;8.Enhanced waveform math operations such as addition, subtraction, multiplication and FFT function for high-level waveform analysis.

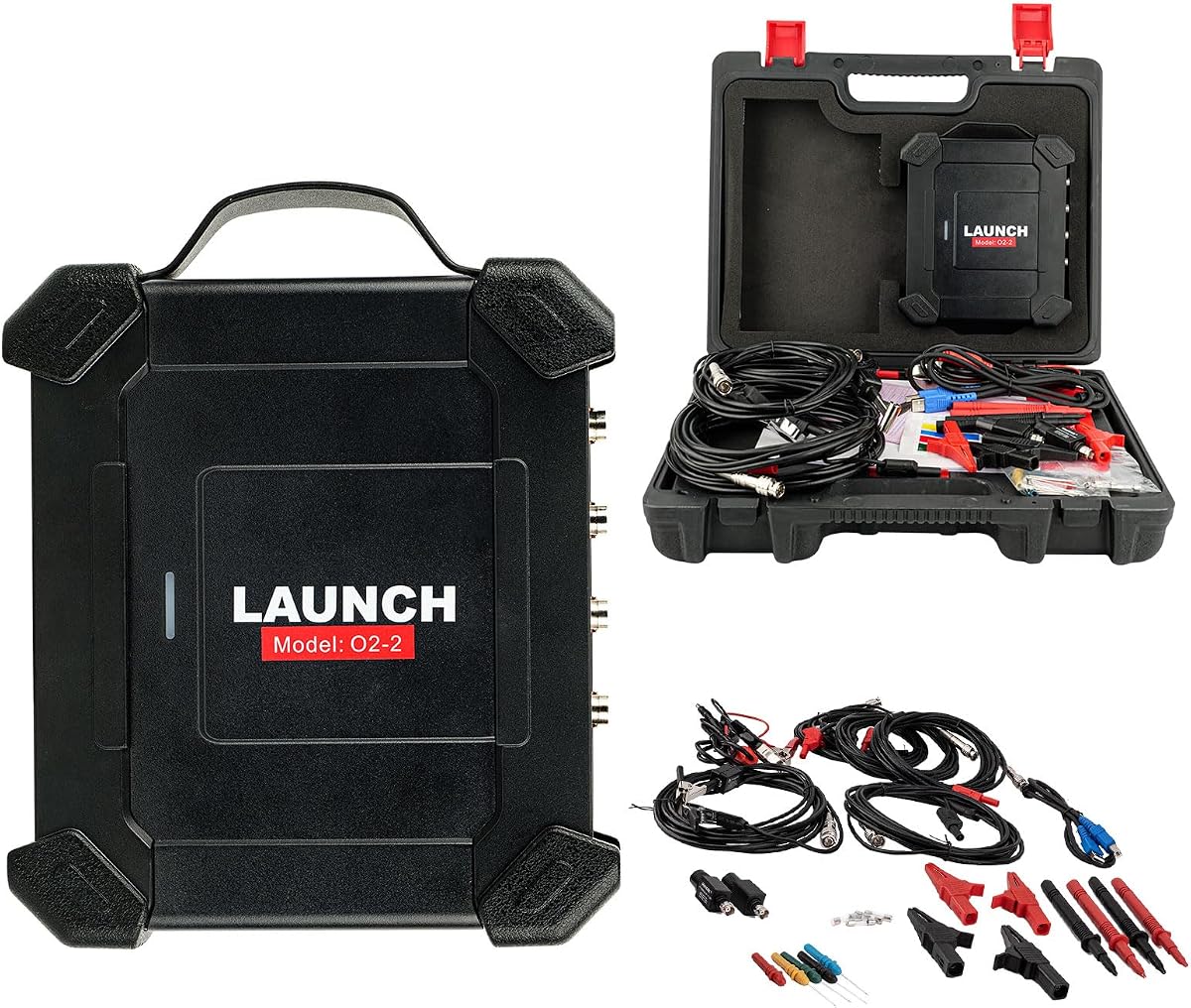

• Package List: Package Included: 1. BNC 4 mm test leads; 2. 20:1 attenuator; 3. Battery clamps cable; 4. Secondary ignition pick-up; 5. Multimeter probes; 6. Crocodile clips; 7. Back Probe Pins Suite; 8. USB Cable (optional); 9. User Manual

Especificaciones
