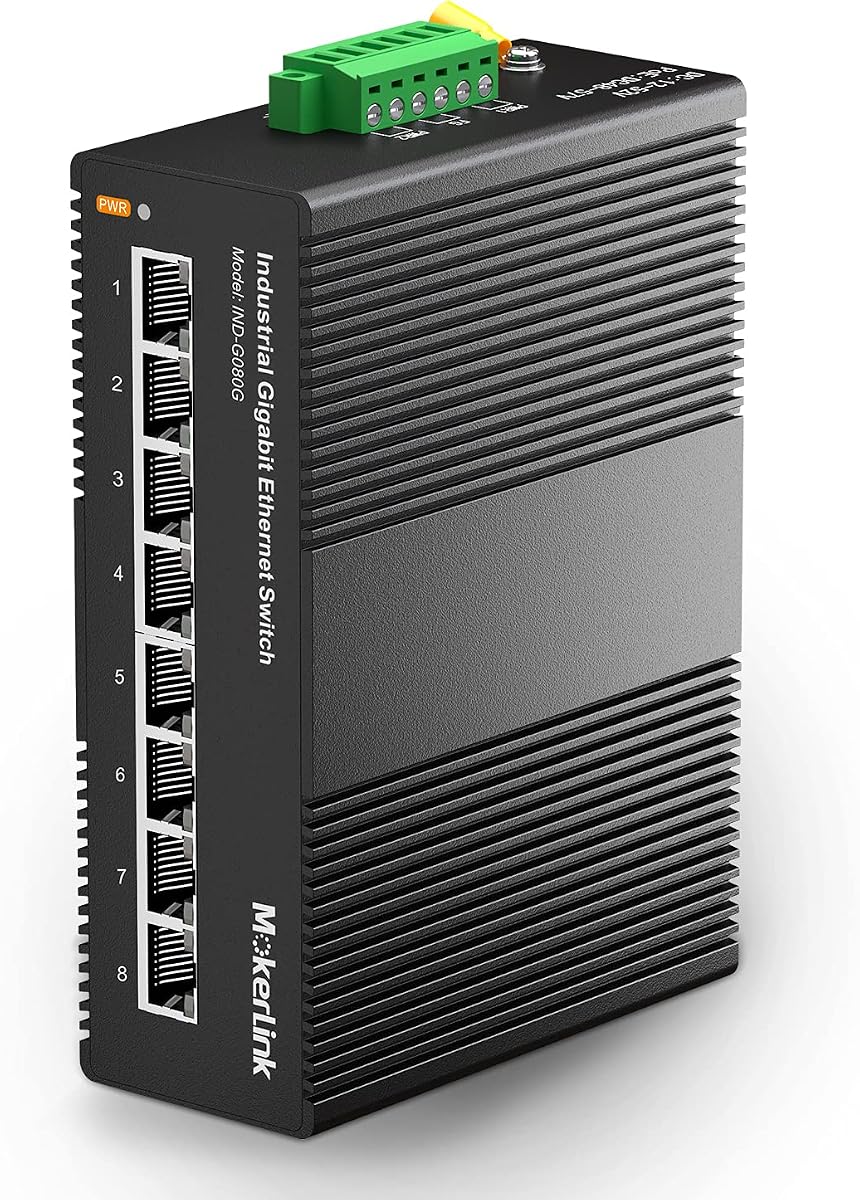

MokerLink 8 Port Gigabit Industrial DIN-Rail Ethernet Switch, 16Gbps Switching Capacity, IP40 Rated Network Switch (-40 to 185°F), with UL Power Supply

Descripción

Product description Frequently Asked Questions Q: Does it include the power supply? A: Yes,It is include one AC adapter. Q: Can I use supplies of differing voltage as the redundant power ? For example, 12v and 24v without unwanted effects or damage? A: Yes, you can use supplies of differing voltages. There will be no ill effects, the switch's internal regulators were designed to handle a wide range of voltage inputs. Q: What temperature range can this device handle? A: The operating temperature is -40～85℃（-40～185°F） Q: Does it come with a small din rail? A: The switch support 35mm din rail ,but the din rail is not included. Q: Does this have any management capability? A: No,This is a unmanaged industrial ethernet switch. Q: Is this unit fanless? A: Yes, the unit is fanless. No noise. Full Gigabit Port The industrial ethernet switch is available with 8x10/100/1000Base T(X) RJ45 Port and 14Gbps exchange capacity,provide enough bandwidth to prevent network bottlenecks. IP40 Protection 8-Port unmanaged industrial ethernet switch adopt with high strength IP40 protective housing, industrial EMC design to increase the reliability of communication network. Wide Temperature Operation MokerLink industrial ethernet switches are designed with wide temperature support to ensure operation reliability in extreme temperatures ranging from -40ºC to 85ºC. Lightning Protection The industrial switch's 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system. Redundant Power Supply This industrial ethernet switch support dual redundant power supply(included 1x24W AC adapter).Each of the power supplies will have the capacity to run the device on its own. This makes sure that the switch could operate normally even if one power supply fails. DIN Rail Mountable Ultra Compact industrial Ethernet switche can be mounted on a 35mm din rail.Save time and space. Compact Size MokerLink industrial ethernet switches are housed in a compact sturdy metal case.you can mount it on the desktop or cabinet. Metal Case & Fanless The industrial ethernet switch features with aluminum case and fanless design that ensures noiseless operation and greater reliability over time. Industrial-grade Electronic Components The industrial ethernet switch adopt with high quality of electronic components.Make sure it can be widely used in various industrial scenarios. WHAT YOU GET: 1 x 8-Port Industrial Ethernet Switch1 x 24W AC Adapter1 x 1 Meter Power Cable1 x User Manual 8-Port Gigabit Industrial Ethernet Switch Reliable and Convenient Industrial Network Solution MokerLink 8-port 10M/100M/1000M ethernet ports industrial-grade ethernet switch, supporting 8-port 10Base-T/100Base-T/1000Base-TX. The installation characteristics of the guide rail, wide temperature operation, IP40 protection grade shell and LED indicator, which all make it a plug-and-play industrial-grade equipment, providing reliable and convenient the solution for users' networking of Ethernet equipment. 8x10/100/1000Base T(X) RJ45 Port,Support full-duplex or half-duplex mode, with auto-negotiation capability Green energy saving, Use low-power consumption CPU Operating temperature: -40～85℃（-40～185°F） DC 12V-52V provides reverse connection protection and 4A overcurrent protection The mean time between failure is more than 300,000 hours Product Name 8-port 10M/100M/1000M industrial ethernet switch Product Model IND-G080G Port 8x10/100/1000Base-T RJ45 port (automatic detection Full/half duplex MDI/MDI-X adaptive) Network protocol IEEE802.3-CSMA/CD;IEEE802.3i-10Base-T;IEEE802.3u-100Base-TX/FX;IEEE802.3x-flow control; - 1000Base-X;IEEE802.3ab - 1000Base-T; Operating temperature -40～85℃（-40～185°F） Input voltage DC12-52V (redundant backup of dual power supply ) Access terminal Phoenix terminal Shell IP40 protection grade, metal shell Installation DIN clips rail type Radiating method Natural cooling, No-fan Weight 0.64Kg(1.41 lb) Size 143 x 101 x 44mm (L x W x H) IEC(EN)61000-4-5(Surge) Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV Exchange capacity 16Gbps Protection Grade IP40 Between failure 300,000 Hours 5-Port Gigabit Industrial Ethernet Switch 5-Port Gigabit PoE+ Industrial Ethernet Switch 8-Port Gigabit Industrial Ethernet Switch 10-Port 100Mbps PoE Switch 18-Port Gigabit PoE Switch 26-Port 100Mbps PoE Switch Add to Cart Buying Options Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.4 out of 5 stars 105 4.1 out of 5 stars 66 4.4 out of 5 stars 105 4.5 out of 5 stars 823 4.5 out of 5 stars 823 4.3 out of 5 stars 180 Price $46.99$46.99 — no data $59.68$59.68 $52.99$52.99 $119.99$119.99 $129.99$129.99 Ethernet Port 4xGigabit RJ45 Ports+1xGigabit UpLink Port 4xGigabit PoE Ports+1xGigabit UpLink Port 8xGigabit RJ45 Ports 8x100Mbps PoE Ports+2xGigabit UpLink Ports 16xGigabit PoE Ports+2xGigabit UpLink Ports 24x100Mbps PoE Ports+2xGigabit UpLink Ports Support PoE No ✓ No ✓ ✓

Características

• This network switch include 8 gigabit ethernet ports, all ports support 10/100/1000Mbps rate, switching capacity up to 16Gbps, support automatic detection, full/half duplex MDI/MDI-X adaptive.
• The shell is made of industrial-grade aluminum alloy, which is more sturdy, surface groove design, better heat dissipation, integrated DIN-rail mount kit, installation and disassembly are very simple
• IP40 protection grade, working temperature -40~75°C(-40~185°F), super robustness, anti-lightning, anti-static and anti-overload protection, adapt to various harsh environments
• Dual power supply, automatic fault switching, anti-reverse connection does not damage the equipment, higher reliability, equipped with one UL-certified power adapter, can be used without additional purchase
• Support auto-negotiation, plug and play, no configuration needed, low-power consumption CPU, no fan quiet operation, green energy saving, suitable for various networks, such as home office, computer room, warehouse, factory, compact control box and other industrial scenarios with Ethernet access
