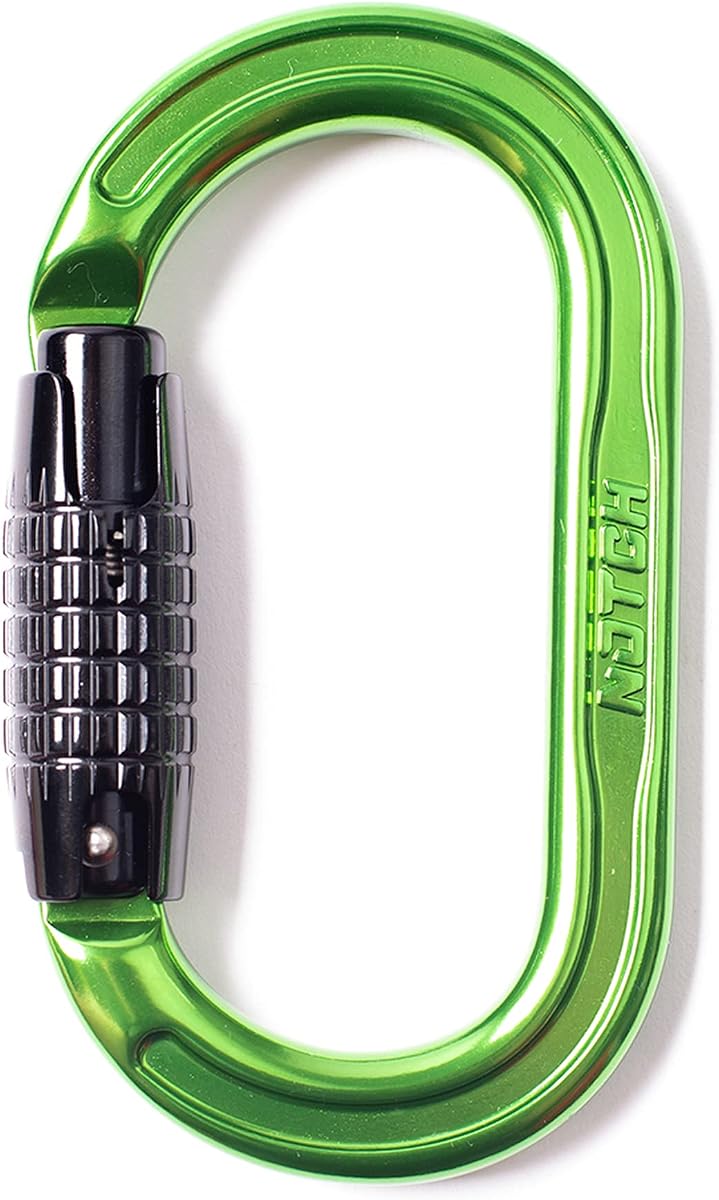

Notch Absolute Oval Aluminum Carabiner (54441)

Descripción

Product description NOTCH CARABINERS ARE A SERIES OF AUTO-LOCKING CARABINERS FOR ARBORISTS LOOKING FOR SOMETHING BEEFIER. A GREAT BALANCE BETWEEN A SUPER-STRONG GATE AND A LARGE GATE OPENING. LIGHTWEIGHT WITH A HIGH WORKING LOAD LIMIT. ALUMINUM 7075 ANODIZED IN CUSTOM GREEN COLOR WITH BLACK GATE. HIGH WORKING LOAD LIMIT. CE CERTIFIED, SERIALIZED WITH BATCH NUMBERS AND PROOF TESTED. KEY LOCK GATE NOSE WITH DOUBLE LOCKING TWIST LOCK GATE = “TRIPLE ACTION" Notch Offset Oval 3600lb Gate Carabiner (41458) Notch D 3600 lb Gate Carabiner (41459) Notch HMS Aluminum Carabiner (36679) Notch Oval Aluminum Carabiner (36677) Notch Absolute Oval Aluminum Carabiner (54441) Customer Reviews 4.5 out of 5 stars 9 5.0 out of 5 stars 7 — 4.5 out of 5 stars 40 4.7 out of 5 stars 70 Length 4.9 in. 4.6 in. 4.4 in. 4.3 in. 4.3 in. Width 2.8 in. 2.8 in. 2.9 in. 2.4 in. 2.4 in. Gate Opening 0.79 in. (20mm) 0.98 in. (25mm) .88 in. (22mm) 0.75 in. (19mm) 0.75 in. (19mm) Tensile Strength 6,519 lbs. (29kN) 6,744 lbs. (30kN) 5,385 lbs. (24kN) 5,170 lbs. (23kN) 5,620 lbs. 25(kN) Working Load Limit 651 lbs. (2.9kN) 674 lbs. (3kN) 539 lbs. (2.4kN) 517 lbs. (2.3kN) 562 lbs. (2.5kN) Certifications ANSI Z359.12, CSA Z259.12 ANSI Z359.12 CSA Z259.12 ANSI Z133; CE EN362:2004/B ANSI Z133; CE EN362:2004/B ANSI Z133, CE EN362:2004/B Weight 4.6 oz. (131g) 4.8 oz. (136g) 3 oz. (85g) 3 oz. (85g) 2.5 oz. (71g) Material 7075 Aluminum 7075 Aluminum 7075 Aluminum 7075 Aluminum 7075 Aluminum Major Axis Strength 29 kN 30 kN 24 kN 23 kN 25 kN Minor Axis Strength: 16 kN 16 kN 7 kN 7 kN 7 kN

Características

• I-Beam frame design matched with a knurled gate
• Tensile Strength: Major Axis: 25kN, Minor Axis 12kN, MBS: 5,620 lbs. WLL: 562 lbs.
• 3/4" (19mm) Gate Opening
• Height: 4.33" Width: 2.4" Weight: 2.5 oz.
• Meets ANSI Z133 and CE EN362:2004/B standards

Especificaciones
