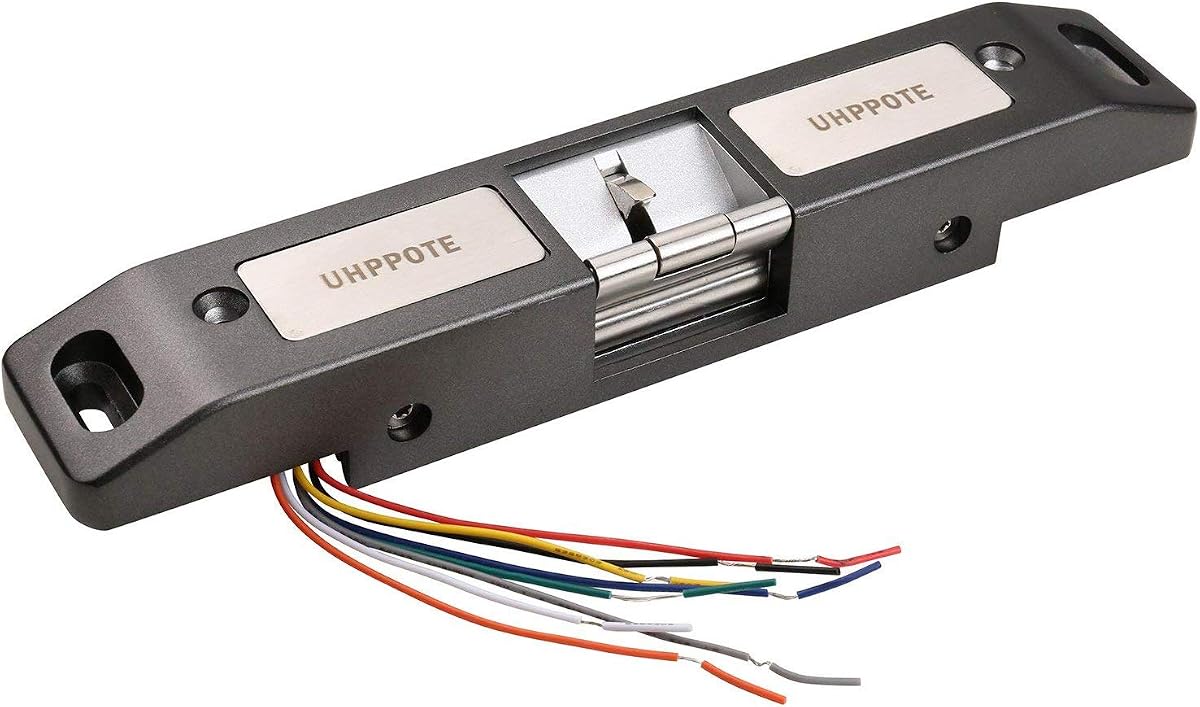

UHHPPOTE Cerradura eléctrica para puerta contra incendios, barra de empuje, salida de emergencia de pánico | Bloqueo de control de acceso 12 V a prueba de fallas/a prueba de fallas ajustable

Descripción

Product description Advantage Surface mountedInternally mounted solenoidField-selectable for fail-safe or fail-secure operationSuitable for fire exit door with Push-rod lockThe operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the doorAccommodates up to 3/4" [19mm] Pullman latchEnhanced stress structure design1000000 solenoid valve special design What's in the Box: 1 x Electric strike lock designed for rim exit devices2 x Mounting Tabs1 x Install kit1 x User manual Installation Surface mountedApplies to all brands of fire push rod lockThis electric Strike is designed for rim exit devices with 3/4" [19mm] Pullman latchbolts.Push panic bar need buy seperately Specifications Working Voltage 12VDC @320mA Holding Force 1100-lbs [500kg] Signal Output Lock Status Output NO/NC/COM Lock Tongue Material 304 Stainless Steel Faceplate Dimensions (LxW) 9-1/16"x1-19/32" (230x40.5mm) Strike Opening 1-37/64"x1-5/32"x15/16" deep (39.9x29.5x24mm deep) Face plate Housing High temperature paint Lock Tongue Surface by coating nickel Special Design Applies to all brands of fire push rod lock Suitable For Supporting rod lock fire door Surface Temperature Ambient temperature + 68℉ (20℃) Suitable Temperature 14℉-131℉ (-10℃~55℃) Operating Humidity 0~90%(non-condensing) Lock Body Material Zinc Alloy Protection Performance With diode surge absorption device Item Weight 1.65-lbs [0.75kg] Operation Mode Adjustable You can set the operation mode Fail Safe or Fail Secure.Loose the screws and tighten it in the other hole.Fail Safe (NC): When power off, the door is in the open status.Fail Secure (NO): When power off, the door is in the closed status.Please check the working mode before install. Attention: For Indoor use OnlyFaceplate Dimensions (LxW): 9-1/16"x1-19/32" (230x40.5mm)Before placing order, please check the size of your door’s frame to avoid wrong purchase.

Características

• ✅ Field-selectable for fail-safe or fail-secure operation.
• ✅ This strikes feature an ultra-compact design with over 1,100-lbs [500kg] of holding force.
• ✅ Suitable for fire exit door with Push-rod lock. The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door.
• ✅ This electric Strike is designed for rim exit devices with 3/4" [19mm] Pullman latchbolts.
• ✅ This electric Strike is designed for rim exit devices with 3/4" [19mm] Pullman latchbolts.

Especificaciones
