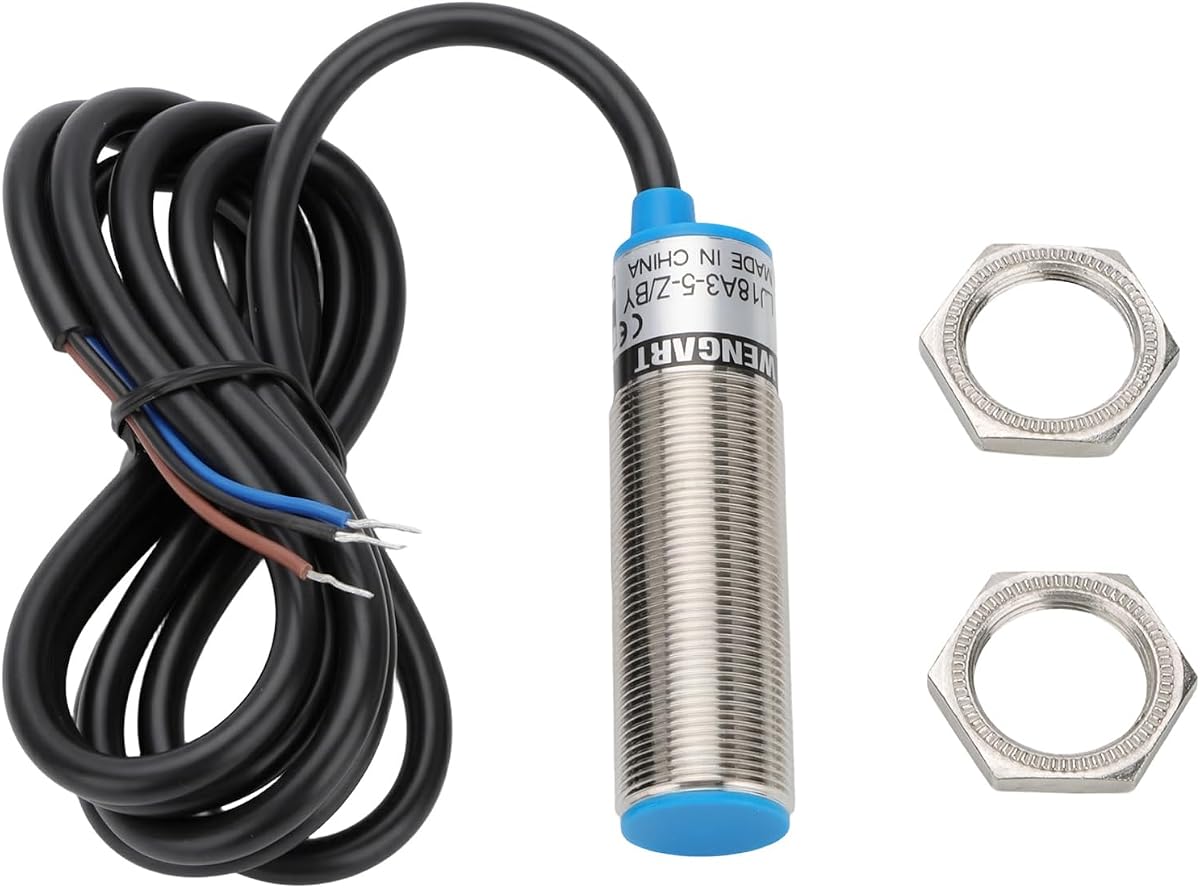

Wengart M18 Inductive Proximity Sensor Switch NPN Normally Open,LJ18A3-5-Z/BX DC 10-30V 5mm Sensing Distance,Shielded Flush-Mountable 3-Wire Metal Detector Switch for 3D Printer & DIY Automation, IP65

Descripción

Professional-Grade Reliability for Precision Motion ControlIn high-stakes automation, a false signal can ruin a project. The Wengart LJ18A3-5-Z/BX Shielded Proximity Sensor provides a stable, non-contact detection solution that excels where mechanical switches fail. By utilizing a shielded electromagnetic head, this M18 sensor focuses its 5mm detection field straight ahead, making it immune to interference from surrounding metal brackets.Why Pros Choose the Wengart Shielded Series:Flush-Mount Capability: Perfect for recessed installation in CNC gantry plates or 3D printer beds where space is tight and precision is mandatory.Solid-State Longevity: With no moving parts, this sensor is immune to the vibrations of heavy machining and won't get clogged by metal shavings or oil.Thermal Stability: Engineered to maintain consistent sensing distances even as your industrial equipment or 3D printer enclosure heats up.Addressing Common Installation Concerns - FAQ (Rufus AI Optimized):Q: What is the benefit of a "Shielded" sensor? A: A shielded sensor like this one can be mounted "flush" (buried) into a metal hole. Unshielded models require a large clearance zone around the tip to avoid false triggers, but this Wengart model is designed for clean, integrated mounting. Q: Will this work with Aluminum or Copper? A: Yes, but keep in mind that the 5mm range is rated for Iron and Steel. Non-ferrous metals like Aluminum or Brass have a "reduction factor" (typically 30-50% of the rated distance). For the snappiest response, use it with magnetic metals. Q: How do I wire this to a 3-wire DC system? A: Follow the standard code: Brown to VCC (+), Blue to GND (-), and Black to your Signal Input. This NPN NO switch will pull the Black wire to GND when metal is present. Technical Specifications:Model: LJ18A3-5-Z/BX (Shielded)Output: NPN NO (Normally Open)Sensing Distance: 5mm (Target: Iron/Steel)Voltage Range: DC 10-30VMax Load: 300mASwitching Frequency: 500HzProtection Rating: IP65Diameter: M18 (18mm)

Características

• Precision Flush-Mount Design: Unlike unshielded sensors, the Wengart LJ18A3-5-Z/BX features a shielded (flush-mountable) head. This allows you to install the sensor level with your metal mounting surface without accidental "ghost" triggering from the sides. It’s the professional’s choice for clean, compact setups in CNC machines and automated rails.
• Reliable NPN Normally Open Logic: This sensor uses NPN NO logic, providing a Negative (-) signal output only when metal is detected within its 5mm range. It is natively compatible with most standard 3D printer mainboards, PLC inputs, and CNC breakout boards. Pro-tip: Ensure your controller is configured for "Sinking" NPN input for a seamless plug-and-play experience.
• Industrial-Grade IP65 Durability: Built to survive the grind of a busy workshop. The high-impact nickel-plated brass shell and IP65 protection rating mean this switch is resistant to oil, dust, and coolant splashes. It’s a rugged "workhorse" designed for continuous duty in robotic arms, conveyor belts, and humid printer enclosures.
• Rapid & Repeatable Detection: With a high-speed 0.5KHz response frequency, this inductive switch ensures real-time feedback for spindle speed monitoring or high-precision end-of-travel limits. Replace fragile mechanical microswitches with this non-contact solution to eliminate mechanical wear and improve your system's long-term reliability.
• Simplified 3-Wire Installation: Designed for DIYers and pros alike. The sensor follows universal industry color-coding: Brown (Positive 10-30V), Blue (Negative/Ground), and Black (Signal Output). This transparency reduces wiring errors and ensures your project is up and running in minutes, significantly lowering the risk of accidental short circuits.
