BigHead WB56X35363 Microwave Mounting Plate/Bracket Assembly Replacement for GE Microwave Oven | Includes Column Level & WB02X35527 Screws | Replaces AP6986668 PS16216996 WB56X10669

Descripción

Product description WB56X35363 Microwave Mounting Plate Assembly Lasting Performance:Stably supports microwaves long-term—no wobble, rattling, or fall risks, even with daily use. Space-Saving Design:Wall-mount design frees countertop space for tools/ingredients. Creates a neat, organized kitchen. Fits for GE (JVM/PVM/CVM/DVM series) WB56X35363 Microwave Mounting Plate Assembly/Bracket Kit The WB56X35363 Mounting Plate Assembly is a premium replacement for GE microwave ovens, engineered to provide secure wall/cabinet mounting. This kit includes one WB56X35363 mounting plate assembly (bracket) and one column level, offering a complete solution for installing your GE microwave without extra accessories. It directly replaces multiple GE part numbers (WB56X35363, AP6986668, PS16216996, WB56X10669, 1167916, AH1021820, EA1021820), ensuring OEM-equivalent performance and durability WB56X35363 Microwave Mount Kit Components 22-Gauge Galvanized Steel Crafted from 22-gauge galvanized steel, this bracket resists warping, bending, and daily wear delivering reliable long-term support for your microwave All-Inclusive Hardware Kit Comes with WB02X35527 screws, nuts, and matching fittings—all parts are precisely sized to fit the WB56X35363 bracket Secure Mounting Holder This auxiliary mounting holder snugly fits both the bracket and wall, locking the assembly in place to add an extra layer of stability Column Level This level easily attaches to the metal bracket—letting you quickly calibrate perfect horizontal alignment, so your microwave stays evenly mounted Designed for Wall/Cabinet Mounting Installation, it’s tailored for securely installing GE microwaves on walls or cabinets (not for fully embedded use). No extra accessories are needed—this one-stop solution fits the installation of mounting plate assembly wb56x35363 Step-by-Step Microwave Mounting Plate Installation Guide for WB56X35363 Step-by-Step Wall Mount Installation Guide for WB56X35363 Tools You’ll Need Electric drill with appropriate drill bits Screwdriver (matches WB02X35527 screw head, if included) Stud finder Pencil The included column level Installation Steps Safety First:Turn off the power supply to your kitchen (and water supply if applicable) before starting. Ensure the area is well-lit and clear of obstacles. Locate Wall Studs:Use a stud finder to identify the wall studs where you’ll mount the bracket. Mark their positions with a pencil—mounting into studs ensures maximum stability. Position the Mounting Plate:Hold the WB56X35363 mounting plate assembly against the wall, aligning it with the stud marks. Place the included magnetic column level on top of the plate to ensure it’s perfectly horizontal. Mark the drill holes with a pencil. Drill Holes & Secure the Plate:Drill holes at the marked positions. If your kit includes WB02X35527 screws, use them to secure the mounting plate to the wall studs. Tighten the screws firmly but avoid over-tightening to prevent damage. Attach the Microwave to the Bracket:Lift your GE microwave and align its mounting slots with the hooks or brackets on the WB56X35363 assembly. Slowly lower the microwave until it locks into place. Final Calibration:Place the magnetic column level on top of the microwave to check for horizontal alignment. If adjustments are needed, gently loosen the relevant screws, realign, and retighten. Test Stability:Gently push and pull the microwave to ensure it’s securely mounted. If it feels stable, restore power and test the microwave’s operation. Note: Always refer to your microwave’s original manual for model-specific instructions. If you’re unsure about any step, consult a professional to avoid injury or damage. Compatibility with GE microwave mounting plate Models Use the Ctrl+F keyboard shortcut to quickly locate your specific model number JVM Series (Standard Wall-Mount Microwaves): Includes models like JVM7195SK5SS, JVM6175EK5ES, JVM7195EK5ES, JVM7195EK6ES, JVM3160RF8SS, JVM6172SK5SS, JVM6175DK5WW, JVM7195DK6BB, JVM6175BL6TS, JVM6175DK5BB, JVM7195DK5BB, JVM3160DF8BB, JVM3160DF8CC, JVM3160EF8ES, JVM7195DK6WW, JVM6172DK5BB, JVM6172DK5WW, JVM3160DF8WW, JVM7195SK6SS, JVM7195EW1ES, and JVM3160RF9SS. PVM Series (High-End Wall-Mount Microwaves): Covers models such as PVM9179SK5SS, PVM9179DK5BB, PVM9215SK5SS, PVM9179FL5DS, PNM9216SK5SS, PNM9216SK6SS, PVM9225SR1SS, PVM9005SJ8SS, PVM9179EK6ES, PVM9179BL5TS, PVM9179DK6WW, PVM9179DK6BB, PVM9179EK5ES, PVM9179DK5WW, PVM9179BL6TS, PVM9179SK6SS, PVM9215SK6SS, PVM9005RY1SS, PVM9215RY1SS, PVM9179RY1SS, PVM9179DR1WW, and PVM9179DR1BB. CVM Series (Microwave-Range Hood Combos): Fits models including CVM521P2M5S1, CVM517P3M5D1, CVM519P2P8S1, CVM721M2N8S5, CVM519P2P9S1, CVM517P2M5S1, CVM517P2M6S1, CVM517P4M5W2, CVM517P4R2W2, and CVM521P2M6S1 (featuring integrated top-range hoods). DVM Series (Compact Wall-Mount Microwaves): Compatible with models like DVM7195EK5ES, DVM7195SK5SS, DVM7195EK6ES, DVM7195FL5DS, DVM7195BL5TS, DVM7195FL6DS, DVM7195SK6SS, and DVM7195BL6TS

Características

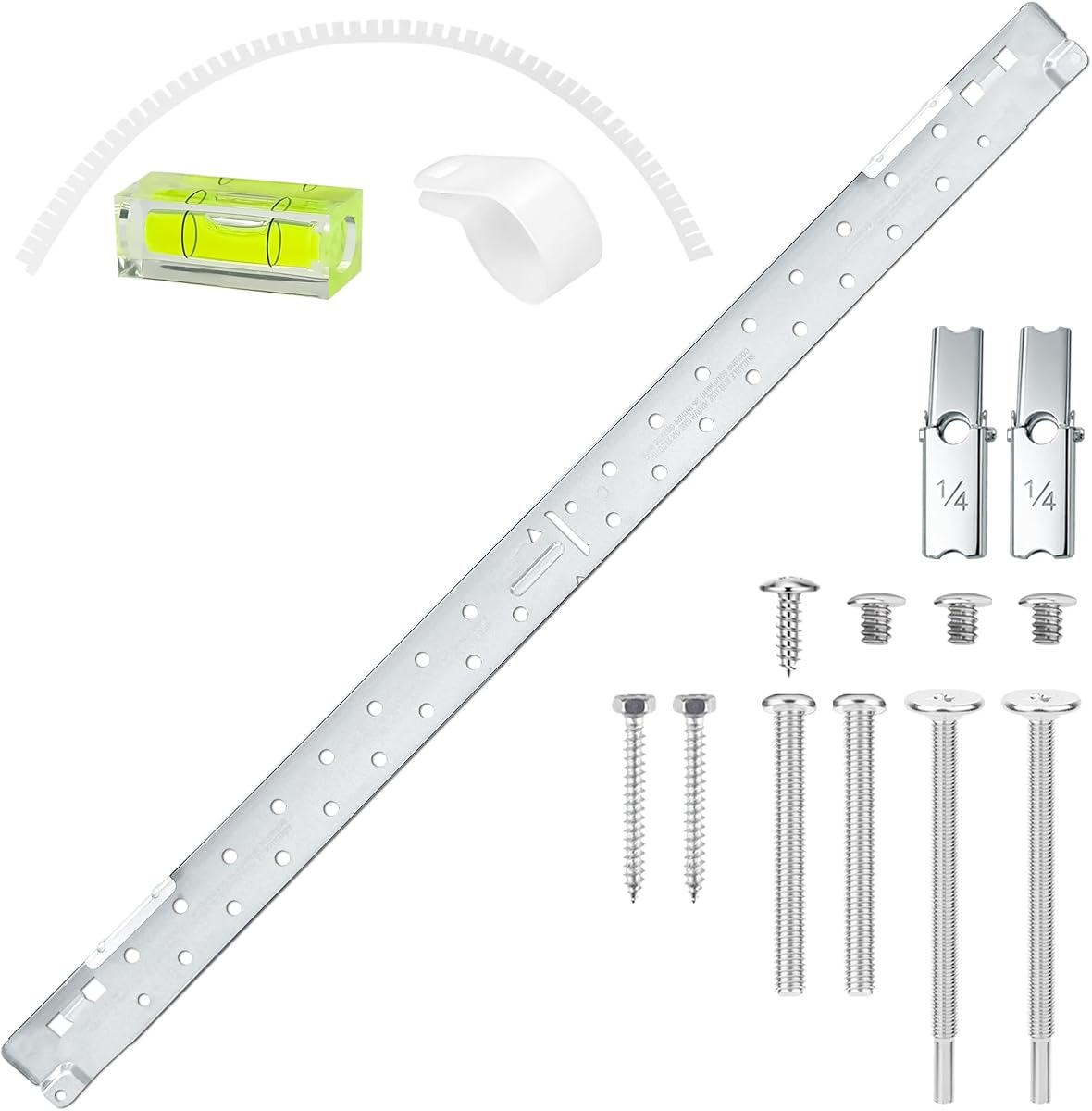

• All-in-One Wall/Cabinet Mount Kit Specifications:This kit includes 1pc WB56X35363 microwave mounting plate assembly (bracket), a full set of WB02X35527 screws, and 1 column level (detailed information shown in Figure 1).As a professional microwave mounting kit, the bracket meets original factory standards in size, with robust load-bearing capacity to safely support various fit for GE microwave models.
• Part Numbers: WB56X35363 Microwave mounting bracket assembly can directly replacement for GE mounting plate part numbers, including WB56X35363, AP6986668, PS16216996, WB56X10669, 1167916, AH1021820, and EA1021820. Designed for Wall/Cabinet Mounting Installation, it’s tailored for securely installing GE microwaves on walls or cabinets (not for fully embedded use). No extra accessories are needed—this one-stop solution fits the installation of mounting plate assembly wb56x35363
• Wide Compatibility : Microwave mounting bracket designed specifically as a replacement for ge microwave wb56x35363, it is compatible with the full range of mainstream GE microwave models, including wall-mounted (over-the-range) and semi-built models (not fully embedded) like JVM7195SK5SS, PVM9179SK5SS, JNM7196DK5BB, DVM7195EK5ES, as well as general models such as 36363672200 and 36363679200. It covers the installation needs of most GE microwaves and is a universally adaptable accessory for ge mounting bracket wb56x35363. Check the product details for more models—use Ctrl+F to quickly find your microwave model!
• Durable & Long-Lasting for Reliable Use:The wb56x35363 WB56X10669 microwave wall mount bracket is made of high-grade 22-gauge galvanized steel, It effectively solves common issues like loose or wobbly microwaves, difficulty aligning or fitting the microwave onto the mounting plate, and visible wear, rust, or damage on old plates. The matching WB02X35527 screws are made of high-strength stainless steel, which are not easy to slip or deform. The column level ensure precise installation, providing long-lasting reliability
• Simple Installation Steps: No professional tools are required—easy to operate for ordinary users. Warm Reminder: Please turn off the water and electricity supply before installation to ensure safety during the operation. ① Use the included level to locate the drilling position and fix the mounting plate assembly wb56x35363; ② Firmly connect the microwave to the bracket with WB02X35527 screws; ③ Calibrate again with the level and tighten the screws to complete installation. Follow the manual throughout the process, no repairman needed.
• Compatibility with GE Microwave Models:PVM Series (High-End Wall-Mount Microwaves) - Covers models such as PVM9179SK5SS, PVM9179DK5BB, PVM9215SK5SS, PVM9179FL5DS, PNM9216SK5SS, PNM9216SK6SS, PVM9225SR1SS, PVM9005SJ8SS, PVM9179EK6ES, PVM9179BL5TS, PVM9179DK6WW, PVM9179DK6BB, PVM9179EK5ES, PVM9179DK5WW, PVM9179BL6TS, PVM9179SK6SS, PVM9215SK6SS, PVM9005RY1SS, PVM9215RY1SS, PVM9179RY1SS, PVM9179DR1WW, and PVM9179DR1BB. CVM Series (Microwave-Range Hood Combos): Fits models including CVM521P2M5S1, CVM517P3M5D1, CVM519P2P8S1, CVM721M2N8S5, CVM519P2P9S1, CVM517P2M5S1, CVM517P2M6S1, CVM517P4M5W2, CVM517P4R2W2, and CVM521P2M6S1 (featuring integrated top-range hoods).
