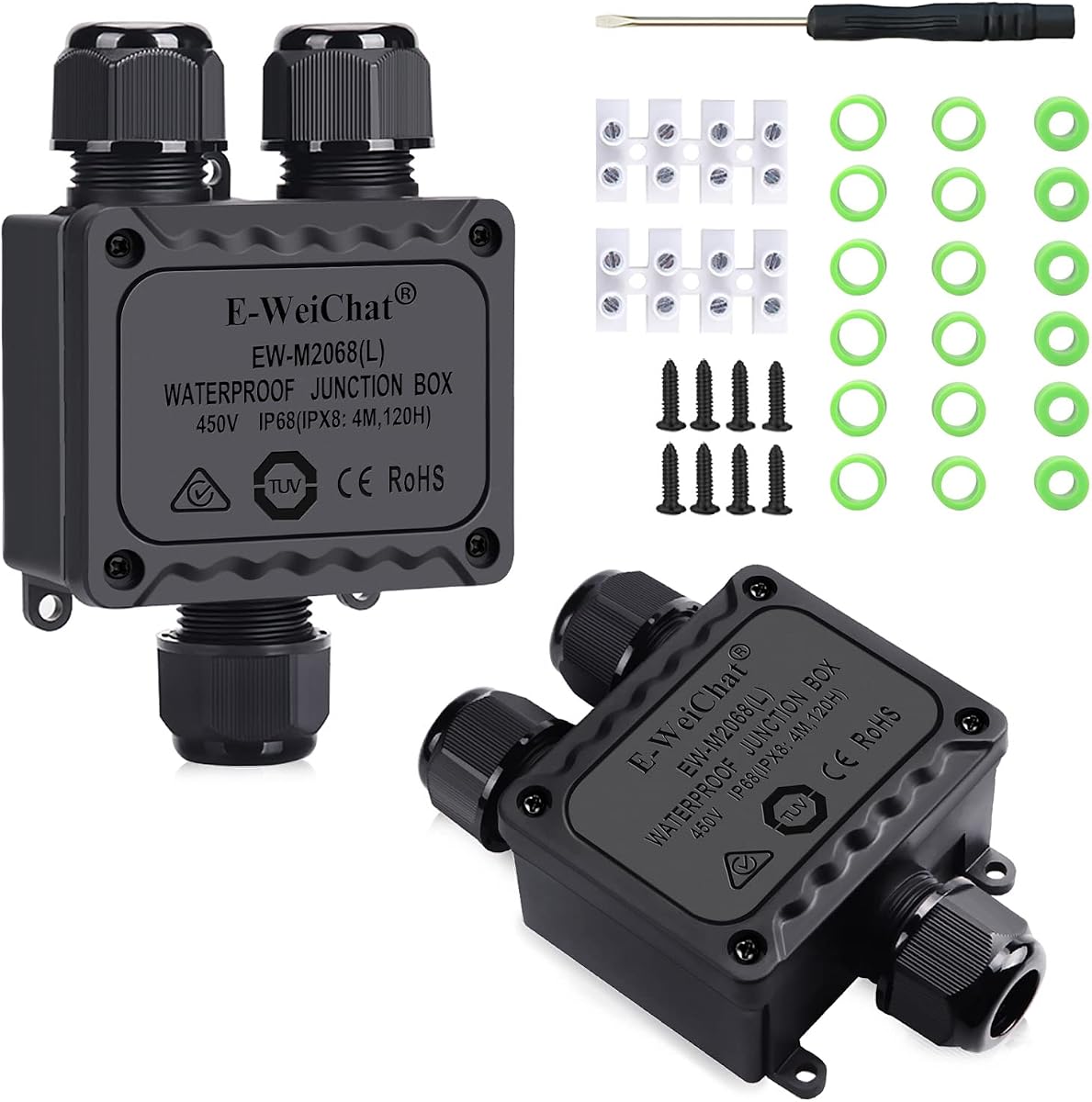

Caja de conexiones impermeable, caja de conexiones subterránea para exteriores IP68, 2 piezas Caja de conexiones eléctricas de plástico M25 de 3 vías adecuada para luces de túneles, luces de jardín, luces de paisaje

Descripción

Product description Why Choose Our Store For product, quality has and always will be our core focus.Provide you with qualified terminals & meet your needs in a variety of wiring projects. We believe that our connectors can meet most of the wire connection needs.The waterproof electrical boxes are suitable for kinds of LED billboards, LED tunnel lights, LED Road landscape lighting, LED outdoor display, LED garden lights. Further applications in coastal, river, sea, or underwater engineering, underground engineering, mining engineering, solar-wind power, solar water heaters, various machinery, and equipment. Solve the Trouble of Wire Diameter Selection We provide the product with all the appropriate end waterproof rings for you to choose from, you can choose the appropriate waterproof ring according to your wire diameter, only a simple replacement of the end of the waterproof ring can solve. 3 Way Junction Box 3 Way 2 Pcs Junction Box 2 Way Junction Box 2 Way 2 Pcs Junction Box Buying Options Buying Options Buying Options Buying Options Customer Reviews 4.5 out of 5 stars 80 4.4 out of 5 stars 58 4.8 out of 5 stars 40 4.6 out of 5 stars 13 Price EUR 11.69EUR11.69 EUR 17.93EUR17.93 EUR 11.69EUR11.69 EUR 17.93EUR17.93 Material Plastic Plastic Plastic Plastic Junction Box 3way 3way,2pcs 2way 2way,2pcs Rated Voltage AC 450V AC 450V AC 450V AC 450V Rated Current 40 A 40 A 40 A 40 A Waterproof Level IP68(IPX8:4M,120H) IP68(IPX8:4M,120H) IP68(IPX8:4M,120H) IP68(IPX8:4M,120H) Available Wire Diameter Φ5-9mm, Φ9-12mm, Φ10-14mm Φ5-9mm, Φ9-12mm, Φ10-14mm Φ5-9mm, Φ9-12mm, Φ10-14mm Φ5-9mm, Φ9-12mm, Φ10-14mm Cable Specification 0.5-6.0mm² 0.5-6.0mm² 0.5-6.0mm² 0.5-6.0mm²

Características

• Junction Box Specifications: One in and two out, and is delivered in a four-position terminal block. Internal size: 71 x 56 x 29.3mm/2.79" x 2.2" x 1.15"(L*W*H). Terminal block current:40A. Terminal block voltage: AC 450V. Available wire diameter: 5-9mm, 9-12mm, 10-14mm. Cable specification: 0.5-6.0mm². Waterproof protection level: IP68(IPX8:4M,120H). Package list: 2pcs(2 junction box,2 four-position terminal block,8 nail,18 Waterproof rubber ring,1 screwdriver)
• High-Quality Materials: Our waterproof electrical box is used high-quality plastic PA66 housing, silicone material waterproof sealing ring, copper screw holes, it will not crack or fade in sunlight, good waterproof performance, not easy to oxidize, is durable for years, corrosion-resistant, high temperature resistant, long life.
• Waterproof IP68 Outdoor Junction Box: Junction box outdoor waterproof ip68 is 3 wires (3-pole) M25 connector. IP68 high-level waterproof class, moisture-proof, dust-proof, anti-UV. 3 Way Plastic Terminal, can be installed horizontal and vertical as an external junction box, widely used in outdoor waterproof facilities, street light, buried light, garden light, outdoor floodlight, etc.
• Easy to Install: Loosen the end of the connector, insert the wire, just use a screwdriver to fix it, and then tighten it, the operation is easy and convenient. Small volume, just a screwdriver, so that the cable connector is installed in any place where it needs. It is utilized to install outdoor lamps and lanterns connection, wiring is easy to operate, more convenient, and safer. Note: Prohibited to charge inserted. Operating temperature:-40 to 221 Fahrenheit scale.
• Wide Usability Waterproof Box: The external junction boxes are suitable for kinds of LED billboards, LED tunnel lights, LED Road landscape lighting, LED outdoor display, LED garden lights. Further applications in coastal, river, sea, or underwater engineering, underground engineering, mining engineering, solar-wind power, solar water heaters, various machinery, and equipment.
