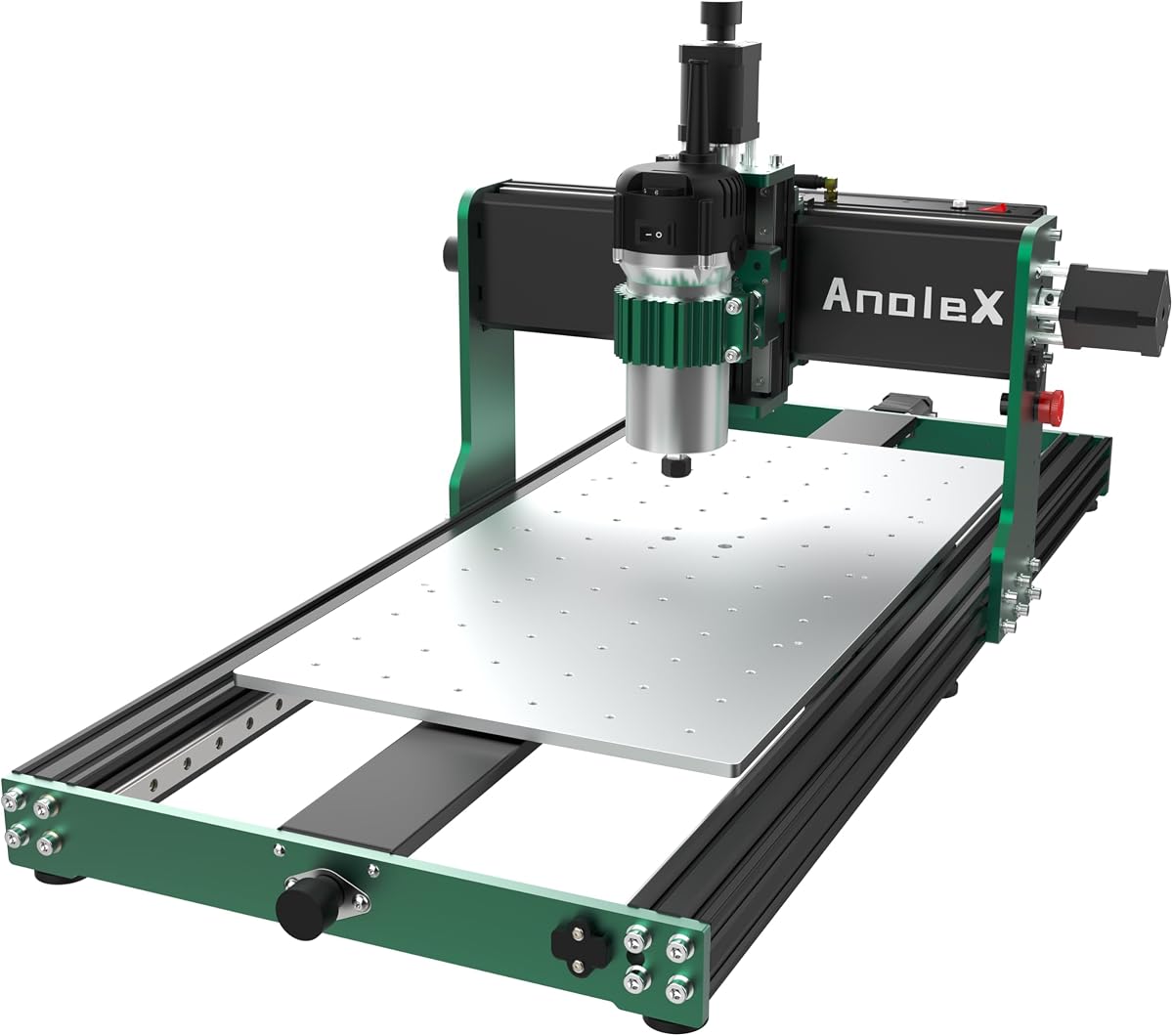

CNC Router Machine 3060-Evo Max, All-Metal XYZ Axis Dual Steel Linear Guides with 800W Trimmer Router, ideal for Cutting Aluminum, Brass, Stainless steel, Wood, Acrylic, MDF, Plastics

Descripción

Product description Ideal for Metal - and So Much More What materials can it engrave & cut? Wood | Aluminum | Brass | Steel | Acrylic | PCBs | Graphite | Foam | Rubber | Delrin | Polycarbonate | EVA | Carbon fiber | Marble etc. Previous page Next page 1 Precision Motion System 2 800W Spindle 3 GRBL_ESP32 Controller Previous page Next page 1 More Spindle Options 2 Upgraded Ballscrew &Motor More Add-ons for Choose 1.5KW Spindle Kit Add to Cart Ball Screw Upgrade Kit Add to Cart Closed Loop Motor Kit Add to Cart MDF Spoilboard Add to Cart High-Precision Bench Vise Add to Cart 4in1 CNC Router Bits Add to Cart Customer Reviews 4.0 out of 5 stars 14 — 5.0 out of 5 stars 2 4.5 out of 5 stars 5 4.7 out of 5 stars 11 5.0 out of 5 stars 1 Price $369.00$369.00 $149.00$149.00 $169.00$169.00 $39.99$39.99 $69.99$69.99 $39.99$39.99 for 3060-Evo Max ✔ ✔ ✔ ✔ ✔ ✔ Key Features Adjust speed via software Screw Φ12mm, Pitch (lead) 4mm Holding torque: 0.8N.m Size: 400 x 600 x 12 mm Max. clamping range: 186mm 1/8" shank diameter Key Features Φ65mm Air-cooled spindle Assembly capability required Size: 42*42*99mm MDF material 4 x linear rod shafts 4-in-1 Set (40 Pieces) Key Features Runout off ±0.005mm Assembly manual provided Speed 4000mm/min Hole spacing: 45mm One-piece & All-aluminum Tungsten carbide steel alloy Key Features Plug-and-play& Built-in VFD Higer precision and rigidity No step loss Table bed protection Strong clamping force Used for wood, plastic, etc.

Características

• [Upgraded Y-axis 3060 Table] Comes with a longer table base, the bed size is 300*600mm, and the effective processing area is also 300*600*73mm, which provides the possibility for projects that require large and multiple pieces of processing.
• [800w Trim Router & Upgradeable 1.5kw Spindle ] Comes with 800W trim router & Er11-1/8" collet with 6-speed settings (8000-24000 RPM). Can easily cut metals such as aluminum, copper, etc. Software-controlled run/stop functionality, with speed adjustment requiring manual dial control. Comes with ⌀65mm spindle mount, it can be directly upgraded to our 1.5kw spindle kit for greater cutting capacity, precision and improved efficiency
• [Dual Linear Guides & Upgradeable Ball Screws] Each axis (X, Y, Z) is equipped with MGN-15 dual linear guides and T8 lead screws. It has high precision, high rigidity and high load for metal cutting, and improved dust protection for X and Y axes. 1204 ball screw kit available for upgrade.
• [Nema 17 stepper & Upgradable Closed-loop Motor] The 3060-Evo Max employs a higher-torque 650mN·m stepper motor compared to the common Nema17 motor (420mN·m), significantly enhancing its capability to process metallic materials. Upgradeable Nema17 closed-loop motor to obtain greater torque and achieve no step loss.
• [Grbl_ESP32 Firmware (GRBL 1.3a)] Optimized 32-bit control board, runs on the latest GRBL 1.3a firmware instead of the other GRBL1.1f, , supporting advanced features such as laser engraving, 4th rotation axis, M07/M08 coolant system control, closed-loop stepper motor, and 3-pin touch probe.
• [Customizable Macro Buttons & WiFi] Built-in 32-bit MCU with ESP3D Web UI, enabling control via PC, smartphone, or tablet without USB cable. Macro button defaul is homing, reprogrammable for tasks like pause/stop/reset or executing G-code from an SD card.
• [Software & Fully Functional] Compatible with Windows, Linux, and Mac, supporting GRBL-compatible software such as UGS, Fusion360, VCarve, Easel, and Lightburn etc.. Includes XYZ dual limit switches, home switch, emergency stop switch, Z probe tool.
• [Easy Assembly] Major components pre-assembled with clear cable management, accompanied by a detailed paper user manual and assembly/demo video for quick setup.

Especificaciones
