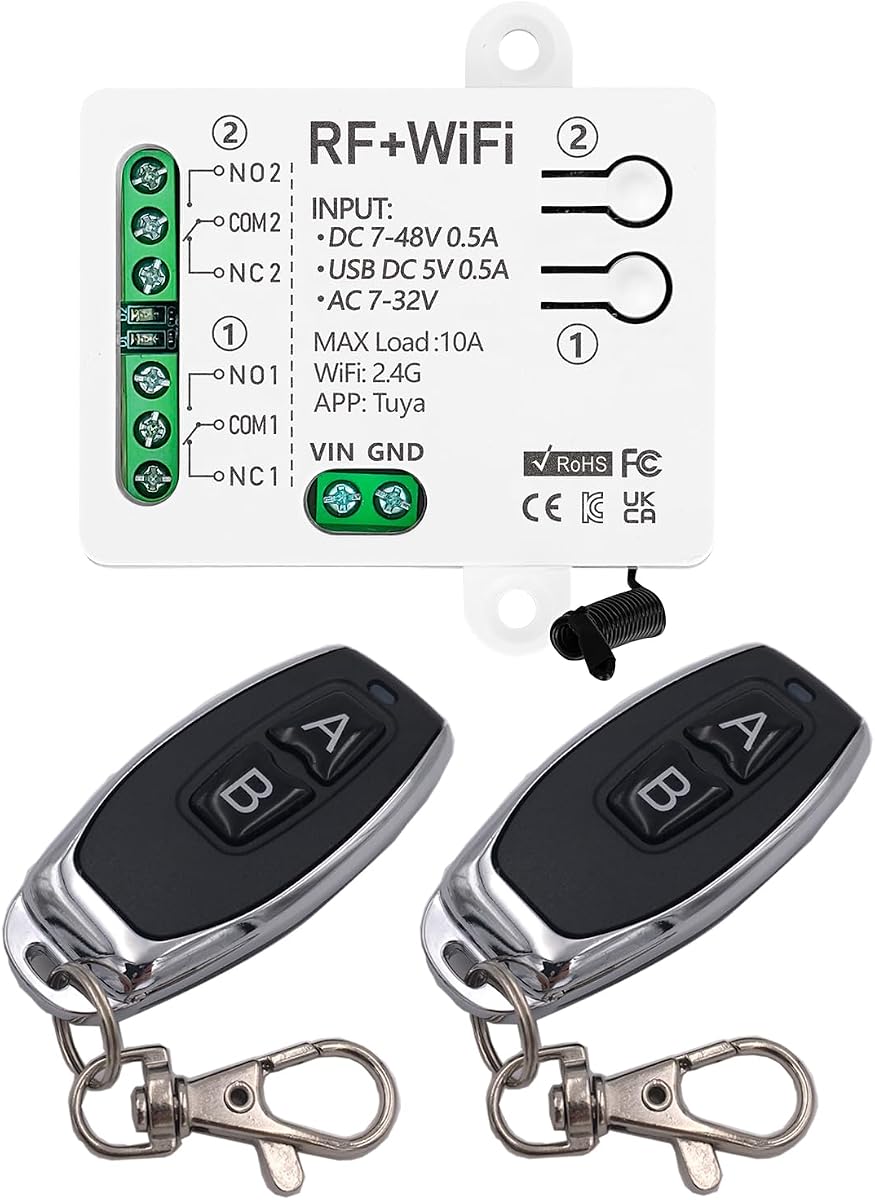

DieseRC Tuya 2 Channels WiFi Smart Switch, DC 5V 12V 24V 36V Passive Output Relay Module, with 2 pcs RF Remote Control, Compatible with Alexa/Google Home

Descripción

Package Include: 1x WIFI+RF Controller Module 2x RF Remote Control 1x Product manual WIFI+RF Controller Module Parameter: -Working Voltage: DC 5V or DC 7V~48V or AC 7-32V - Relay max current: 10A -Output type: passive output/ clean relay/ dry contacts -Channel: 2 channels - WiFi: IEEE 802.11 b/g/n 2.4GHz - Support Remote Control: 433Mhz RF remote control -Size: 65*50*24 mm (2.6*2.0*1.0 in) - Working temperature: -30~+80 Remote Control Parameter: - RF frequency: 433MHz - Encoding: 1527 Learning code -Battery: 2x CR2016 or 1x CR2032 - Lifespan: 500,000 times - Size: 62mm*23mm*11mm APP pairing: 1. Your phone has been connected to 2.4GHz Wi-Fi. And turn on the Bluetooth. 2. Long press pairing button for more than 10 seconds until blue LED indicator blinks to enter pairing state. 3. Open Tuya APP, tap【+】on the screen, Find """"""""switch (WiFi) """"""""icon in the """"""""electrical"""""""" category. And then operate according to the prompts on the APP interface. RF remote control pairing: 1. Click the pairing button ① 2 times quickly, the red LED indicator (on the receiver) will light up 2. Press the button A on the remote ocntrol, the red LED indicator (on the receiver) will flash several times and turns off. Succeed. Notice: the 2nd channel follow the same above operation. How to delete the RF signal: Click the pairing button 8 times quickly. Succeed Notice: After delete the signal, the relay will not be controllable by the remote control. You need to pair the receiver with the remote control again before putting them into service.

Características

• 【Excellence design】Wireless WIFI+RF smart switch relay module. Stable and reliable performance with high reception sensitivity(2.4GHz WIFI). You can remotely operate every machine connect with the relay receiver through the Internet from wherever on the earth. And It is compatible with RF 433Mhz radio remote control.
• 【APP control】This WIFI switch is compatible with "Tuya" APP and "Smart Life" APP , which are popular and widely used on the market. Connected this smart switch directly to your Wi-Fi network to achieve unlimited wireless control via your phone (Android and iOS). And also the smart switch is compatible with Amazon Alexa (Amazon Echo / Dot / Spot), Google Home. It is able to achieve several kinds of intelligent controls.
• 【Easy to Use】There are 2 operating mode(inching/toggle mode) can be setup. It can work as a pulse switch(a button) or a switch(a toggle switch). You can easily program by yourself depends on your needs. The operating mode of the smart switch is adjustable.
• 【More Flexibility】This receiver adopts 10A high-quality relay that can be used over 400,000 times. Let this product is more long-lasting and stable to use. There are 3 terminals(normally open pin, common pin, normally closed pin) for the relay. This is a potential-free contacts relay. Passive output. Dry contacts. The relay is cean. The receiver is suitable for DC 5V or DC 7V~48V or AC 7~32V voltage, so DC 5V/ 12V/ 24V/ 36V/ 48V or AC 12V/24V voltage can working well.
• 【Wide Application】Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.You can remotely operate every device connect with the WIFI smart switch through your phone. such as, garage door opener system, electric lock, Electromagnetic door, lamp, lighting, contactor, signal transmission and DIY remote control switch.
• 【Easy to install】The size of smart switch is 65*50*24 mm (2.6*2.0*1.0 in). It can be easily to install in many place.
• 【APP Function】It can achieve most intelligent controls. Setting Schedule and Timer. You can share control of the connected smart switch with the whole family.
• 【Other extended functions 】The smart switch is compatible with Amazon Alexa (Amazon Echo / Dot / Spot), Google Home. So that you can enjoy the voice control. For example, you can use the command:"Alexa, turn the light". etc. And it is also linked with a variety of sensors. You can find them on Tuya APP and Smart Life APP.
