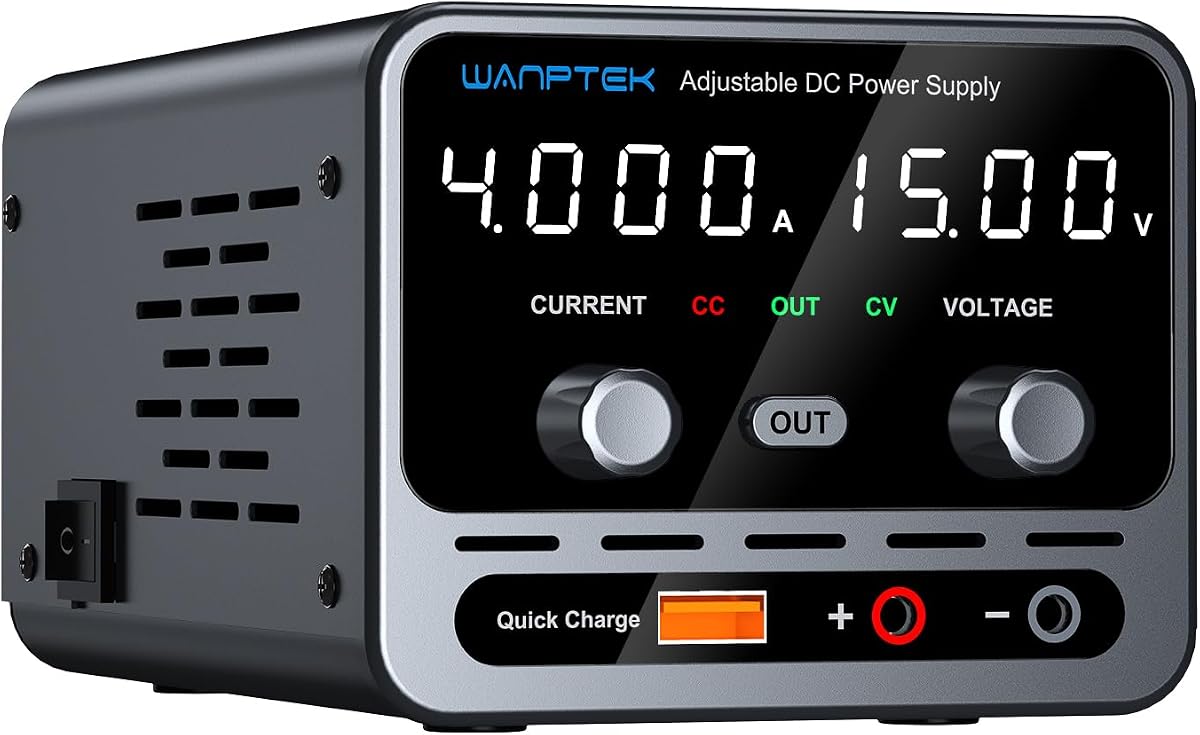

Fuente de alimentación CC, 0-15 V/0-4 A Pantalla LED ajustable de 4 dígitos de alta precisión con botón de salida y puerto USB Fuente de alimentación de laboratorio para laboratorios, electrónica, bricolaje y reparación

Descripción

Product description More than just simple output control The Output button allows you to easily enable or disable the device's power output.In addition, you can change the device's output state at startup by holding down the Output button. To enable output: If the device's output is currently off (the OUT indicator is off), hold down the OUT button for 2 seconds until the voltage value flashes; the setting is now complete (set to default output at startup).To reset this setting, simply hold down the OUT button again to disable the default output at startup. Smooth metal coating and heat dissipation The power supply features a painted metal finish, giving it a clean and attractive appearance. The housing includes ventilation openings to reduce heat buildup and extend the service life of the DC power supply. 18W USB fast-charging port This desktop adjustable power supply is equipped with an 18W USB fast-charging port. It allows you to power your electronic devices while conducting electronic tests, automatically adapting to your device’s fast-charging protocol and providing a charging power output ranging from 5W to 18W. The power output terminals feature pure copper connectors, which enhance electrical conductivity and minimize output loss or failure caused by material issues. Wide-range AC input and cooling fan The adjustable regulated power supply supports a wide input range of 95V–265V AC at 45Hz–50Hz, allowing you to use it directly with either 110V or 220V power sources.Temperature-controlled cooling fan: In addition to its excellent built-in heat dissipation capabilities, the product is equipped with a temperature-controlled fan. When the internal temperature exceeds 50°C, the fan automatically activates to dissipate heat, ensuring optimal device performance and extending the product’s service life. Technical Specifications Input voltage AC 95V-265V，45Hz-65Hz Fuse Specifications 5*20mm , AC250V/4A Model and Output MN1504 (0-15V/0-4A) Constant voltage CV Voltage stability：0.5%±3mV / Load stability： 0.5%±3mV / Ripple voltage：≤0.5% Vp-p Constant current CC Current stability：0.5%±3mA / Load stability： 0.5%±3mA / Ripple current：≤0.5% Ap-p Protection features Overvoltage protection, overcurrent protection, overtemperature protection, short-circuit protection Features USB fast-charging port, single-output, encoder adjustment Dimensions and Weight 6.3*3.94*3.15IN , 0.7kg Packing List DC Power supply MN1504*1, user manual (English), AC power cord (US standard), output test leads

Características

• Product Dimensions & Weight: The MN1504 series DC power supply measures just 16 x 10 x 8 cm and weighs 0.7 kg. It delivers output within the DC 15V 4A range, with a maximum output power of 60W, enabling sustained full-load operation.
• AC 110/220V Automatic Voltage Selection: To accommodate different input voltage requirements, this power supply features automatic voltage selection between 110V and 220V. It supports operation across multiple voltage modes, reducing the risk of equipment damage or voltage mismatch issues.
• Output Switch and Encoder Adjustment: With output control buttons integrated into a compact design, you can easily turn the device on or off. The bench-top adjustable power supply features an encoder knob that allows you to quickly set the exact value you need, making your work more seamless.
• Automatic Constant Voltage/Constant Current: The output mode is determined by the user-set voltage and current values, as well as the size of the connected load. The power supply’s output will not exceed the set values. This power supply supports long-term operation at full load, with a maximum voltage of 15V and a maximum current of 4A.
• USB Fast Charging Port: The laboratory power supply is equipped with a USB-A fast charging port, allowing you to charge your electronic devices while conducting product testing.
• You will receive: 1 MN1504 switching power supply, 1 US-standard AC power cord, 1 pair of output test leads, and 1 user manual (in English). We offer a 24-hour response policy to promptly resolve any after-sales issues.

Especificaciones
