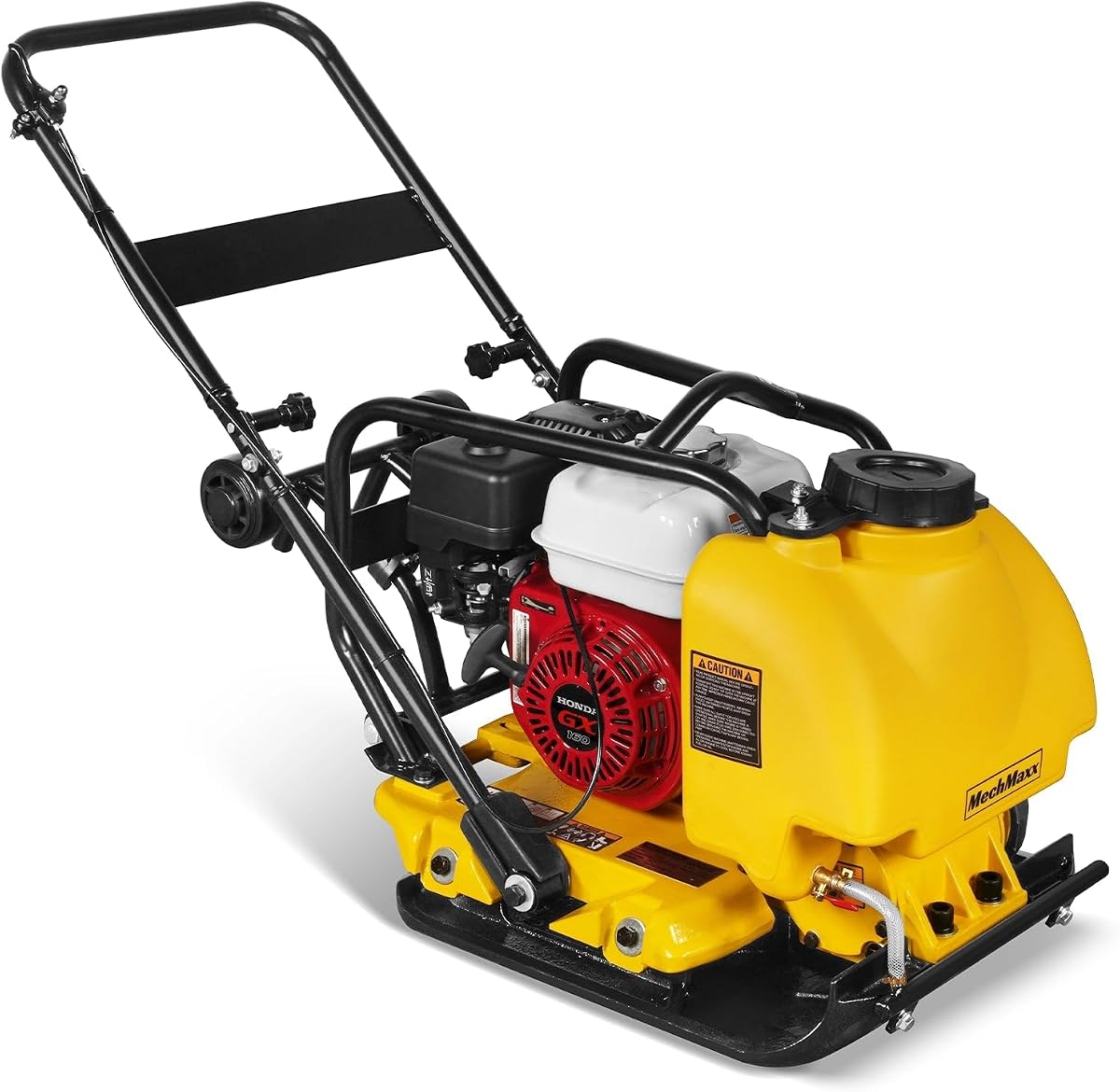

Honda GX160 Vibratory Plate Compactor with Wheel Kit, 3150 lb Centrifugal Force for Soil, Gravel, Asphalt and Paver Base, PC80H

Descripción

Product description The MechMaxx PC80H Forward Plate Compactor is designed for reliable compaction performance on soil, gravel, asphalt, and backfill applications. Powered by a Honda GX160 engine, it delivers strong centrifugal force, efficient vibration performance, and consistent compaction results on demanding jobsites. A durable ductile cast iron compaction plate, rugged protective frame, shock absorption system, foldable handle, lifting hook, and transport wheels help improve durability, operator control, and jobsite mobility. Reliable Honda GX160 Engine: Powered by a Honda GX160 4.8 HP engine, this plate compactor delivers 3,150 lbf (14 kN) of centrifugal force at 4,930 VPM for efficient soil, gravel, asphalt, and backfill compaction.Ductile Cast Iron Compaction Plate: The heavy-duty 21 in × 20 in ductile cast iron plate provides improved strength, wear resistance, and stable compaction performance for long-lasting jobsite durability.Built for Asphalt Applications: A 3.2-gallon water tank helps reduce asphalt sticking and supports wet compaction work for paving, patching, and road maintenance applications.Durable Construction and Operator Comfort: A shock absorption system, metal throttle lever, and protective frame help reduce vibration, protect key components, and improve operating comfort during demanding use.Included Wheel Kit for Easy Transport: The included transport wheel kit, foldable handle, and integrated lifting hook make it easier to move, load, and store the compactor on the jobsite. NOTE! This machine DOES NOT COME WITH OIL AND GASOLINE in the engine. Before starting, fill the engine with both oil and gasoline. Refer to the engine manual for details.Please read the PRODUCT MANUAL carefully and review all SAFETY WARNING LABELS on the machine before operation. Powerful Compaction Performance Delivers 3150 lbf (14kN) of centrifugal force with a large 21 × 20 in plate for efficient and even compaction on soil, gravel, asphalt, and backfill. Ductile Cast Iron Base Plate The ductile cast iron base plate offers superior wear resistance and impact durability for demanding jobsite conditions. Metal Throttle Lever + Full Frame Protection The upgraded metal throttle lever provides better durability and precise control, while the full protective frame helps reduce impact damage and extends machine service life. Shock Absorption System Heavy-duty shock help reduce vibration transfer for smoother operation and less operator fatigue. Built-In Water Tank Equipped with a 3.2-gallon water tank to reduce asphalt sticking during paving applications. Easy Transport Design Features transport wheels, a foldable handle, and lifting hook for easier transportation, loading, and jobsite mobility. Engine Honda GX160 Engine Type Single-Cylinder, 4-Stroke, Air-Cooled, OHV Gasoline Engine Horsepower 163 cc 4.8 HP (3.6kW) @ 3600 RPM Start System Recoil Fuel Tank Capacity 3.3 US qt (3.1L) Engine Oil Capacity 0.61 US qt (0.6L) Centrifugal Force 3150 lbf (14kN) Vibration Frequency 4930 VPM Compact Depth 12 in Max Travel Speed 69 ft/min Plate Size 21 x 20 in Exciter Oil 0.15L SAE 10W-30 Overall Dimension (LxWxH) 37 x20 x 37 in Folded Dimension (LxWxH) 35 x 20 x 24in Packing Size (LxWxH) 28 × 21 × 24 in Weight (N.W / G.W.) 193/232 lbs PC80Z PC80H PC90Z PC90H PC150Z PC150H Buying Options Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Price — no data $1,499.00$1,499.00 $899.00$899.00 $1,499.00$1,499.00 $1,799.00$1,799.00 $2,299.00$2,299.00 Engine Zonsen GB210 Honda GX160 Zonsen GB210 Honda GX160 Zonsen GB210 Honda GX160 Engine Displacement 208 cc 163 cc 208 cc 163 cc 208 cc 163 cc Horsepower 5.8 HP (4.3kW) @ 3600 RPM 4.8 HP (3.6kW) @ 3600 RPM 5.8 HP (4.3kW) @ 3600 RPM 4.8 HP (3.6kW) @ 3600 RPM 5.8 HP (4.3kW) @ 3600 RPM 4.8 HP (3.6kW) @ 3600 RPM Centrifugal Force 3150 lbf (14kN) 3150 lbf (14kN) 3600 lbf (16kN) 3600 lbf (16kN) 5625 lbf (25kN) 5625 lbf (25kN) Vibration Frequency 4930 VPM 4930 VPM 4750 VPM 4750 VPM 4600 VPM 4600 VPM Compact Depth 12 in 12 in 12 in 12 in 22 in 22 in Max Travel Speed 69 ft/min 69 ft/min 72 ft/min 72 ft/min 66 ft/min 66 ft/min Plate Size 20 x 19 in 21 x 20 in 21 x 18 in 21 x 18 in 26 x 20 in (with Extension Plate) 26 x 20 in (with Extension Plate) Overall Dimension (LxWxH) 43 × 19 × 33 in 37 x20 x 37 in 43 × 18 × 37 in 43 × 18 × 37 in 41 × 16 × 35 in 41 × 16 × 35 in Weight (N.W / G.W.) 168/207 lbs 193/232 lbs 196/236 lbs 199/239 lbs 328/377 lbs 328/380 lbs

Características

• Reliable Honda GX160 Engine: Powered by a Honda GX160 4.8 HP engine, this plate compactor delivers 3,150 lbf (14 kN) of centrifugal force at 4,930 VPM for efficient soil, gravel, asphalt, and backfill compaction.
• Ductile Cast Iron Compaction Plate: The heavy-duty 21 in × 20 in ductile cast iron plate provides improved strength, wear resistance, and stable compaction performance for long-lasting jobsite durability.
• Built for Asphalt Applications: A 3.2-gallon water tank helps reduce asphalt sticking and supports wet compaction work for paving, patching, and road maintenance applications.
• Durable Construction and Operator Comfort: A shock absorption system, metal throttle lever, and protective frame help reduce vibration, protect key components, and improve operating comfort during demanding use
• Included Wheel Kit for Easy Transport: The included transport wheel kit, foldable handle, and integrated lifting hook make it easier to move, load, and store the compactor on the jobsite.
