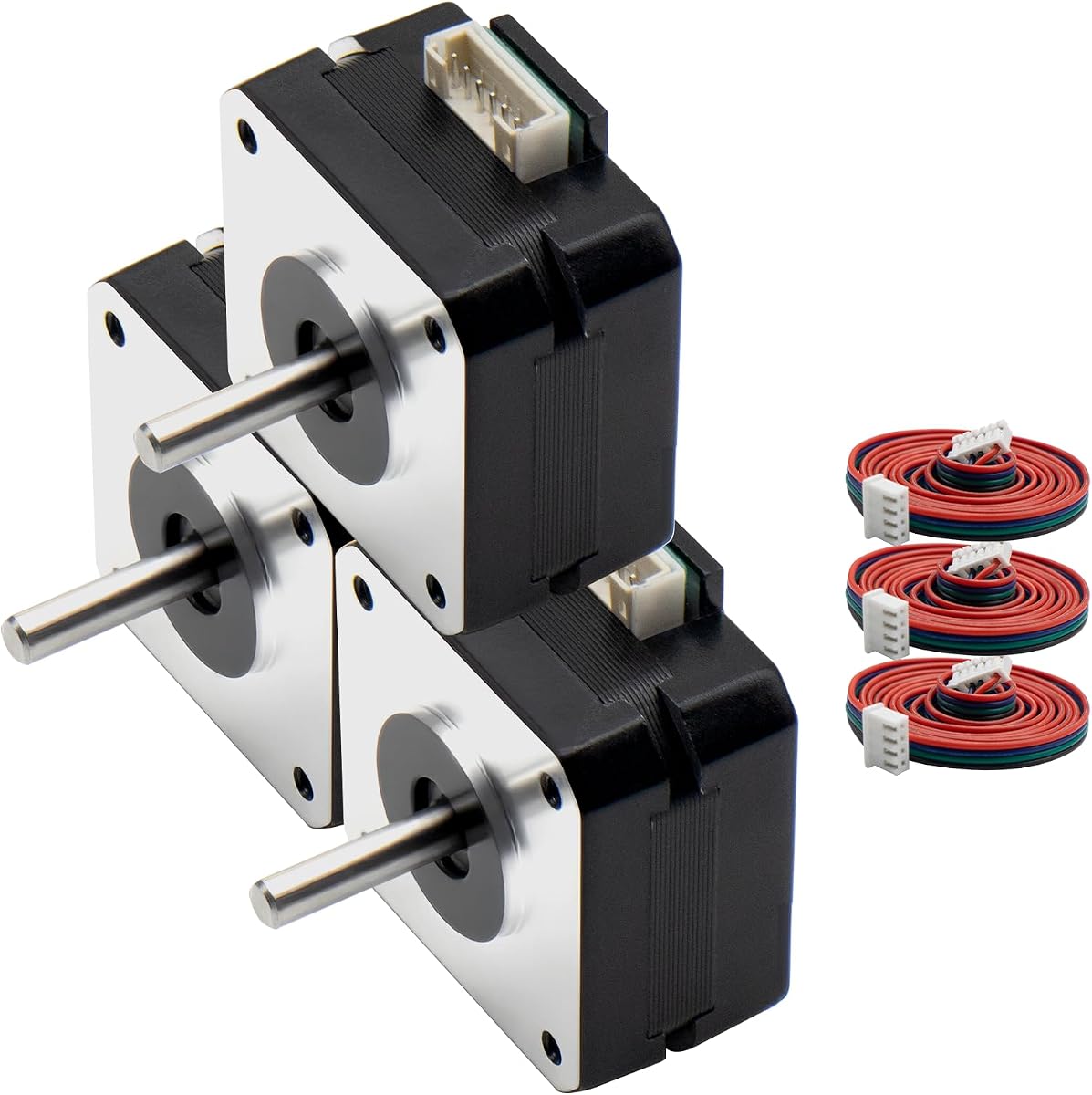

MAKERELE 3PC Nema 17 Stepper Motor Bipolar 1.3A, 23mm Body(3pcs) | 15.5Ncm(21oz.in) Torque, 1.8°Degree, 4-Lead with 1m Cable and Connector for DIY 3D Printing and CNC Applications

Descripción

Product description Product Details Applicable industries Related Products DM542 Stepper Driver Add to Cart DM556 Stepper Driver Add to Cart Stepper Driver Controller Add to Cart Stepper Driver Controller Add to Cart 360W 12V Power Supply Add to Cart 60W 24V DIN Power Supply Add to Cart 120W 24V DIN Power Supply Add to Cart Customer Reviews 3.9 out of 5 stars 8 3.8 out of 5 stars 10 3.7 out of 5 stars 4 4.5 out of 5 stars 2 — 5.0 out of 5 stars 1 5.0 out of 5 stars 4 Price $18.99$18.99 $18.99$18.99 $28.40$28.40 $34.99$34.99 $29.99$29.99 $17.99$17.99 $25.99$25.99 Product type Stepper Motor Driver Stepper Motor Driver Stepper Driver Controller New Stepper Driver Controller Power Supply DIN Power Supply DIN Power Supply 3d printer √ √ √ √ √ √ √ Direct Current √ √ √ √ √ √ √ Voltage 20-50V 20-50V 5-30V 10-30V 12V 24V 24V Weight 0.25kg 0.25kg 0.11kg 0.11kg 0.83kg 0.23kg 0.46kg

Características

• [Specifications]: Body Length: 23mm/0.91inch; Step Angle: 1.8 degree; Phase: 2; Rated Voltage: 3.9V; Rated Current: 1.3A; Phase Resistance: 3.0Ω; Phase Inductance: 3.5mH; Holding Togque: 15.5Ncm (21oz.in); Weight: 120g.
• [Size]: Nema 17 Bipolar Stepper Motor: 42x42x23mm/ 1.66x1.66x0.91inch, Shaft Diameter: Φ 5mm ( D Shaft Φ 4.5mm ), Shaft Length: 18mm, 4 leads.
• [Pure Copper Wire Coil]: By adopting the winding and wire passing process, the copper wires are evenly distributed. During long-term operation, there will be no problems such as temperature rise, torque decline, or noise increase.
• [Compact Structure]: The stepper motor is small in size, beautiful in design, can be installed vertically or horizontally, has strong overload-bearing capacity, and saves space.
• [Wide Application]:The small NEMA17 stepper motors have a wide range of applications, covering key areas such as 3D printers, CNC machines, laser engraving machines and medical equipment.

Especificaciones
