Medidor de horas de tacómetro digital Indicador de temperatura del motor RL-HM035A-TS002 | Alerta de RPM y temperatura, pantalla de retroiluminación, para generador de compresor de tractor de césped, para motos acuáticas marinas de nieve, para Pit Bike

Descripción

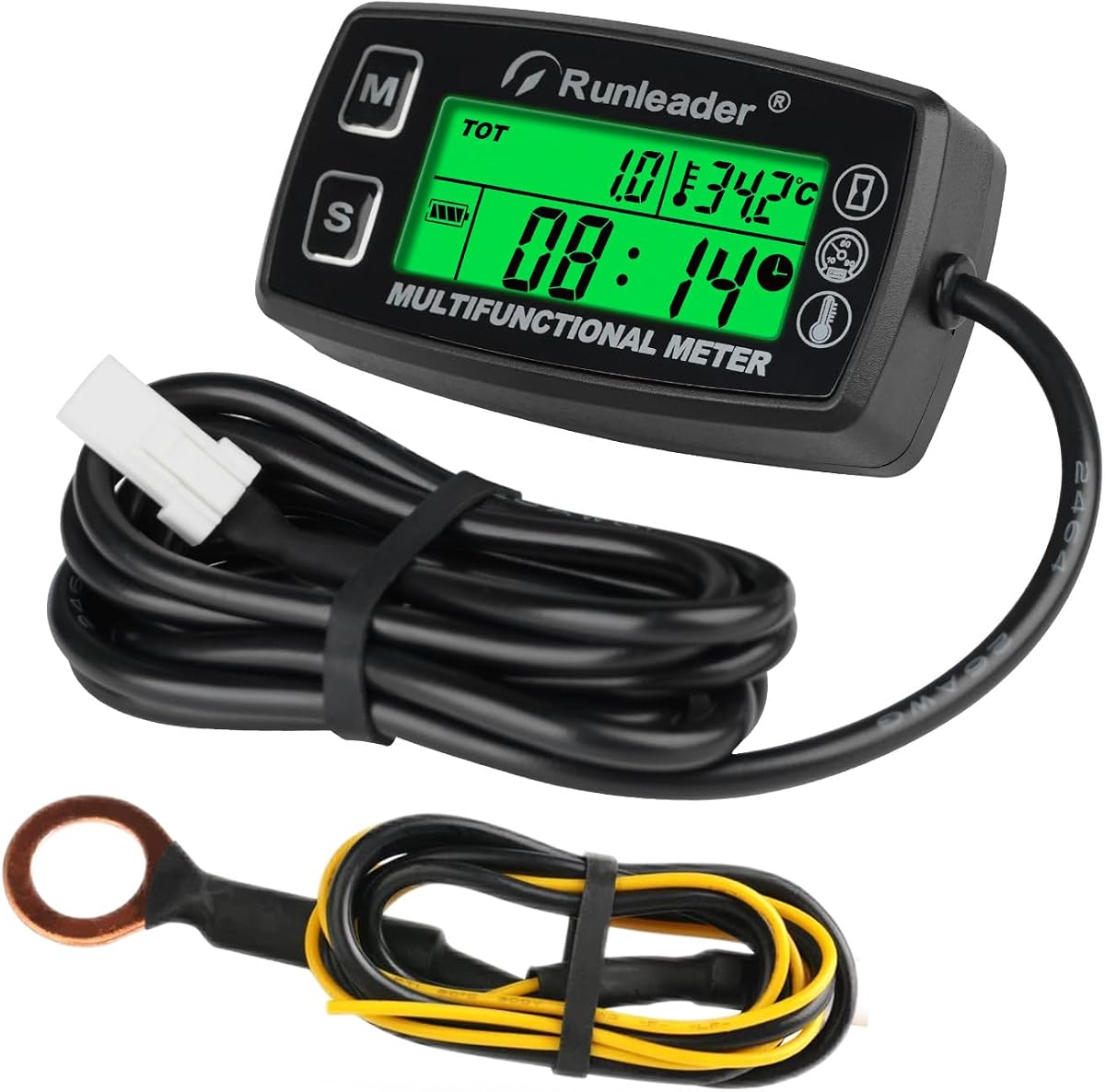

Product description For more than 10 years, Runleader has focused on product development and manufacturing in the fields of hour meter, battery indicator, multi-function meter, controller,service for the garden machinery industry, outdoor power vehicle equipment, transportation vehicles, such as: generators, pumps,chainsaws,outboards,lawn mowers,compressors and others,provide well-known European and American customers with quality products and services. RL-HM035A-TS002 is a multifunctional meter which can track the engine working time, record the real-time RPM and the engine temperature. It have 2 colors of backlight: Green and Red, the green backlight will help you to use it at night or dim place, the red backlight will alarm you the maintenance arrival, Temp and RPM value exceed. This device have favorable water resistance,it can keep the normal working condition up to waterproof rate IP67. It attached the built-in replaceable battery CR2032 with long running lifetime. It display the temp,hours and RPM by visual seperate areas at LCD screen, which can help you to check the data conveniently. Runleader RL-HM035A TS002 LCD Engine Temperature Gauge, RPM & Hours Display, Maintenance Reminder,Replaceable Battery,Waterproof Design. 2. Digital Hours Tachometer Real-time RPM: Record the engine real-time RPM value when it run, help to calibrate the accuracy by 9 engine firing patterns.MAX RPM&RPM ALERT: Display the maximum RPM value since engine start to work, Alert the RPM running exceed based on the preset RPM alert value.Hours: Keep track of total and partial hours for engine running;Schedule the regular maintenance task and advise it's arrival time. RPM range: 0 to 25,000 RPM. TOT & JOB hours range: 99,999 hours Maintenance timer range: 0 to 200 hours. 1. Engine Temperature Gauge Real-time temperture: Help to measure the real-time engine temperature value by TS002 probe sensor wire.MAX temperature: It display the maximum temperature value during historic measurement process.Temperature alert: Remind the temperature exceed based on preset alert temperature value.Temperature units: You can switch the temperature unit from "℃" to "℉".Temperature measurement range: -20-+220℃/ -4°F-428°F. Green & Red backlights display. Replaceable built-in battery. Well-completed accessories. Runleader has established a complete laboratory for testing and improving the product's quality Buttons Testing The buttons can works well after 10,000 repeated taps with a 300g weight. High & Low Temperature Testing It can works well in temperature environments temperature: -40 °C - +70 °C Drop Testing Favorable anti-vibration performance can suffer strong vibrations when the equipments is working. Anti-vibration Testing It can keep the housing and LCD display window in good condition upon vibration amplitude 1.52mm after 6 hours testing period. Anti-interference Testing It keep good working condition upon static interference test. Yellowing Resistance Testing It can keep good working condition from simulative strong UV ray lightening. It also pass another considerate test for each functions sections and attached accessories. RL-HM035A-TS002 Digital LCD Hours Tachometer,Engine Temperature Gauge RL-HM035A-TS001 Digital LCD Hours Tachometer,Engine Oil Temperature Gauge RL-HM035A1 Digital LCD Hours Tachometer,Engine Temperature Gauge RL-HM035A-TS003 Digital LCD Hours Tachometer,Engine Temperature Gauge RL-HM035A-TS002-1 Digital LCD Hours Tachometer,Engine Temperature Gauge RL-HM035A-M5 Digital LCD Hours Tachometer,Engine Temperature Gauge with bracket Buying Options Buying Options Buying Options Buying Options Buying Options Buying Options Customer Reviews 4.0 out of 5 stars 1,021 3.9 out of 5 stars 33 3.6 out of 5 stars 22 3.7 out of 5 stars 25 3.9 out of 5 stars 24 3.8 out of 5 stars 141 Diffference TS002 TS001 TS002-1 with 1 replaceable sensor TS003 TS002-1 TS002/HMB005 Mounting bracket Hours/SVC range 0 to 99,999 hours/5 to 1000 hours 0 to 99,999 hours/5 to 1000 hours 0 to 99,999 hours/5 to 1000 hours 0 to 99,999 hours/5 to 1000 hours 0 to 99,999 hours/5 to 1000 hours 0 to 99,999 hours/5 to 1000 hours RPM/Temp range 0 to 25000RPM/ -20-+220℃(-4°F-428°F) 0 to 25000RPM/-20-+220℃(-4°F-428°F) 0 to 25000RPM/-20-+220℃(-4°F-428°F) 0 to 25000RPM/-20-+220℃(-4°F-428°F) 0 to 25000RPM/-20-+220℃(-4°F-428°F) 0 to 25000RPM/ -20°C~+300°C(-4°F~+572°F) TOT initial hours ✓ ✓ ✓ ✓ ✓ ✓ PC display window protection ✓ ✓ ✓ ✓ ✓ ✓ Backlight color Green+Red Green+Red Green+Red Green+Red Green+Red Green+Red Signal pickup wire length 1.75m(68.80 inches) 1.75m(68.80 inches) 1.75m(68.80 inches) 1.75m(68.80 inches) 1.75m(68.80 inches) 1.75m(68.80 inches) Replaceable battery CR2032 210mAh CR2032 210mAh CR2032 210mAh CR2032 210mAh CR2032 210mAh CR2032 210mAh Product size/Screen size 70.00mm*37.00mm*18.00mm(2.76 inches*1.46 inches*0.71 inch)/41.20mm*17.20mm(1.62 inches *0.68 inch) 70.00mm*37.00mm*18.00mm(2.76 inches*1.46 inches*0.71 inch)/41.20mm*17.20mm(1.62 inches *0.68 inch

Características

• HOURS ---- Monitor the total run time(TOT) and single working hours(JOB) of gas engine, with ability to program previous hours(INT) for an replacement;Accomplish maintenance at recommend intervals to determine the due time(SVC);TOT & JOB hours range:0-999,99 hours;SVC timer range:5-1000 hours
• RPM ----- Display the real-time RPM readout by vairous engine firing patterns setting to adjust engine idle speed; Alert channel for revolution exceed reminder;Viewable highest revolution since the engine started; RPM measurement range: 0-25000RPM, Alert range: 100-25000RPM
• TEMP ---- Keep eyes on engine current and maximum temperature at all the times by probe senor(The induction probe cannot be bent to avoid breakage); Remind the temperature exceed for engine maintenance; Easy to switch between Celsius and Fahrenheit;Temp measurement & alert range: -20°C~+300°C(-4°F~+572°F)
• BACKLIGHTS ---- Default green backlight will help to use it at night or dim place, you can set the backlight mode by always-on, OFF and automatical mode(OFF default, button to wake up) as request;Red backlight will remind the engine RPM or TEMP exceed
• OTHERS ---- Easy to mount it on proper position by stick-on, screw-on and extra bracket(not include), one-wire connection with spark plug to pick up working signal (At least 5-8 circles tight winding; Total Length 68.8inches, workable if shorten or extend) to work right away;Favorable water and shock resistence; Battery capacity will be kept in good condition with insulation sheet during transport, it is repalceable;LCD shutdown also can extend the lifetime in vacant time
