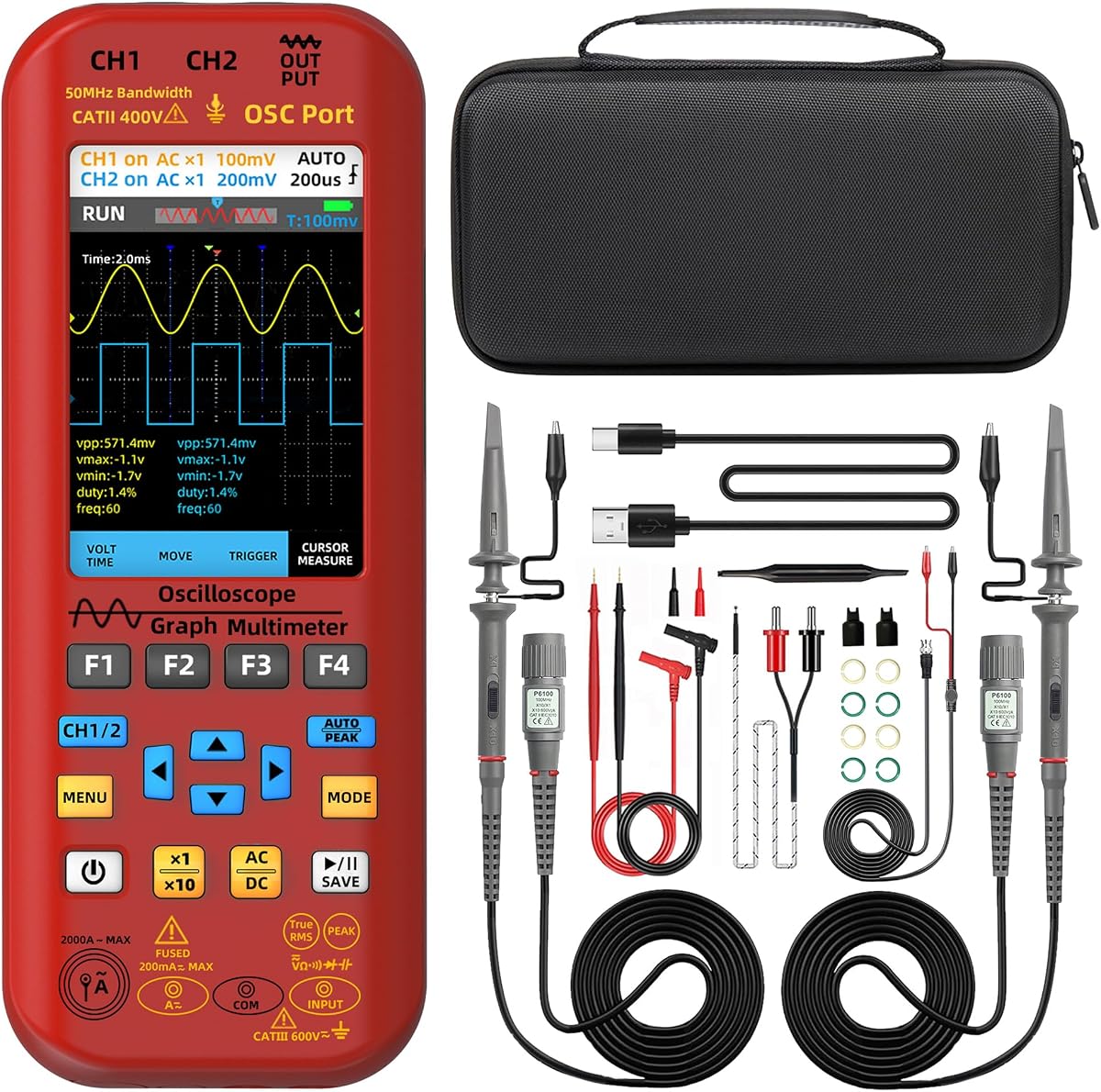

Multímetro de osciloscopio portátil, 2 canales de ancho de banda de 50 MHz con LCD TFT de 3,98 pulgadas, generador DDS recargable de 20000 cuentas, abrazadera de CA flexible, voltaje de diodo de tapa de amplificador de temperatura para bricolaje automotriz

Descripción

Features: 2 channel with 50MHz bandwidth 3.98 inch TFT display oscilloscope Rechargeable graph scope tester Portable smart digital multimeter tester Measures ac and dc current, capacitance and diode Measures ac and dc voltage, resistance, a-alert and continuity Measures flexible ac current clamp, temperature and live wire check Tested data can be saved and exported to your computer Rechargeable intelligent digital voltmeter with low battery indication Specifications: MAX Display: 20000 counts Bandwidth: 50MHz Channel: 2 Real-time sample rate: 250MSa/s Input Impedance: 1MΩ,@16pf Maximum input voltage: 300V (DC+AC peak) Horizontal SEC range: 100ns/div -20s/div Vertical sensitivity: 20mV/div -100V/div DC voltage: 20mV/200mV 0.001mV/0.01mV ±(0.1%+3); 2V/20V 0.0001V/0.001V/ ±(0.05%+3); 200V/1000V 0.01V/0.1V ±(0.5%+3) AC voltage: 20mV/200mV 0.001mV/0.01mV ±(0.1%+3); 2V/20V 0.0001V/0.001V/ ±(0.05%+3); 200V/750V 0.01V/0.1V ±(0.5%+3) DC current: 20mA/200mA 0.001mA/0.01mA ±(0.1%+3) AC current: 20mA/200mA 0.001mA/0.01mA ±(0.1%+5) Flexible AC Current: 200A/2000A 0.1A/1A ±(1.0%+5) Resistance: 200Ω 0.01Ω ±(0.5%+3); 2kΩ/20KΩ/200KΩ 0.001KΩ/0.01KΩ/0.1KΩ ±(0.2%+3); 2MΩ 0.0001MΩ ±(0.5%+3); 20MΩ/200MΩ 0.001MΩ/0.01MΩ ±(1%+5) Capacitance: 999.99nF 0.01nF ±(4.0%+10); 9.999µF/999.9µF 0.001µF/0.01µF ±(2%+5); 99.999mF 0.001mF ±(4%+10) Temperature: -20℃~1000℃/-4℉-1832℉ 1℃/1℉ ±(2%+5) Diode: Yes Continuity: Yes Output Waveforms: sine wave, square wave, triangle wave, full wave, half wave, sawtooth wave, dc wave Frequency range: 0-2MHz Output Amplitude: 0.1-3V Square Wave Duty Cycle: 1%-99% Power: 2*Rechargeable Li-ion battery Size: 216.6 x 84.5 x 36 mm Weight: 384g Package Includes: 1 x Portable Oscilloscope Multimeter 2 x Oscilloscope Probe 1 x BNC to Double-Headed Alligator Clip Test Leads 1 x Test Leads 1 x Thermocouple 1 x Carrying Case 1 x Charging Cable 8 x Marker Rings 1 x Adjustment Tool 2 x IC Test Protection Caps 1 x User Manual Note: The flexible ac current clamp are not included in the package

Características

• [2 Channel 50MHz Bandwidth]: Handheld oscilloscope multimeter features dual channels, 50MHz bandwidth, 250MSa/s sampling rate, 128kb record depth, etc.
• [20000 Counts Multimeter]: Multimeter tester measures voltage, current, flexible ac clamp, capacitance, diode, temperature, resistance, continuity. Widely used in automotive, electronic, electricity, factory, school, enthusiasts, etc.
• [DDS Signal Generator]: The signal generator can output six waveform: sine wave, square wave, triangle wave, full wave, half wave, sawtooth wave, dc wave. Frequency range: 0-2MHz. Output Amplitude: 0.1-3V.
• [3.98” Color Display]: Portable oscilloscope multimeter equipped with super-large 3.98 ich lcd, which provides you with best reading experience in different working environment.
• [5000mAh Rechargeable]: BSIDE O9 multimeter comes with rechargeable 5000mAh rechargeable battery, ensuring that you never have to worry about running out of power during your measurements.
• [Soft Silicone Protective Case]: Handheld oscilloscope equipped with full-body soft silicone case that provides a comfortable feel and protection against shocks, friction & bumps.
• [Flexible AC Current Measurement]: Smart digital multimeter measures flexible ac current accurately up to 2000A. The flexible clamp wire were not included.
• [Data Storage and Export]: The data of this lab scope tester can be saved and exported to your computer, laptop or pc, etc.
