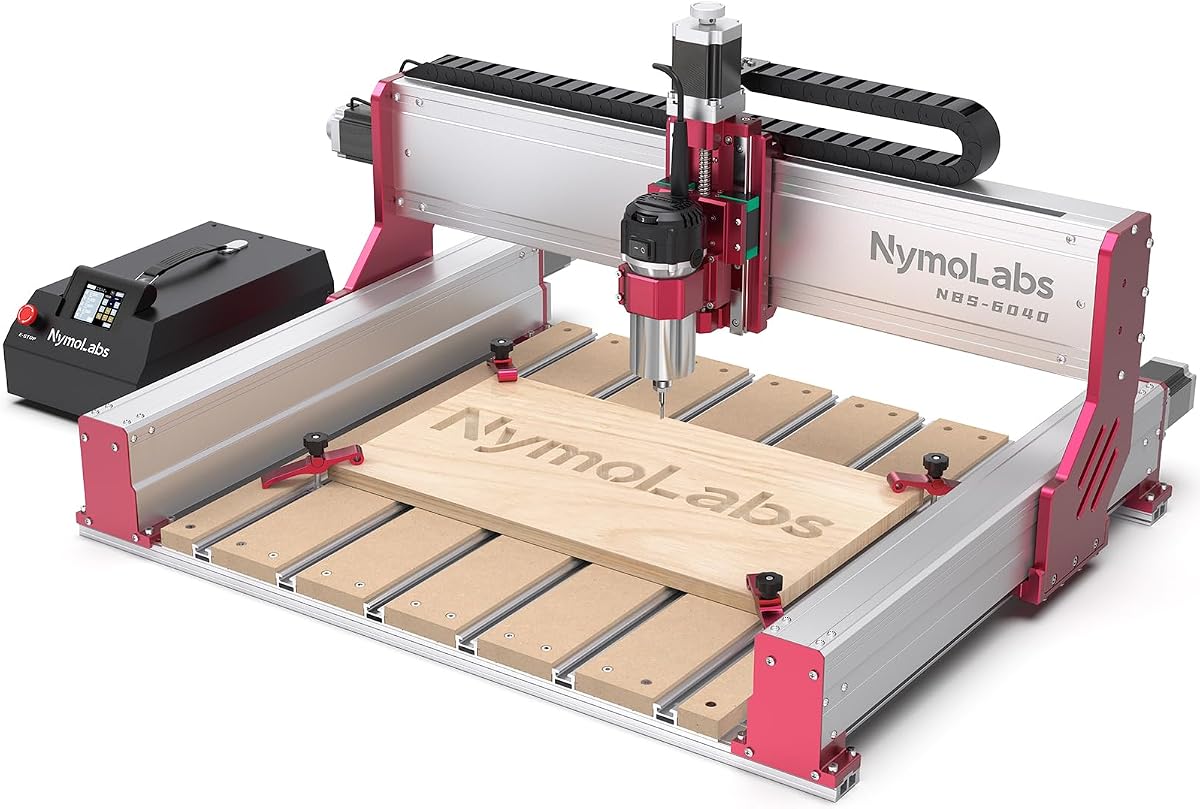

NBS-6040 CNC Router Machine, 710W Spindle for Wood Acrylic & Metal

Descripción

Product description NBS-6040 NBX-5040 Add to Cart Add to Cart Customer Reviews 4.6 out of 5 stars 41 4.6 out of 5 stars 12 Price $1,799.00$1,799.00 $1,199.00$1,199.00 Work Area 600*400*115mm 500*400*95mm Overall Dimensions/KGS 950*765*505mm/60kg 846*726*461mm/45kg Spindle Motor SP7AJ-ER11 120V 710W customized spindle 7000-30000RPM stepless adjustable; Knob adjustment SP7AJ-ER11 120V 710W customized spindle 7000-30000RPM stepless adjustable; Knob adjustment 3-Axis Stepper Motors/Stepper Driver NEMA23 76mm 1.89N.m / DM542 NEMA23 76mm 1.89N.m / DM542 Max Speed 4800mm/min 4800mm/min Rails Size & Type X*2-Z axis: HG15 linear guide; Y axis: HG20 linear guide X*1-Z axis: HG15 linear guide; Y axis: dual 20mm Steel HSS linear tubes Ball Screws Size & Type X-Y axis: 1605 ball screw; Z axis: 1204 ball screw X-Y axis: 1605 ball screw; Z axis: 1204 ball screw Access Accessories Comes with Offline Controller / MPG & 4th Axis & Dust Shoe(Purchase Yourself-Coming soon) Comes with Offline Controller / MPG & 4th Axis & Dust Shoe(Purchase Yourself-Coming soon) Supported Extension Ports: Z Probe / Laser Module/ 12V, 24V Power Interface ✓ ✓ X Y Z Limit Switches/Emergency Stop ✓ ✓ More Machine Details NymoLabs 7000-30000RPM CNC Trim Router Spindle Motor with 1/8" ER11 Collet Set, 710W/110V, Φ65mm High Performance Spindle Its soft start, and constant current drive features, make the spindle RPM slow to fast without stalling. Heat Dissipation Vents Design Top vents are designed for high-efficiency heat diffusion to ensure the machine runs better. 6-speed Adjustable Adjustable from 7000 to 30,000 RPM for a variety of materials. Mastering Runout in Precision Machining Specially customized for CNC engraving machines, the tool runout is within 0.05mm, ensuring engraving accuracy. Package List NBS-6040 Assembly AccessoriesMDF & Aluminum Hybrid SpoilboardAssembly Tools710W Router Spindle&Φ65mm Spindle Holder1 × CNC Bits1 x Z-Probe Kit4 × 100mm Hold Down Clamp 1 × USB Cable1 × AC Power Cable1 × User Manual NBS-6040 CNC Engraving Showcase

Características

• NymoLabs Custom-made 710W Router: The NBS-6040 features the Self-developed Trim Router as a spindle, a Second-to-none move in the market. Its soft start, and constant current drive features, make the spindle RPM slow to fast without stalling, ranging from 7000 to 30000 adjustable
• Linear Rails & Ball Screws on Every Axis: The NBS-6040 uses linear rails and ball screws on every axis for increased productivity and accuracy. These are built for much larger, heavier machines and maintain the rapid movement that 6040 has always been capable of while adding a ton of rigidity
• Based on Open-source Grbl v1.1: The NBS-6040 CNC router features the driver with 32-bit chips, making the pulse frequency up to 80 KHZ. It also supports transforming the code files from offline controller to local memory to engraving stabler
• Create a New and Friendly Maker Ecology: we reserved a series of expansion function ports when designing, including the fourth-axis expansion (four-axis linkage), MPG, Z probe tool set, air pump port, lighting port, air blowing, and dust boot placement,.etc
• Modular Design: The pre-assembled modular design makes the 20-minute installation possible, with just a few installation steps and wiring of electronics before starting your projects. Now with a larger working area (24.12" x 16.21" x 4.80")
• TFT Touchscreen Offline Controller: With a 2.8” touchscreen display, the NBS-6040 offline controller makes controlling your engraving machine simple and convenient. Users can operate 6040 manually, or put it on the Electric Controller Box reserved placement
• Tips: ER11 Collet Gripping Range: 1-8mm, 1/4", 1/8". The ER-11 Router is made for use in CNC machines so we skip all of the bases and jigs that won't be used anyway. The 1/4",1/8" collet is included in the package
