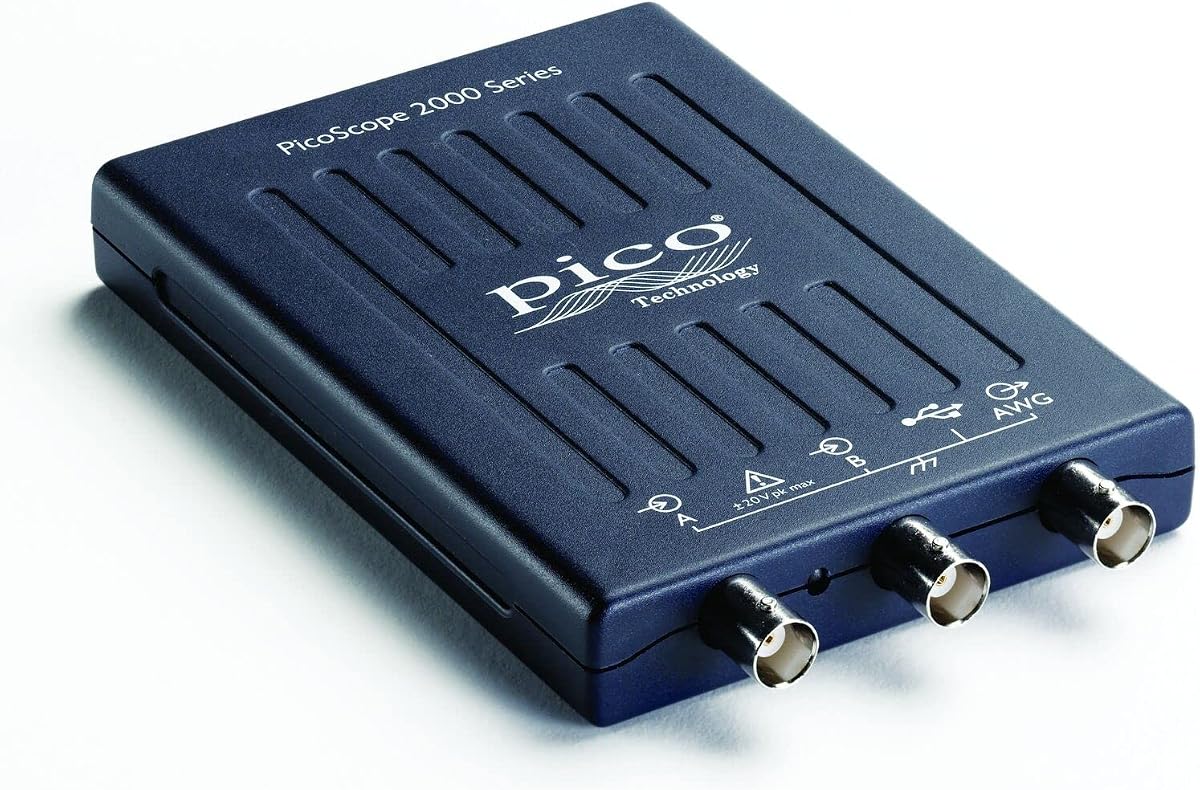

PicoScope 2204A-D2 Osciloscopio digital 2 canales 10 MHz, 8 kS, 2000wfms/s, generador de forma de onda de alcance de laboratorio para PC USB portátil, software PS7

Descripción

Product description 2204A-D2 2 Channel Oscilloscope Like a benchtop oscilloscope, only smaller and better Introducing the PicoScope 2000 series oscilloscope: a compact, powerful tool combining six instruments in one. Travel-friendly and ideal for small-scale setups, it fits in a laptop bag. With USB connectivity, consistent PicoScope 7 software, analog/digital channels, 10 MHz bandwidth, it's perfect for on-the-go measurements. The PicoScope 2000A models deliver unbeatable value and are ideal for education, hobby and field service use. The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. PicoScope 2000 Series Overview | Pico Technology PicoScope 2204A-D2 Oscilloscope Small on the outside, big features inside… Instantly use your PicoScope 2000 Series as an advanced oscilloscope, spectrum analyzer, function generator, arbitrary waveform generator and protocol decoder out of the box.Ultra-compact design, USB connected and powered.10 MHz bandwidth, 8 kS buffer memory and up to 12 bit improved vertical resolution.PS7 Software for Windows, Linux, Mac included plus USB cable and Quick Start Guide.10,000 waveform circular buffer, 2000 waveforms per second update rate and Mask limit testing. 2204A-D2 2 Channel Oscilloscope Your complete test & measurement laboratory At the heart of every PicoScope 2000 is an advanced oscilloscope which offers everything you would expect and much more besides: 10,000 waveform circular buffer2000 waveforms per second update rateMask limit testing, Advanced math & filteringMeasurements with statistics and Advanced digital triggering Does this come with probes? No, The 2204A-D2 comes with a USB cable and Quick Start Guide Does this come with Software? Yes, Our PS7 Software is included and can be downloaded including updates. With support for 27 languages. What is the bandwidth? 10 MHz Bandwidth, 8 kS buffer memory and up to 12 bit improved vertical resolution What does the PicoScope 2204A-D2 offer? You can use your PicoScope 2000 Series as an advanced oscilloscope, spectrum analyzer, function generator, arbitrary waveform generator and protocol decoder out of the box. Investment To protect your investment, both the PC software and firmware inside the scope can be updated. Pico has a decades-long history of providing new features for free through software downloads. PicoScope 7 Software The next-generation user interface for any real-time PicoScope. PicoScope 7 has all the analysis tools you need to get answers quickly, whether carrying out a simple test, or debugging a complex design. New features are continuously being added through free software upgrades, meaning your PicoScope will keep improving! With support for 27 languages, PicoScope 7 allows easy global collaboration.Complex waveforms can be viewed in detail using full-screen mode.Easily interact with the software using a touchscreen or mouse. Change between light and dark mode. The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. PicoScope 7 Software PicoScope 2204A-D2 2 Channel Oscilloscope Specifications Bandwidth 10 MHz Vertical resolution 8 bits Enhanced vertical resolution 12 bits Input ranges ±50 mV, ±100 mV, ±200 mV, ±500 mV, ±1 V, ±2 V, ±5 V, ±10 V, ±20 V DC accuracy ±3% of full scale ±200 μV Maximum sampling rate 100 MS/s (real-time)* Equivalent sampling rate 2 GS/s (ETS mode) Maximum sampling rate 1 MS/s (USB streaming) Buffer memory (block mode)* 8 kS Buffer memory 100 MS (shared between active channels) (USB streaming mode) Waveform buffers 40 000 Maximum waveforms per second 2000 Initial timebase accuracy ±100 ppm Channels 2 Channel Model 2204A-D2 includes: USB cable and Quick Start Guide For Automotive? The 2204A-D2 will not run with our PicoScope 7 Automotive software, predominately to protect the device from the typically harsh “Auto” environments. No access to our 160 guided tests and our waveform library of over 11,000 specialist waveforms. Please view our Automotive 4225A/4425A range via our Amazon store front. PicoScope 2000 Series Oscilloscopes PicoScope 2204A-D2 Add to Cart PicoScope 2205A Buying Options PicoScope 2205A-D2 Buying Options PicoScope 2206B Add to Cart PicoScope 2206B MSO Add to Cart PicoScope 2207B MSO Add to Cart PicoScope 2407B Buying Options Customer Reviews 4.7 out of 5 stars 148 4.5 out of 5 stars 29 4.2 out of 5 stars 14 5.0 out of 5 stars 17 4.0 out of 5 stars 1 5.0 out of 5 stars 1 — Price $153.00$153.00 — — $469.00$469.00 $749.00$749.00 $969.00$969.00 — Probes ✘ ✔ ✘ ✔ ✔ ✔ ✔ PS7 Software ✔ ✔ ✔ ✔ ✔ ✔ ✔ Bandwidth (MHz) 10 MHz 25 MHz 25 MHz 50 MHz 50 MHz 70 MHz 70 MHz Channels 2 2 2 2 2 + 16 digital channels 2 + 16 digital channels 4 Memory 8 kS 16 kS 16 kS 32 MS 32 MS 64 MS 64 MS Sample Rate 100 MS/s 200 MS/s 200 MS/s 1 GS/s 1 GS/s 1 GS/s 1 GS/s Mixed Signal Oscilloscope

Características

• Use your PicoScope 2000 Series as an advanced oscilloscope, spectrum analyzer, function generator, arbitrary waveform generator and decode over 30 serial protocols as standard out of the box.
• PicoScope 2204A-D2 2 Channel Oscilloscope kit includes: USB 2.0 cable (USB 3.0/3.1 compatible) and Quick Start Guide.
• 10 MHz bandwidth, 100 MS/s maximum sampling rate, 8 kS capture memory and Up to 12 bits enhanced vertical resolution.
• Ultra-compact design, USB connected and powered. Travel-friendly and ideal for small-scale setups, it fits in a laptop bag. Unique commitment to product support, with regular free software updates and lifetime support provided by our technical team.
• PS7 Software for Windows, Linux and Mac. PicoScope 7 has all the analysis tools you need to get answers quickly, whether carrying out a simple test, or debugging a complex design. New features are continuously being added through free software upgrades, meaning your PicoScope will keep improving!
• This device is not compatible with PicoScope 7 Automotive Software. If you are looking for an automotive device, please view our 4425A/4225A PicoScopes.
• At the heart of the PicoScope 2204A-D2 is an advanced portable 2 channel oscilloscope which offers everything you would expect and much more besides: 10,000 waveform circular buffer, 2000 waveforms per second update rate, Mask limit testing, Advanced math & filtering, Measurements with statistics and Advanced digital triggering.
