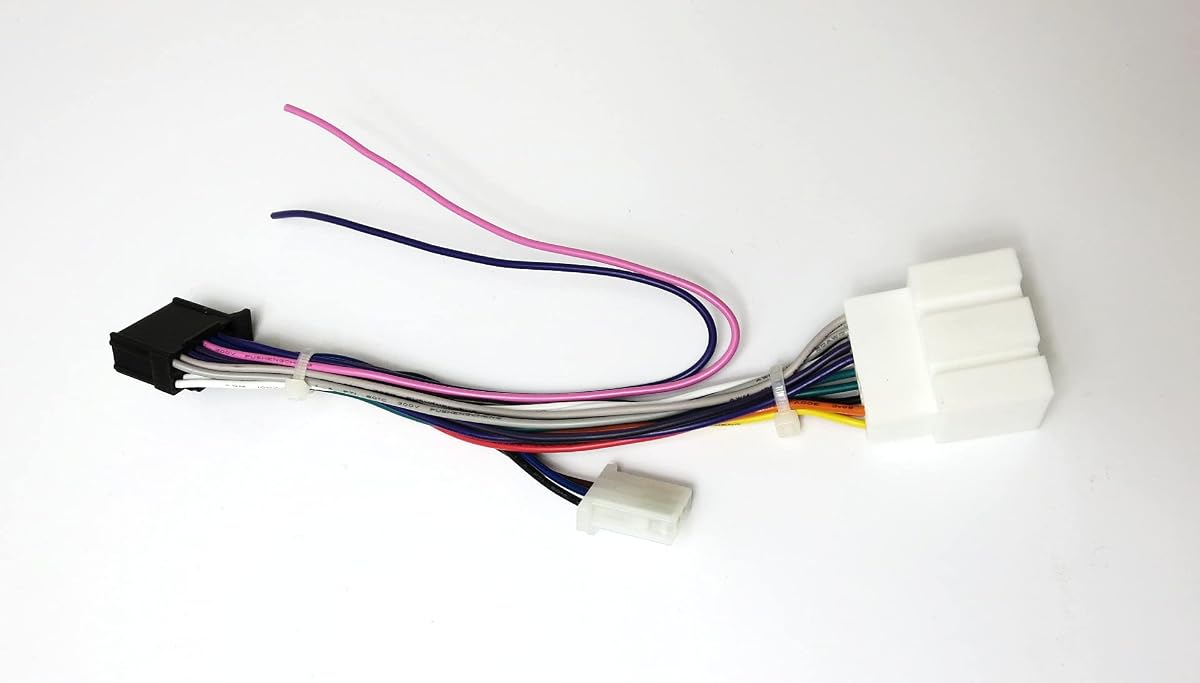

Pioneer Stereo Wiring Harness Compatible with 1998-2005 Ford Vehicles (Also Lincoln/Mercury) - AutoHarnessHouse.com turbowire Compatible with Mustang F150 and Ranger

Descripción

Product description AHH-70-1771 Installation Diagram Get Ready for the Cleanest/Simplest Audio Install that You've ever done! The Pioneer connector is pre-wired to the Metra 70-1771 style connectors compatible with your Ford/Lincoln. All you need to do is plug it in! You will also need to connect the Reverse, Vehicle Speed, and E-brake signals (or E-brake Bypass module) if you need these features. Metra 70-1771 type connector is prewired to the Pioneer connector. Details Fits only Pioneer models (See Compatibility List below)Connect your Pioneer NEX or App Radio headunit directly to your Vehicle with minimal wire soldering/crimping and without damaging factory wire!We use only high quality, large diameter wire and connectors. You will not be disappointed.Reverse signal is provided from the Pioneer connector.Does NOT include the Parking Brake Bypass Module. The AutoHarnessHouse.com parking brake bypass module is plug and play with this adapter. (this module is sold separately)Instructions Included Vehicle Compatibility Information - Please make sure that BOTH your Vehicle and Pioneer Headunit are listed! Ford F150: 1999-2003 F250/F350/F450/F550: 1999-2004 Crown Victoria: 1998-2002 Escape: 2001-2003 Escape: 2004-2007 without factory Subwoofer Excursion: 2000-2005 Expedition: 1999-2002 Explorer: 1998-2005 Explorer Sport Trac: 2001-2005 Mustang: 2001-2003 Ranger: 1998-2011 Thunderbird: 2002-2003 Windstar: 1999-2003 Lincoln Aviator: 2003 early production Blackwood: 2001-2003 Continental: 1998-2002 LS: 2000-2003 Navigator: 1999-2003 Town Car: 1998-2002 Mazda B-Series: 1998-2009 Mercury Grand Marquis: 1998-2002 Cougar: 2001-2002 with dual media or 6 disc in-dash Mountaineer: 1998-2003 Mountaineer: 2004-2005 without factory subwoofer Villager: 1999-2002 Pioneer Headunit Compatibility Information Pioneer AVH Models: AVH-120BT, AVH-1300NEX, AVH-1330NEX, AVH-1500NEX, AVH-1550NEX, AVH-190DVD AVH-200EX, AVH-201EX, AVH-210EX, AVH-211EX, AVH-220EX, AVH-241EX, AVH-270BT, AVH-290BT, AVH-291BT, AVH-2330NEX, AVH-2400NEX, AVH-2440NEX, AVH-2500NEX, AVH-2550NEX, AVH-310EX, AVH-3500NEX, AVH-4100NEX, AVH-4200NEX, AVH-500EX, AVH-521EX, AVH-600EX, AVH-601EX, AVH-W4400NEX, AVH-W4500NEX AVH-X2800BS, AVH-X391BHS, AVH-X4800BS, AVH-X490BS, AVH-X491BHS, AVH-X5800BHS, AVH-X7800BT, AVH-ZL5150BT Pioneer AVIC Models: AVIC-5100NEX, AVIC-5200NEX, AVIC-5201NEX AVIC-6200NEX, AVIC-6201NEX, AVIC-7200NEX, AVIC-7201NEX, AVIC-8200NEX, AVIC-8201NEX AVIC-W6400NEX, AVIC-W6500NEX, AVIC-W8400NEX, AVIC-W8500NEX Pioneer DEH Models: DEH-80PRS Pioneer DMH Models: DMH-100BT, DMH-130BT, DMH-160BT, DMH-1500NEX, DMH-2600NEX, DMH-2660NEX, DMH-C5500NEX, DMH-C2550NEX, DMH-C2500NEX, DMH-W4600NEX, DMH-W4660NEX, DMH-WC6600NEX, DMH-WT7600NEX, DMH-WT8600NEX Pioneer MVH Models: MVH-AV251BT, MVH-AV290BT, MVH-1400NEX, MVH-210EX, MVH-211EX, MVH-2400NEX, MVH-300EX, MVH-S310BT Pioneer AppRadio Models: SPH-DA02 AppRadio, SPH-DA01 AppRadio, SPH-DA120 AppRadio 4, SPH-DA210 AppRadio 3, SPH-DA100 AppRadio 2, SPH-10BT AutoHarnessHouse.com Parking Brake Bypass Module Don't want to connect a wire to your parking brake? Check out the AutoHarnessHouse Parking Brake Bypass module! Installation couldn't be easier. This module connects directly into the Pioneer direct wire adapter listed in this listing! Just plug it in and forget about it! See More

Características

• Plug and play installation of a Pioneer double din car stereo (or single din radio) using the existing factory wiring. ONLY FITS A PIONEER RADIO. (Fits Pioneer radio systems newer than 2017)
• Used for F150 Stereo Upgrade to install a double din pioneer headunit or to add an aftermarket Pioneer touchscreen with carplay to a Ford Mustang or Ford Ranger vehicle. See compatibility below.
• Connects Speaker signals and Power wiring. Has a connector for the Parking Brake Bypass module. Plug and play Install for the Pioneer E-brake bypass!
• Metra 70-1771 or Scosche FD16B type connector is wired to the Pioneer connector. Similar to the ford radio harness FDK13B but will need both if your vehicle has the amplifier connection. Also PAC FD11
• Pink wire does not need to be connected unless the Pioneer headunit has built-in Navigation. Wireless carplay is not built in and will not require connection. The purple wire is the reverse signal.
