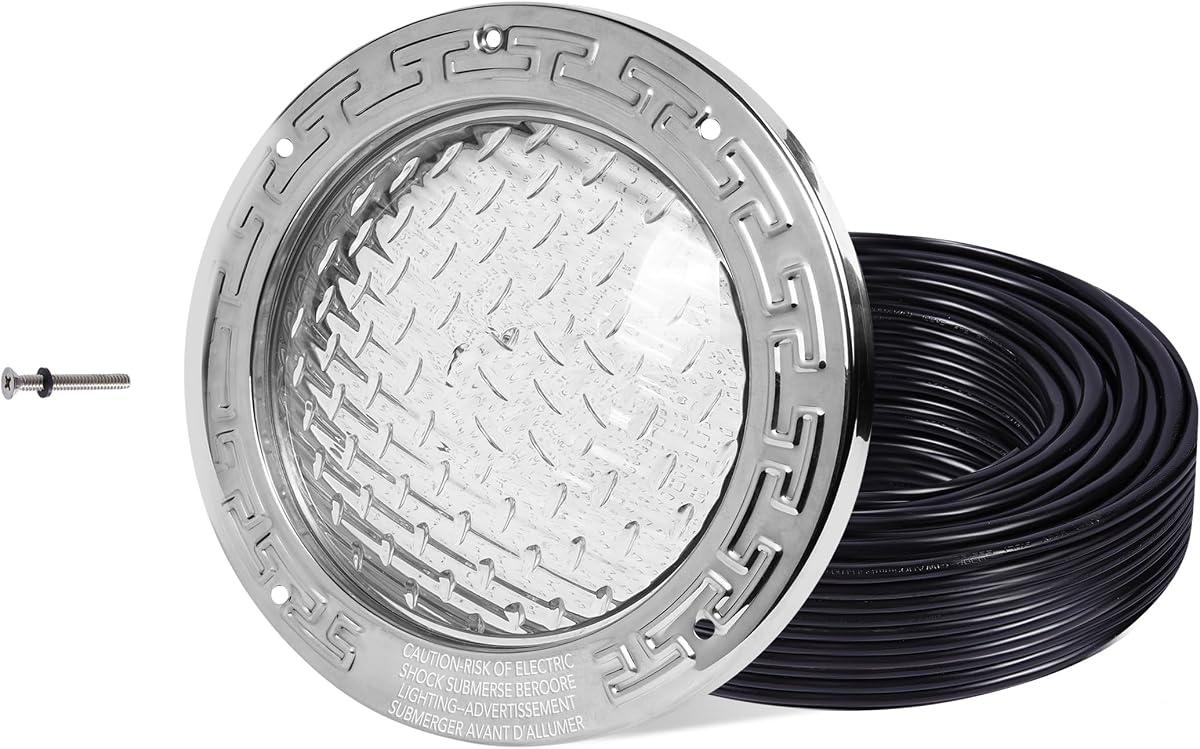

PN01 LED Inground Pool Lighting System 120V AC 10 Inch 40W, 6500K Cool White, 100 Feet Cord

Descripción

Product description How Our Pool Lights Connect to Your System: See Below The Power Box must be placed between the junction box and the pool light. If there is no junction box in place, the Power Box must be installed on a dedicated line, positioned between the 120VAC power source (Panel, Switch, Timer, etc.) and one pool light. One Power Box power one light. Previous page Power Setup Overview Plan wiring and power box placement as shown in the diagram. 120 VAC Power Step 1: 120 VAC Power Runs from the Breaker Box(Panel) to the Switch,Timer. Split via J-Box Step 2: 120 VAC Power Runs from the Switch/Timer to the J-Box (if it exists). Step Down Voltage Step 3: 120 VAC Power Runs from the J-Box to our Power Box. 120 VAC Converts into 12-15 VDC. 12-15 VDC to Light Step 4: 12-15 VDC Runs from the Power box through the 2C Rubber Cable to the Pool Light. Next page 1 Power Setup Overview 2 Breaker to Switch 3 Switch to J-Box 4 J-Box to Power Box 5 Power Box to Light Match Your Pool Niche – Check the Diagram Below Does it come with a light bulb, or do I need to buy one separately? No, this is an all-in-one LED light with integrated SMD LEDs. The light fixture includes the face ring, lens, and rear cover, all of which are securely sealed. There's no need (or place) to disassemble the light or install a separate bulb. Do I need to purchase a separate transformer for this pool light? An isolated transformer is included in the power box, that converts 120V AC to 12-15V DC, powering the LED pool light safely. Our pool lighting system uses 120V AC as the power supply, with no need for extra components or modifications. What types of pools can this light be installed in? And what model of wet niche can this pool light fit into? This pool light is suitable for concrete/vinyl/fiberglass inground pool. A wet niche is required for installation, and this pool light is compatible with the following brands and models: Pentair, Hayward DuraNiche, JiffyNiche, Sta-Rite,Jacuzzi,Jandy. What is the power box used for? What size conduit does it fit? The control box includes a transformer and controller. It steps down 120V AC to 12V DC and transmits commands from a remote or smartphone to the light. The box is designed for compatibility with 1/2" conduits, ensuring easy installation. Can I connect multiple lights to one transformer or controller? No, each pool light needs its own controller and transformer (both are included). However, you can sync multiple lights by pairing one remote with multiple controllers, ensuring unified operation while maintaining proper power distribution. Find the Perfect Pool Light for Your Needs PN Series 10" Pure White PN Series 10" Color-changing LUMORA 10" Color-changing Options to Control Pool Lights A switch is needed on the 120V AC power wire. Options to Control Pool Lights Remote Control, App Control (Includes Alexa and Google Assistant). Options to Control Pool Lights Remote Control, Wall Panel, App Control (Includes Alexa and Google Assistant). Parts and Accessories Transformer, Rainproof Power Box,100' cord LED light. Parts and Accessories Transformer, Controller, Rainproof Control Box, Remote,100' cord LED light. Parts and Accessories Transformer, Controller, Rainproof Box, Remote, Panel, 100' cord LED light. Rainproof Control Box Details PN03DCB, 9" Tall ✖ 5.5" Wide ✖ 3" Deep, Available for 1/2" Conduit Rainproof Control Box Details PN03DCB, 9" Tall ✖ 5.5" Wide ✖ 3" Deep, Available for 1/2" Conduit Rainproof Power Box Details PA25-10-1J, 9" Tall ✖ 9" Wide ✖ 4" Deep, Available for 1/2" Conduit

Características

• 【Instalación fácil y completa】 – Incluye luz para piscina, cable de 100 pies y unidad de control/alimentación (colocada entre la caja de conexiones y la luz), diseñada para una instalación rápida con el cableado de piscina existente.
• 【 LED todo en uno, listo para usar 】 – Diseño totalmente integrado con todos los LED SMD integrados en el interior. No es necesario comprar bombillas adicionales ni desarmarlas: simplemente instálelas y disfrute de una iluminación duradera.
• 【Seguridad eléctrica superior】 – La unidad de control/alimentación incluida convierte 120 V CA en 12 V CC (SELV), proporcionando un suministro de bajo voltaje que es completamente seguro para el cuerpo humano.
• 【 Standard Fit 】 – This light requires a wet niche/housing for installation and is designed to fit standard 10-inch niches. It secures firmly in place with a 12 o’clock pilot screw and 6 o’clock notch.
• 【Descargo de responsabilidad】 – Pentair, Hayward, Jiffy, Sta-Rite, Jacuzzi y Jandy son marcas propiedad de sus respectivas compañías. HQUA Tech no posee, otorga licencia ni reclama ningún derecho sobre estas marcas, y no está afiliado, respaldado ni patrocinado por ninguno de sus propietarios.
• 【Alta eficiencia, bajo consumo de energía】 Proporciona una salida de luz blanca brillante equivalente a una luz incandescente de 300 W con mucho menos consumo de energía.
