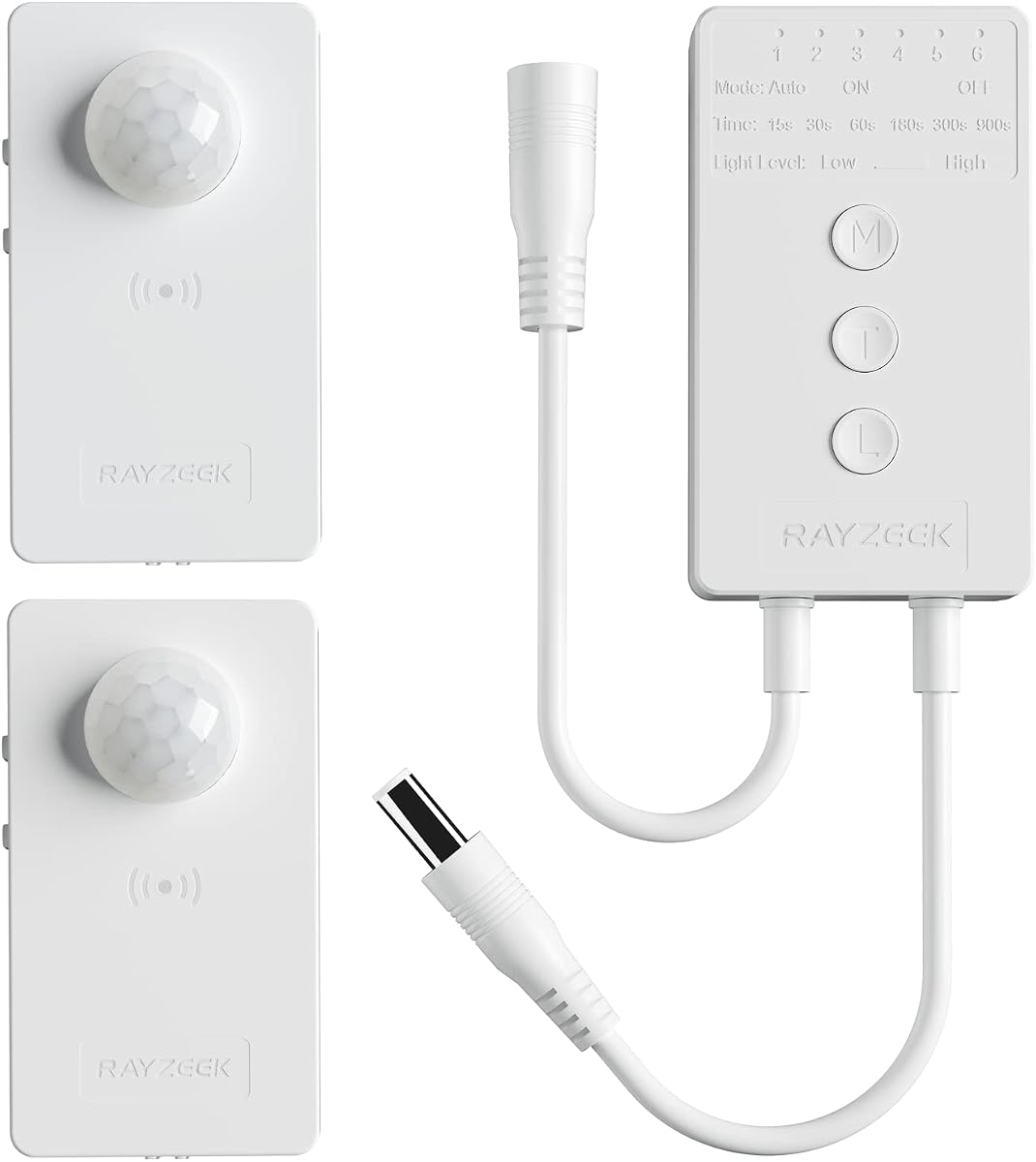

RAYZEEK Wireless Motion Sensor Controller Kit-No Wiring Mini PIR Sensor Switch 12/24VDC RF Wireless Control Led Strip Lights with Dimmable,Timer for Stairway(1 ×Controller+2 ×Motion Sensor)

Descripción

Product description Rayzeek Wireless Motion Sensor and Controller Receiver Kit（1+2） Do you want to place the sensor wherever you want instead of being fixed where there is a plug? Do you want to get rid of the traditional sensor and adjust the delay time without using screws? Rayzeek Wireless Motion Sensor and Controllers-Receiver Kit can widely used to control a DC 12~24V load, Led lights, Led strip lights, Other devices that require automatic illumination or alarm functions. You can easily control your life needs with the touch of a button, place any location you need for sensor control, create ambiance and light up your life. A complete Kit: 2x Motion sensor(RZ016W) 1x Controller-Receiver(RZ016A) 4x Screws 3x Double Sided Tape RZ016A Contoller-Receiver Input Voltage:DC 12~24VOutput Voltage: Equal to input voltageLoad Current: ≤5AStatic Power: ≤10uAMode: Auto/ON/OFFTime Delay: 15s.30s. 60s.180s. 300s. 900s. AdjustableLight Level: 20%~ 100% Adjustable RZ016W Motion Sensor-Emitter Input Voltage: 2pcs AAA batteries powered(Not include)Output Voltage: Equal to input voltageMode: 1. Sensor ON/OFF 2. Light Sensor ON(≤35Lux)/OFFDetect range: 5~8 MetersWireless transmission range: 7-20 Meters (7M when batteries voltage is lower than 2.5V) The Wireless Motion Switch Kit is designed for reliable lighting control and extended motion detection range. It can be easily mounted on the wall without the need for any wiring. When motion is detected, the switch sends a signal to the receiver sensor, which processes the signal and controls the lighting fixture. This feature is particularly useful in narrow corridors, stairs, and large spaces. Features: Extended range for option detection and reliable lighting controlQuick and easy wall mounting without any wiringCommunication range: 7-20 meters Tip: Motion sensor(RZ016W) when sensing movement,the lens will flash red light and then orange light, flashing orange light means that the sensor is not sensing person at the moment

Características

• 【Controller-Receiver RZ016A】It's the main controller, which is connected to the load whose input/output are DC12-24V. The RZ016A turns On/Off the load by pressing the button or by receiving the wireless signal from the motion sensor(RZ016W)
• 【Wireless Motion Sensor-Emitter RZ016W】It's a Motion sensor and a wireless emitter powered by 2pcs AAA(not included batteries).It can detect movement by detecting Infrared ray emitted by human body. When it detects motion, it will give out a RF signal to the main controller RZ016A to turn on/off the sensor
• 【Multi-Function Mode】You can adjust the 3 Mode(Auto,On,off) /Time-delay (15s, 30s, 60s, 180s, 300s, 900s) and Light Level (20% -100%)through the buttons of the RZ016A.You can also adjust Light Sensor through RZ016W.If the light sensor is ON:the lux value default setting is 35Lux. The sensor will only detect motion when the ambient brightness is≤35Lux.If the light sensor is OFF:the sensor will detect motion all the time.You can switch it anytime according to your needs
• 【Long Life and Signal Strength】Uses 2pcs AAA batteries,the duration time can be at least for 1 year based on the Ultra-Low-Power technology.Strong signal and detection distance: 5-8 meters
• 【Wide Application】Widely used to control LED strips,etc.For your stairs, living rooms, kitchens, bedrooms
