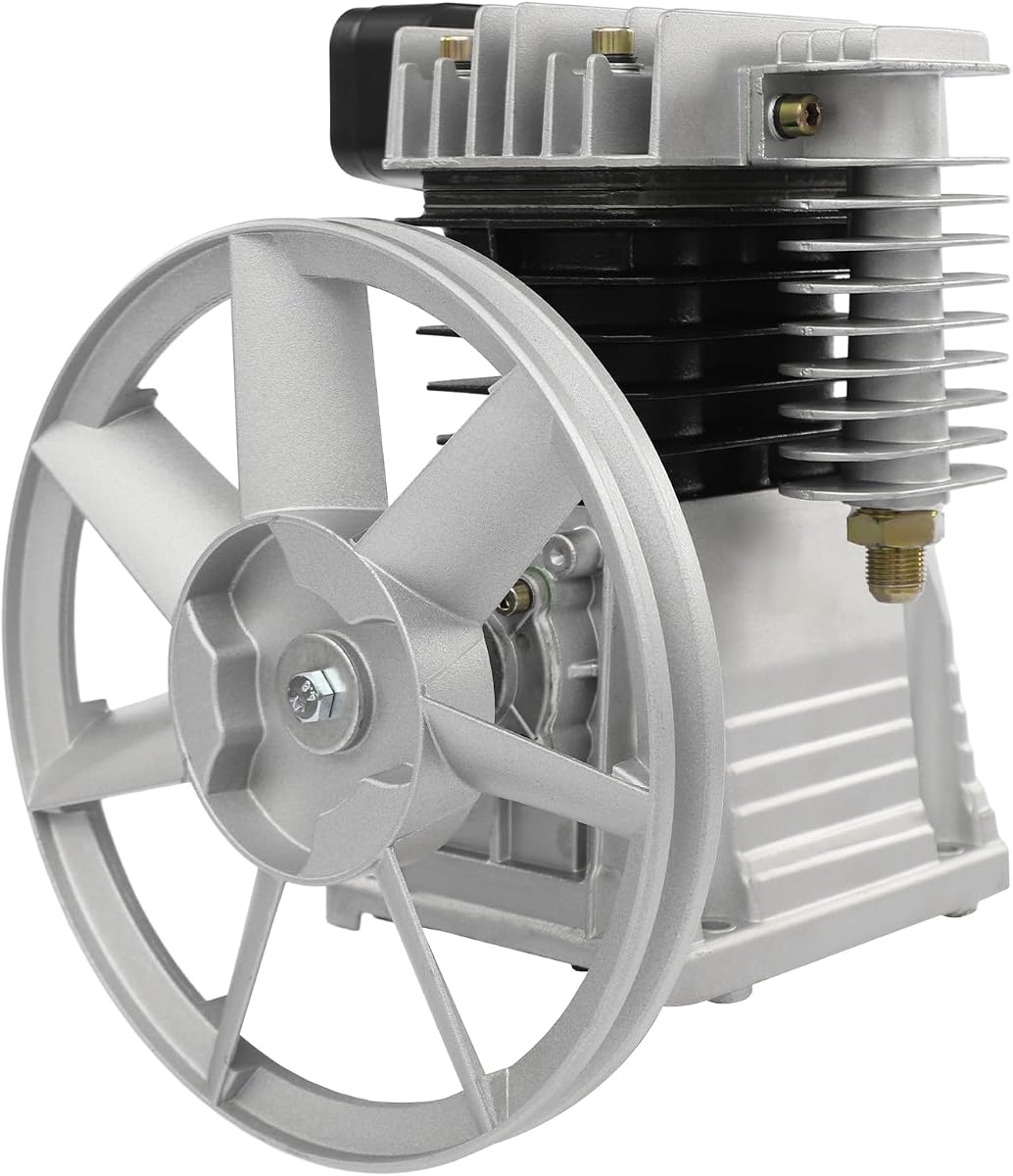

Reemplazo del cabezal de la bomba del compresor de aire industrial de 2HP, 7.06CFM 145PSI Presión máxima de una etapa de doble cilindro estilo pistón bomba de compresor de aire de aluminio lubricada con aceite con silenciador de filtro de aire

Descripción

DescriptionAn air compressor pump head is a paramount ally in professional endeavors. It adopts precision-engineered mechanics, elegantly merging utility with efficiency to augment your work.DetailsAir Filter Muffler: It can deliver clean, contaminant-free air to the pump with low noise.Maintenance1. The air filter needs to be cleaned once a month and needs to be replaced after 500 hours of work.2. Please change the oil in the crankcase after the shutdown. Change the oil once in the first week of a new machine and every 500 hours (after shutdown) thereafter.3. Regularly check the parts to prevent oil and air leakage.4. Regularly check the safety valve, air release valve, pressure gauge, and safety valve air hole.SpecificationsModel: 2055Color: Silver & BlackMaterial: Aluminum & IronProcess: PaintingAssembly Required: YesHorsepower: 2HPMounting Type: Mounting on Air Compressor(Not Included)Matching Motor Power: 1.5KW(2HP)Discharge Volume: 200L/Min((7.06CFM))Rated Exhaust Pressure: 8Bar(115PSI)Maximum Pressure: 10Bar(145PSI)Cylinder Diameter: 55mm(2.17in)Pulley Outer Diameter: 260mm(10.24in)Item Size: 32x26x35cm(12.6x10.24x13.78in)Net Weight: 10kg(22lb)Package Includes1x Air Compressor Pump HeadOther Accessories for AssemblyNote1.Before matching, you should pay attention to the air supply pressure, exhaust volume per minute, rated power, mounting aperture, header connecting pipe caliber, and the number of cylinders.3.Before repairing, maintaining or disassembling the machine, please make sure to stop the machine and cool it down after relieving the pressure before operation.4.The parts need to be cleaned and dried after assembly and please do not use too much force when disassembling and assembling parts.The machine is rated pressure and can not be adjusted upward.

Características

• 【Wide Applications】- As the core component of the compressed air system, Hysinwier twin cylinder air compressor pump head achieves efficient air compression process with its precision-engineered mechanics, a paramount assistant in automotive industry, pneumatic tools, chemical industry, electronics, machinery, mining, construction, etc.
• 【Built to Last】- Mainly crafted from high class aluminum and iron with a painting process, this 2hp air compressor pump head is sturdy and durable, not easy to rust or deform, ensuring a long-term service life; The strong cooling fan blade provides a good heat dissipation effect, ensuring safe and stable running of the machine.
• 【High Efficiency】- This air compressor head pump can be matched with 2HP engines, with an exhaust capacity of up to 7.06CFM(200L/Min), rated exhaust pressure of 0.8mpa(8Bar), and a maximum pressure of 1mpa(10Bar), providing a continuous and stable supply of compressed air, and greatly improves the working efficiency.
• 【Stable Operation】- This 2 cylinder air compressor pump adopts suction and exhaust valve design and mainframe belt design, to ensure that the mainframe runs stably; The air filter muffler can deliver clean and impurity-free air to the pump with low noise; Complete accessories and simple structure make the installation a breeze.
• 【User-friendly Design】- The belt driven air compressor pump is designed with an oil viewing window and an oil drain plug, which allow you to observe oil quantity of the machine intuitively and conveniently; The simple structure and smooth surface make the cleaning a breeze. 【Note】The machine is rated pressure and can not be adjusted upward.

Especificaciones
