Cargando el producto…
Precio de origen
$ 97.482
+ flete y aranceles — se calculan al cotizar
Compra protegida
Puerta a puerta
Aduana incluida

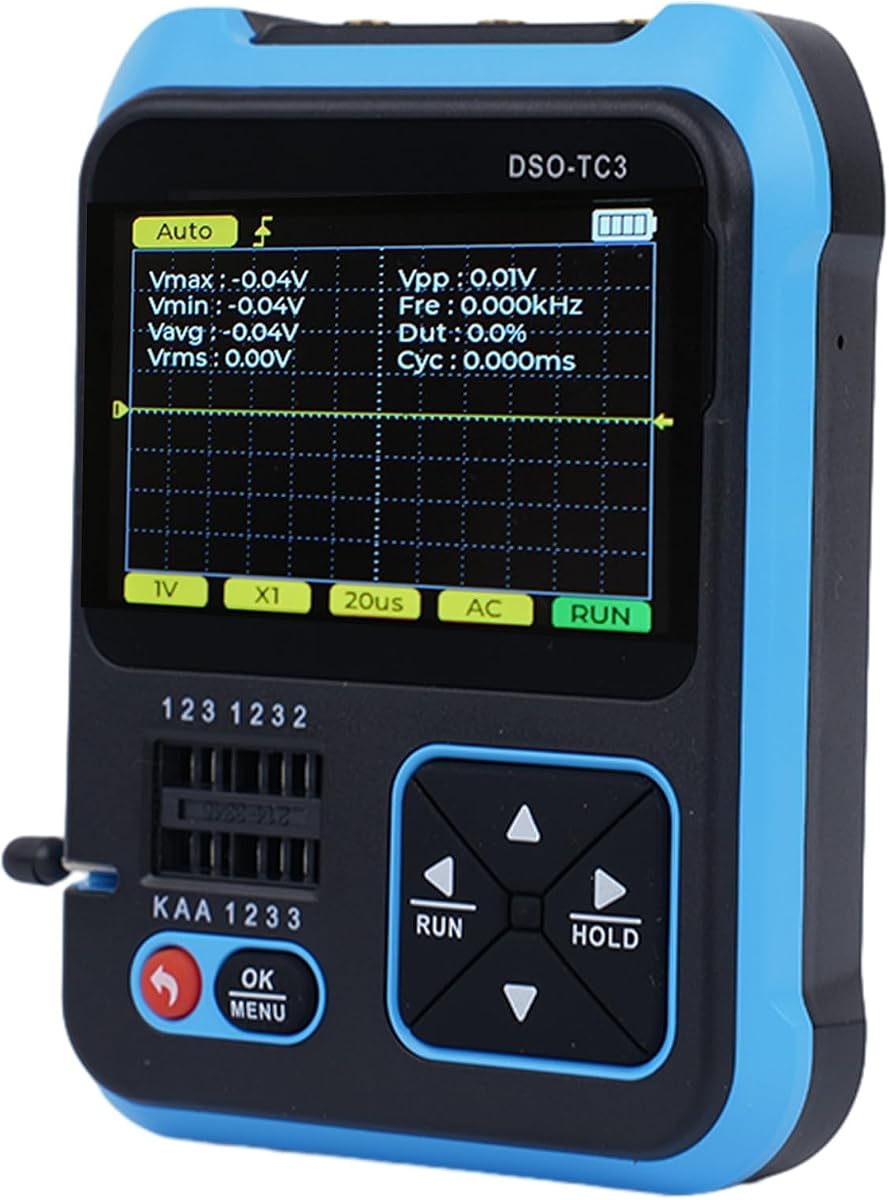

Product description Features *FIELD REPAIRS TAKE IT WITH YOU - Multi-function 3 in 1 digital oscilloscope tester function signal generator. *1 touch to achieve, accurate: high sensitivity, accurate and fast. *6 main waveforms, switch at will: sine wave, square wave, pulse wave triangle wave, ramp wave, DC. * 1500mm HQ polymer lithium battery, 4 hours life and portable. * 2.4 inch HD full color TFT screen, visible even in sunlight. *Invisible Stand, Free Your Hands: 1 foldable stand, stable and does not take up space. Specifications: Model No.: DSO-TC3 Digital Oscilloscope Real-time sampling rate: 10MSa/s Analog bandwidth: 500Khz Input resistance: 1μΩ Coupling: AC/DC Test voltage range: 1:1 probe: 80Vpp (±40V); 10:1 probe: 800Vpp (±400V) Vertical Sensitivity (×1): 10mV-10V Horizontal time base range: 1us-10s Shooting mode: Auto / Normal / Single Trigger type: Rising edge / Falling edge Waveform Freezing: Yes Capacitor ESR value: Yes Automatic measurement: maximum, minimum, average, rms, peak to peak, frequency, period, duty cycle FUNCTION SIGNAL GENERATOR Sine wave: 1-100KHz/0-3.3V/50% Square Wave:1-100KHz/3.3V/50% Pulse Wave: 1-100KHz/3.3V/0-100% Triangle Wave:1-100KHz/0-3.3V/50% Ramp:1-100KHz/0-3.3V/0-6 DC: 0-3.3V Packing List NO.1 (Standard) 1. DSO-TC31 2. 3 x Test Hooks 3. 1 x Ordinary Probe 4. 1 x Packing Box 5. 1 x Manual (English language not guaranteed). 6. 1 x Type-C Charging Cable NO.2 (OPTION) 1. 1 x DSO-TC3 2. 1 x P6100 High Voltage Probe 3. 1 x Adapter 4. 1 x Ordinary Probe 5. 3 x Test Hooks 6. 1 x Packing Box 7. 1 x Manual (English language not guaranteed). 8. 1 x Type-C Charging Cable Manufacturer Contact Information No
