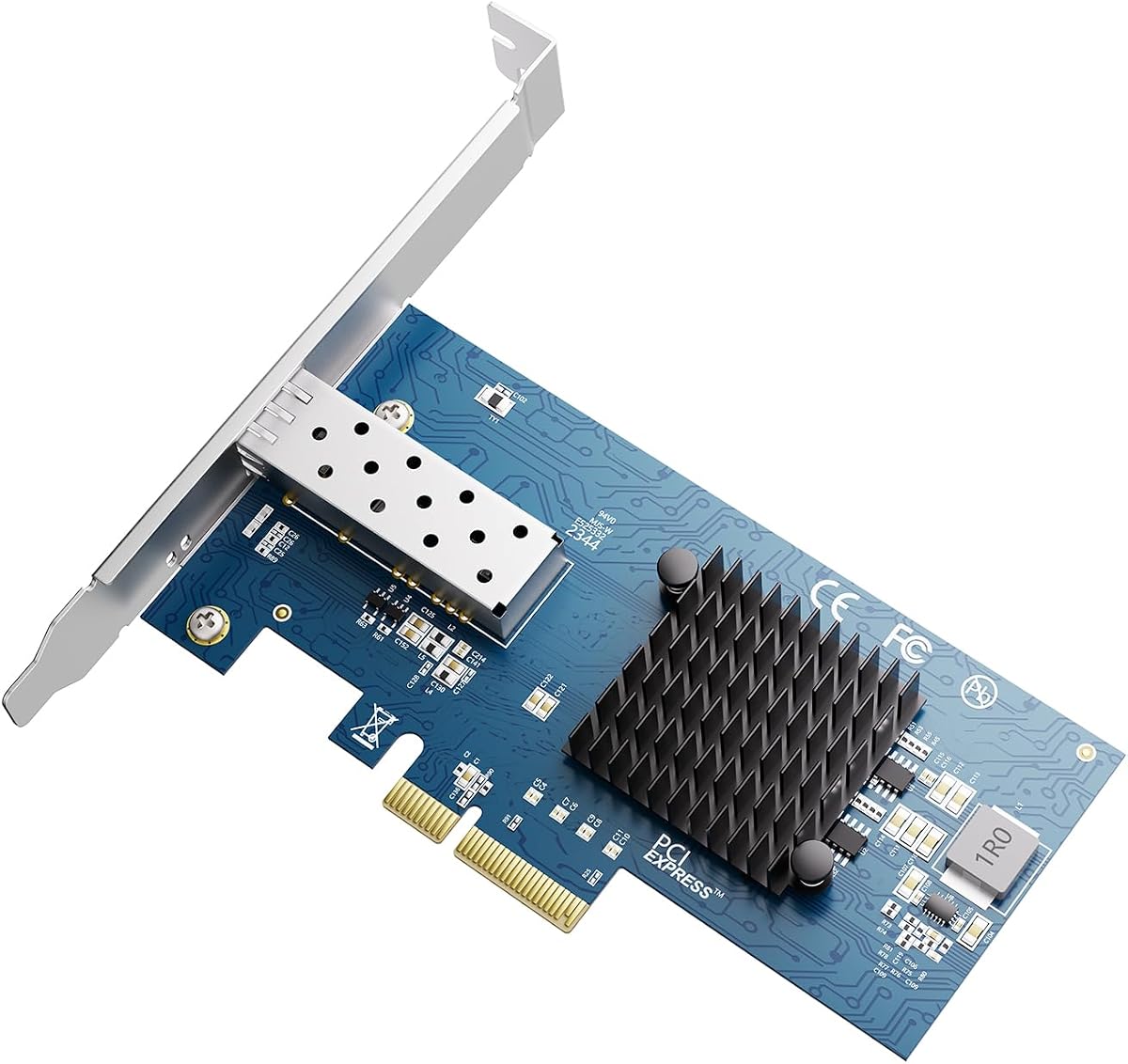

Tarjeta de Red PCI-e SFP+ Abierta de 10 Gb, con Controlador Intel 82599(X520-DA1), Adaptador Ethernet de 10 Gbps, Tarjeta NIC de 10 Gbe 10 G, Compatible con Windows/Windows Server/VMware/Remote Wake-Up/PXE/UEFI

Descripción

Product description 10Gb Open SFP+ Network Card for Reliable High-Speed Connectivity This high-performance network card delivers reliable connectivity by adding an open SFP+ slot to your server or workstation. It provides an easy and cost-effective way to upgrade to 10 Gigabit fiber networking with the flexibility to use multi-mode or single-mode fiber. This fiber network card delivers reliable, high-performance network connectivity, by adding one open SFP+ slot to your server or workstation. It provides an easy and cost-effective way to upgrade your server or workstation to one 10 Gigabit fiber network using the SFP+ module of your choice and gives you the flexibility to use either multi-mode or single-mode fiber Hardware : Bus Type :PCI Express x4 Card Type :Standard/Low Profile Chipset ID :Intel – 82599EN Industry Standards :IEEE 802.3ae (10GBASE-LR/SR only), IEEE 802.3aq (10GBASE-LRM) Supported Protocols : 10GBase-SR/10GBase-LR/10GBase-ER/10GBase-ZR/10GBase-LRM IEEE 802.3ae/IEEE 802.3aq/IEEE 802.1Qbg/IEEE 802.1Qbb/IEEE 802.1Qaz/ IEEE 802.1Qau/IEEE 1588, 802.1as IEEE 802.3ad (Link Aggregation) IEEE 802.3x (Flow Control Support) IEEE 802.1Q (VLAN tagging)Networking Specifications Port Configuration:Single Data Rate Per Port:10/1GbE System Interface Type:PCIe v2.0 (5.0 GT/s) NC Sideband Interface:Yes Jumbo Frames Supported:Yes(15K max.) Interfaces Supported:SFIVirtualization T echnology for Connectivity On-chip QoS and Traffic Management:Yes Flexible Port Partitioning :Yes Virtual Machine Device Queues (VMDq) :Yes PCI-SIG* SR-IOV Capable :Yes Advanced Technologies Virtualization Technology for Connectivity (VT-c):VMDq, SR-IOV Fiber Channel over Ethernet :Yes MACsec IEEE 802.1 AE :Yes IEEE 1588 :Yes Data Direct I/O Technology :Yes Intelligent Offloads:Yes Storage Over Ethernet:iSCSI, FCoE, NFSOS Compatibility FreeBSD, Linux , VMWare ESXi, Win 7/ Server2012/ Server 2008/ Win 8/Win 8.1/Server 2016/Win 10/Win11 See More

Características

• Al adoptar el chipset Intel 82599EN, proporciona hasta 10 Gbps de velocidad extrema para garantizar la estabilidad del acceso a Internet y la transmisión de datos local, evitando eficazmente la pérdida de paquetes y haciendo que el servidor sea más estable. Admite activación remota, PXE y UEFI
• El puerto SFP+ único le permite conectarse a un módulo/DAC/AOC SFP+ de 10 Gigabit para satisfacer las demandas de los entornos de centros de datos. PCI-E X4 Lane es adecuado para ranuras PCI-E X4, PCI-E X8 y PCI-E X16.
• Cumple con Ethernet/802.3ap de 10 Gb/s y 1 Gb/s (KX/KX4/KR), Ethernet de 10 Gb/s/802.3ae (XAUI), 1000BASE-BX, IEEE 802.3x 100BASE-TX
• Compatible con Windows 7/8.1/10/11, Windows Sever 2012/2012R2/2016/2019/2022, Microsoft Windows * (32 y 64 bits), SC0 UnixWare* 7.x, Open Unix* 8.0, Novell ODI*, Novell Netware*, SUSE Linux Enterprise Server* 9.0, Red Hat Enterprise Linux* 4.0, Linux*, FreeBSD*, Sun Solaris* Microsoft DoS*, VMWare ESX*
• Garantía de 180 días sin preocupaciones y servicio al cliente amigable. Si tiene alguna pregunta, lo ayudaremos a resolver el problema cuando lo necesite y, si no se puede resolver, le proporcionaremos un reembolso y no se requiere devolución.
