Precio desde
$ 9.083
+ flete y aranceles — se calculan al cotizar
Tamaño
Compra protegida
Puerta a puerta
Aduana incluida

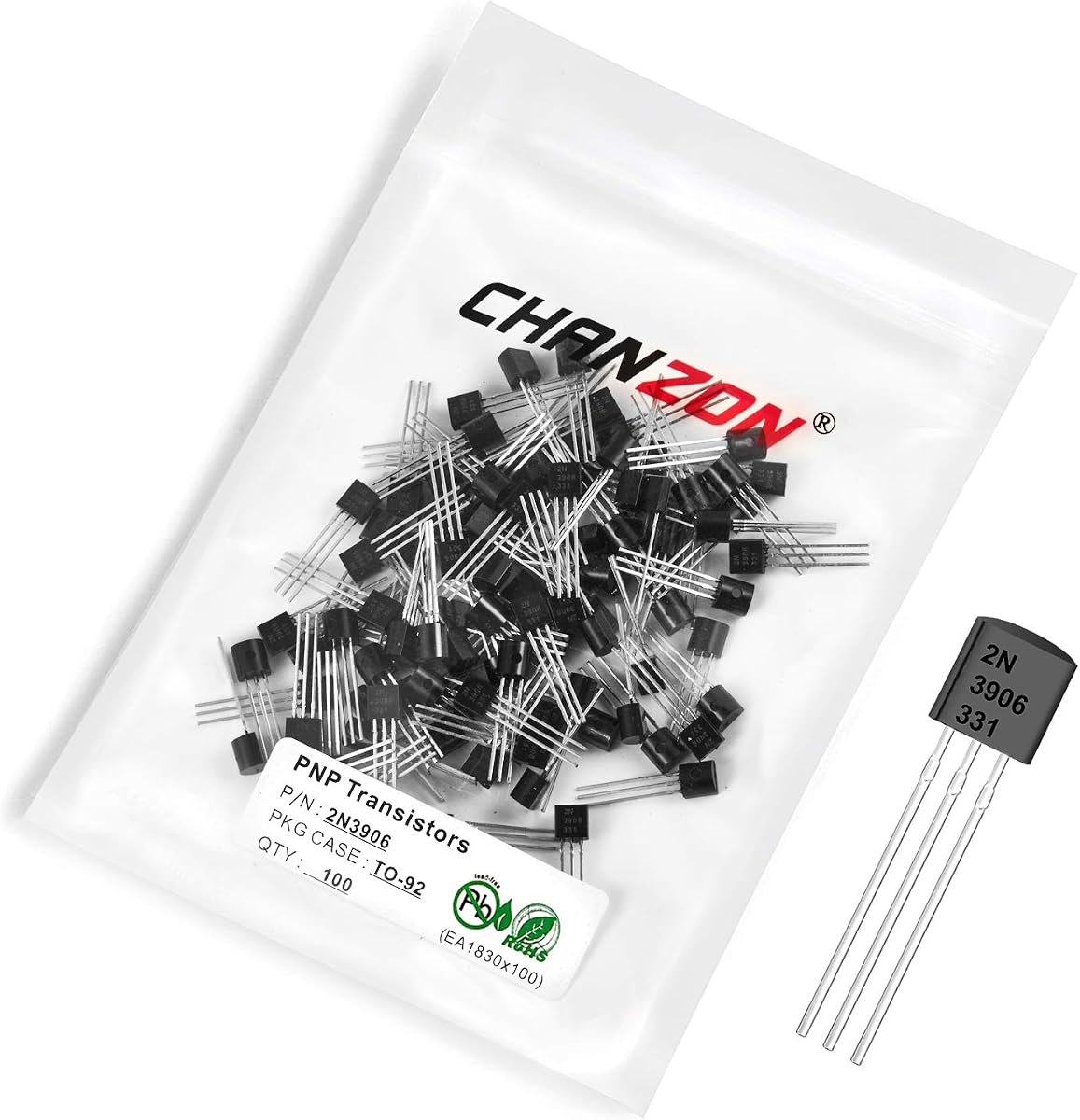

Product Description:The TO-92 Plastic-Encapsulate Transistor is an efficient PNP silicon epitaxial planar transistor designed for switching and amplifier applications. It offers high performance with a compact and reliable TO-92 package. Here are its key features:Collector-Base Voltage (VCBO): -40VCollector-Emitter Voltage (VCEO): -40VEmitter-Base Voltage (VEBO): -5VCollector Current (IC): -0.2A ContinuousCollector Power Dissipation (PC): 0.625WJunction Temperature (TJ): 150°CStorage Temperature (Tstg): -55 to 150°CCollector-Base Breakdown Voltage (V(BR)CBO): -40V at IC = -10μA, IE=0Collector-Emitter Breakdown Voltage (V(BR)CEO): -40V at IC =-1mA, IB=0Emitter-Base Breakdown Voltage (V(BR)EBO): -5V at IE= -10μA, IC=0hFE Range: 100-400 (DC Current Gain)Collector-Emitter Saturation Voltage (VCE(sat)): -0.4V at IC= -50mA, IB= -5mATransition Frequency (fT): 250MHzDelay Time (td): 35nsRise Time (tr): 35ns at VCC=-3V, VBE=-0.5V, IC=-10mA, IB1=-1mAStorage Time (ts): 225nsFall Time (tf): 75ns at VCC=-3V, Ic=-10mA, IB1=IB2=-1mAThis transistor is also available in an SOT-23 case with the type designation [MMBT3906], making it suitable for a variety of applications where space is a premium. With its robust specifications, this transistor is an excellent choice for your electronic projects.
