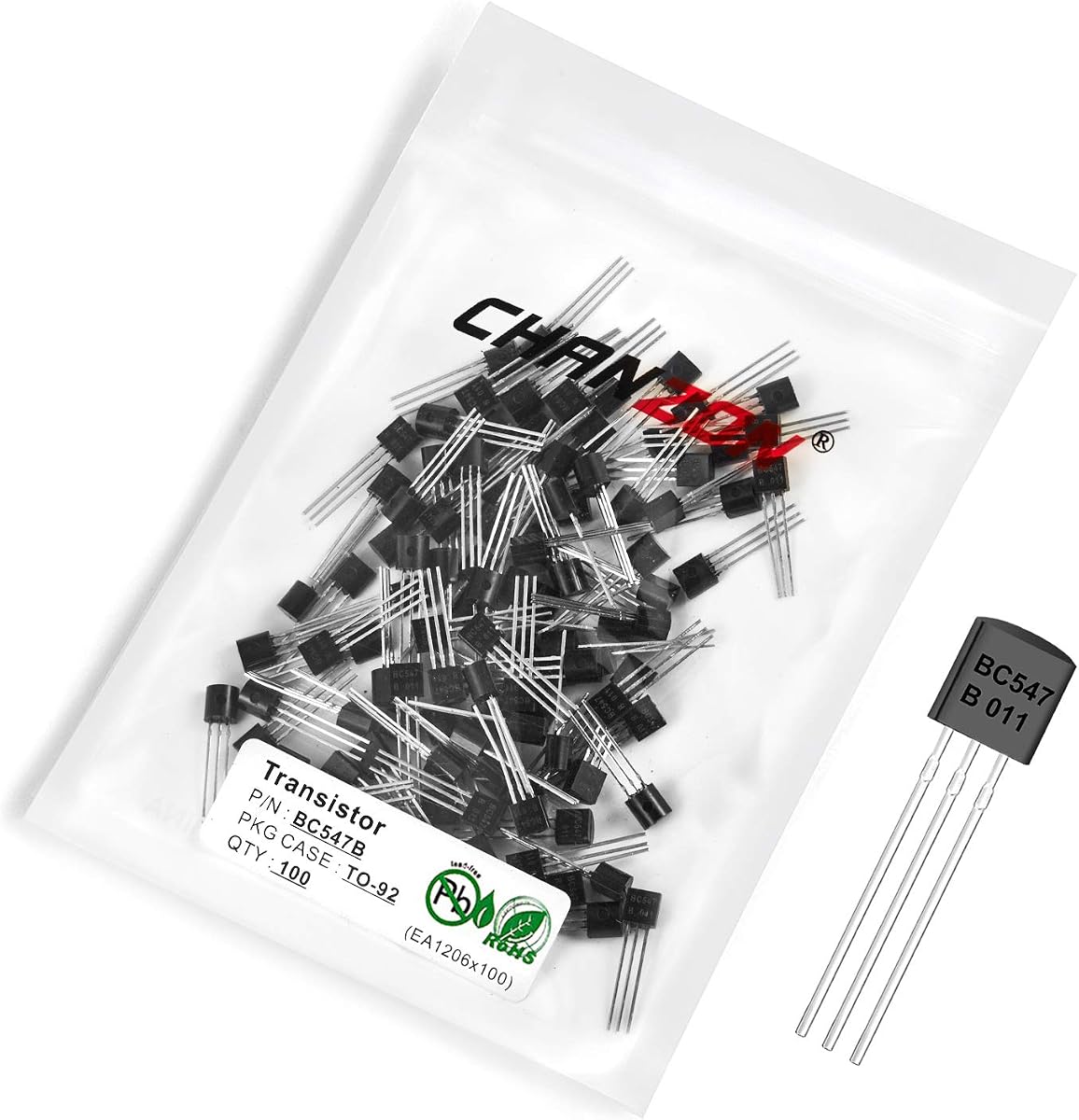

Product Description:The NPN Transistor is a high-performance component designed for high voltage applications. It is available in three variations: BC546, BC547, and BC548, each with distinct collector-base voltage ratings of 80V, 50V, and 30V respectively. These transistors are complements to the BC556, BC557, and BC558 series.Key Features:- High Voltage Compatibility- Complement to Popular BC SeriesMaximum Ratings:- Collector-Emitter Voltage (VCEO): 65V, 45V, 30V- Emitter-Base Voltage (VEBO): 6V, 6V, 5V- Collector Current - Continuous (IC): 0.1 A- Collector Power Dissipation (PC): 625 mW- Junction Temperature (Tj): 150℃- Storage Temperature (Tstg): -55℃ to +150℃Electrical Characteristics (Typical Values):- Collector-Base Breakdown Voltage (V(BR)CBO): 30V, 50V, 80V- Collector-Emitter Breakdown Voltage (V(BR)CEO): 30V, 45V, 65V- Emitter-Base Breakdown Voltage (V(BR)EBO): 5V, 6V, 6V- Collector Cut-Off Current (ICBO): 0.1 μA- Emitter Cut-Off Current (IEBO): 0.1 μA- DC Current Gain (hFE) Range: 110 to 800- Collector-Emitter Saturation Voltage (VCE(sat)): 0.3 V- Base-Emitter Saturation Voltage (VBE(sat)): 1.1 V- Base-Emitter Voltage (VBE) at IC=2mA: 0.58 to 0.7 V- Collector Output Capacitance (Cob): 4.5 pF- Transition Frequency (fT): 150 MHzClassification of hFE:- Rank A, B, C, D, E, and L with specific current gain rangesPackage: TO-92 Plastic-EncapsulateThis transistor is ideal for a variety of applications, including high voltage circuits and amplifiers. Its robust design ensures reliability and longevity in your electronic projects.
