Precio desde
$ 10.866
+ flete y aranceles — se calculan al cotizar
Tamaño
Compra protegida
Puerta a puerta
Aduana incluida

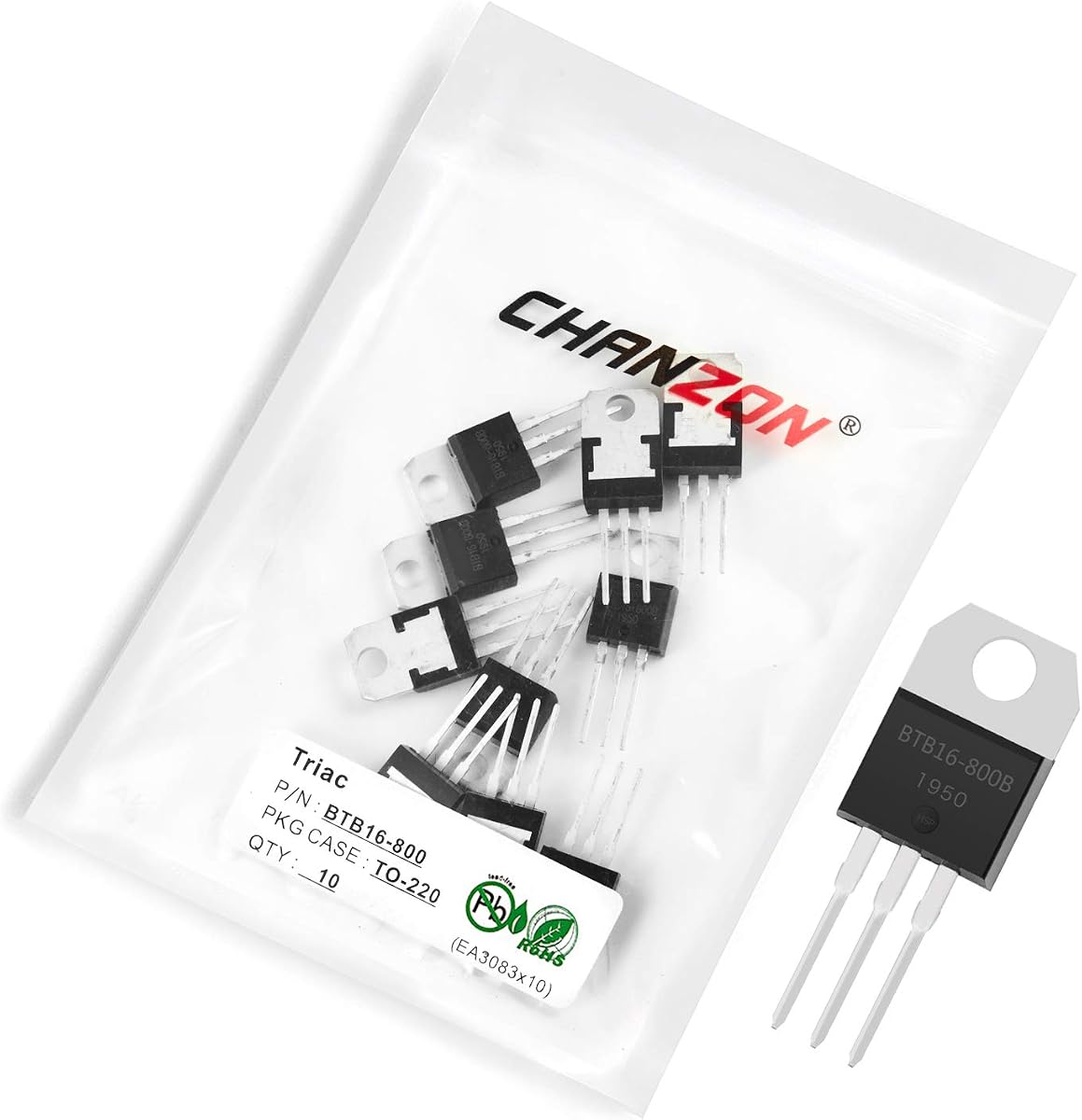

BTB16-800B Triac - TO-220AB Non-Insulated PackageIdeal for general-purpose AC switching, this triac is suitable for ON/OFF functions in static relays, heating regulation, induction motor starting circuits, light dimmers, and motor speed controllers.Key Features:Repetitive Peak Off-State Voltage (VDRM): 800VRMS On-State Current (IT(RMS)): 16A at Tc=100°CNon-repetitive Peak On-State Current (ITSM): 160A at tp=20msOperating Junction Temperature (Tj): 125°CStorage Temperature (Tstg): -40 to 150°CElectrical Characteristics:Gate Trigger Current (IGT): 50mA to 100mA at VD=12V, RL=33ΩHolding Current (IH): 50mA at IGT=0.5A, Gate OpenGate Trigger Voltage (VGT): 1.3V at VD=12V, RL=33ΩOn-State Voltage (VTM): 1.6V at IT=22.5A, tp=380μsThermal Resistances:Junction to Case (Rth(j-c)): 2.3°C/WJunction to Ambient (Rth(j-a)): 60°C/WEnsures robust device performance and reliable operation with minimum lot-to-lot variations.
Agregás al carrito
Sumás este y otros productos que querés traer.
Cotizás el envío
Calculamos flete aéreo y aranceles a Argentina.
Confirmás y pagás
Un asesor te contacta con el link de pago.
Lo recibís en casa
Tracking en tiempo real. Aduana incluida.
