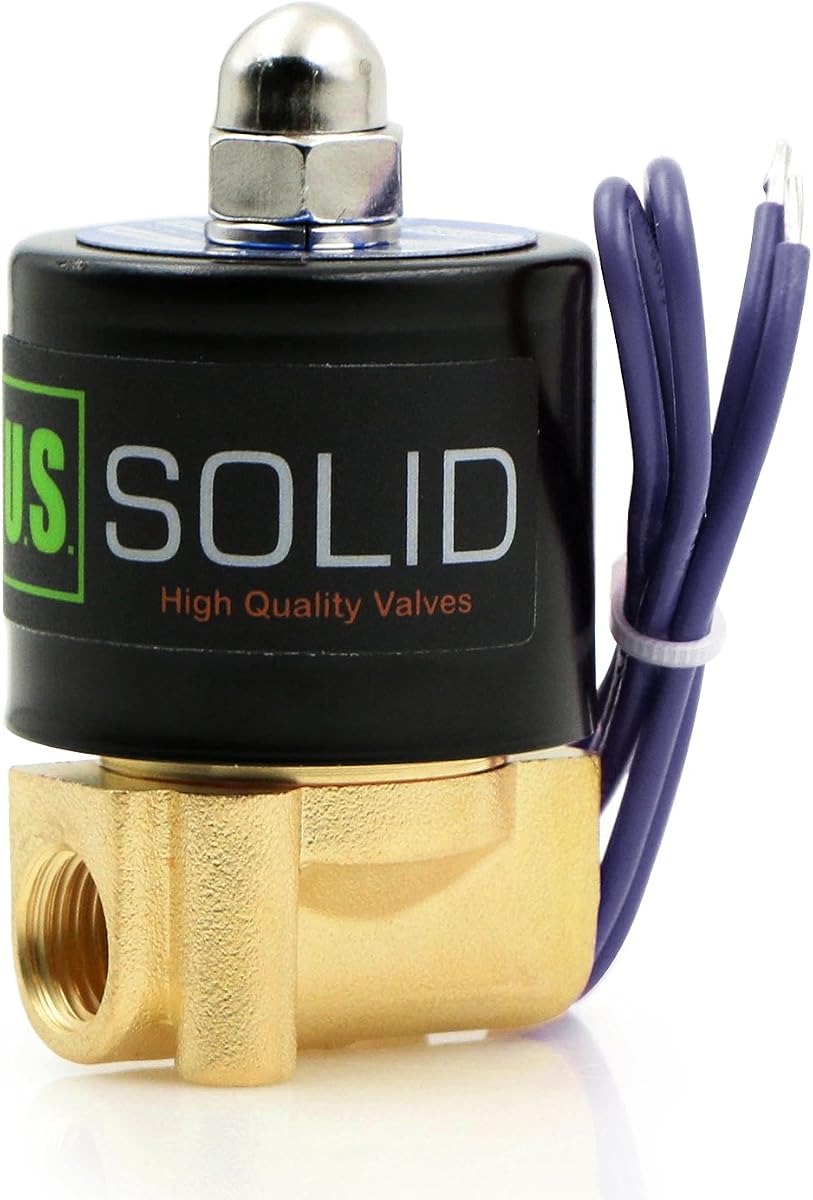

U.S. Solid 1/4" Brass Electric Solenoid Valve - 12V DC, VITON Gasket, Direct Acting, Normally Closed for Air, Gas, Fuel Applications

Descripción

Product description The U.S. Solid electric solenoid valve features a durable brass body, suitable for outdoor but not underwater use. It's favored by customers for DIY projects, moderate temperature and chemical applications, as well as for controlling flow in irrigation, reverse osmosis, and motorcycle systems. Direction of the Flow Most U.S. Solid Valves are UNIDIRECTIONAL Make a note of the arrow on your valve. Most U.S. Solid valves are unidirectional. This means they are intended to flow in one direction only, in the direction of the arrow. If connected in opposite directions, the valve will not actuate properly (will not close for Normally Closed valves). Additionally, be sure the medium passing through is filtered. If not, particles will cling to the gasket over time, which can cause it to not seal properly. Specifications Model USS2-00051 Size 1/4" Flow Aperture 2.5 mm Body Material Brass Gasket / Diaphragm / Seal VITON Rated Voltage DC 12V Current 1.17 A Power 14 W Operation Type Direct Operation Mode Normally Closed Operational Pressure Range For water and air: 0 to 7 bar. For oil: 0 to 5 bar Flow Capacity 0.23 gallons per minute (GPM) of water at 60℉ with a pressure drop of 1 PSI Flow Value 0.23Cv Operational Temperature 14 ℉ to 248 ℉ Applications diesel fuel, kerosine, alcohol etc. Applicable Liquid Viscosity < 20 cst THREADING U.S. Solid Valves follow National Standards for pipe thread. We suggest the use of Teflon tape to ensure the seal of the NPT threading. The tapered male and female thread form angled surfaces that with increased torque squeeze the Teflon tape resulting in a tight seal. About Filter Installation To avoid valve issues like leakage or jamming, make sure to install a filter if the water contains particles. If the valve can't fully open or close, it may be clogged with impurities. In this case, open the valve and clean the internal components. 1/2" Electric Solenoid Valve USS2-00051 Add to Cart USS2-00024 Add to Cart USS2-00054 Add to Cart USS2-00065 Add to Cart USS2-00081 Add to Cart Customer Reviews 4.4 out of 5 stars 1,910 4.4 out of 5 stars 73 4.5 out of 5 stars 102 4.1 out of 5 stars 144 4.2 out of 5 stars 16 Price RON 92.08RON92.08 RON 145.77RON145.77 RON 129.48RON129.48 RON 160.97RON160.97 RON 147.00RON147.00 Material Brass Brass Brass Stainless Steel Brass Voltage DC 12V DC 12V AC 110V DC 12V DC 12V Power 14W 12W 16 VA 14 W 13 W Operation Type Direct Pilot Direct Direct Direct Normally Closed ✔ ✔ ✔ ✔ ✘

Características

• Constructed of industrial grade brass, this valve is corrosion resistant, more conducive for welding, optimal for higher temperature projects, and can be used with gasoline, diesel fuel, kerosene oil, natural gas, air etc. Due to the chemical composition of brass, this valve should NOT be used with projects involving drinking water or other water projects.
• This valve was manufactured with a VITON seal. VITON is the most durable and high performance rubber material with the ability to resist high temperatures and corrosive chemicals and other fluids like gasoline, diesel fuel, oils, and lubricants.
• This highly responsive valve will open and close in less than 1 second when actuated; meaning it will open or close the flow instantaneously when energized or de-energized. Also, our U.S. SOLID engineers have determined that the life cycle of this valve is well over a million cycles with proper operating conditions and maintenance.
• PLEASE NOTE: This valve is NOT a continuous duty valve and should NOT be in continuous use for more than 8 hours in a single cycle; to do so will shorten the life of the valve and may cause the core of the valve to burn out. If you need a continuous duty valve for your project please search for our U.S. SOLID Motorized Ball Valves.
• As with all U.S. SOLID products, this valve comes with a ONE YEAR WARRANTY. If the valve does become defective within the first year of purchase, U.S. SOLID will gladly replace it.
