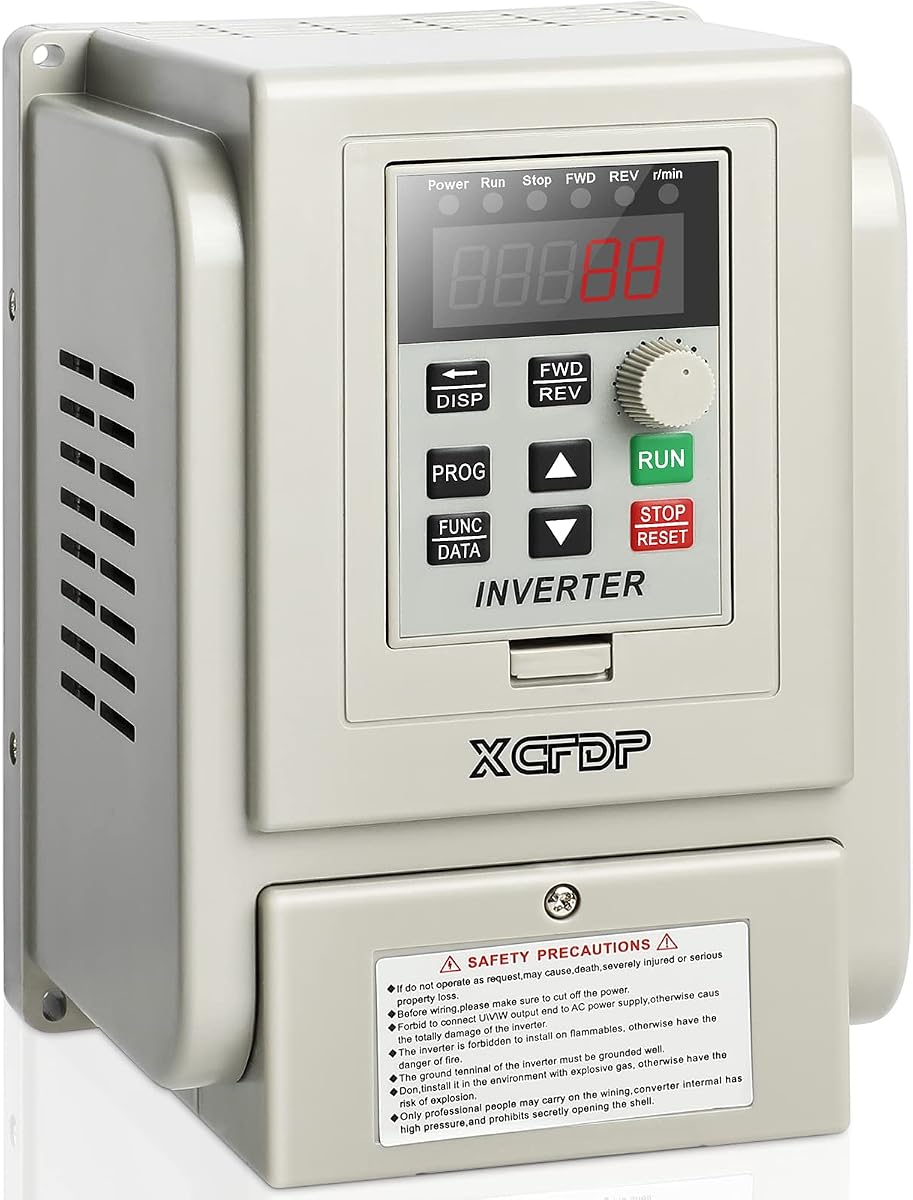

Variador de frecuencia CA 220 V/2,2 kw 3 HP, inversor VFD de 12 A Convertidor de frecuencia monofásico a trifásico para control de velocidad del motor del husillo (entrada monofásica, salida trifásica)

Descripción

Product description XCFDP AC 220V 2.2KW 3HP 12A Variable Frequency Drive,VFD Inverter Single Phase to 3 Phase Frequency Converter for Spindle Motor Speed Control Features: For a motor that is 1 to 2 times the power of this vfd, there is no problem with the vfd working for a long time for more than ten hours. Note: The motor power cannot exceed twice the power of the vfd.BUYER NOTICE：This vfd does not support external braking resistors, external relays, and external panels, but it can meet basic needs, so don't worry.This VFD is made of high quality material,screwed tightly and equipped with multiple protection features which makes this vfd drive safer, more durable and with the characteristics of more excellent performance.Fast start and stop response makes this vfd work efficiently.Three Anti-Paint Protection Lines, improve and extend the life of the fuselage.With good anti-interference ability,the stability of this vfd has been greatly improved.Equipped with a DC cooling fan, this vfd has low noise and large air volume during operation.The operation and wiring steps are simple, and the manual includes detailed instructions, which makes this vfd drive easy to be used. Package Includes: 1 × Variable Frequency Drive 220V 2.2KW 3HP 12A 1 × Operation Manual NOTE： The user manual cannot solve all problems, so please feel free to consult us if there is any problem that the manual cannot help you solve. Simple Operation: Press the programming key to enter into the programming state;Use the arrow keys and shift key to find the parameters that need to be modified;Press function / save key to enter into the parameter;Use the arrow keys and shift key to amend the parameter value;Press the function / save key to store the parameter;Press the programming key to exit the programming state. Multi-Vent Design 1.Air Cooling -- Ensure that the vfd temperature is lower than 80 ℃/176℉, and the over-temperature will trigger alarm and stop immediately to protect the vfd drive. 2.This vfd can achieve the effect of energy saving, the speed regulation range is 0-8 times, and the torque will become smaller after overspeeding. Convenient Removable Panel Equipped with removeable control panel,it is convenient to operate the vfd drive remotely, and originally equipped with 20cm panel connection wire,you can replace it with your own 2m cable.NOTICE: An extra 2m control cable will come online soon. High Quality Circuit Board 1.Double-Layer Circuit Board -- Three-proof paint protection; No virtual welding; Most processes are machine patches, and a few are inserts. 2. This vfd is easy to open, and it is easy to see the structure of the circuit board. Warm Tips：You need to set the parameters of the vfd before connecting, otherwise the settings will not be saved NOTE:Including but not limited to the following types, this VFD is only suitable for 220V (+/-15%) three-phase AC motors. How to choose the right VFD for your motor? FIRST:Please be careful not to use the VFD outside the applicable temperature range or in a humid environment. 1. Preparation: Check the rated voltage, rated current, rated frequency, rated speed of your motor, etc. 2. Selection of the capacity of vfd: For Light-load motors: the output current of the vfd > the actual working current of the motor. Such as fans, compressors, etc.For High-load motors: the motor power can be 1-2 times power of this vfd (ie, 2.2KW vfd fits 2.2KW-4.4KW motor), and the vfd can run continuously for more than ten hours. Such as ball mills, crushers , Roots blower, etc. Specification of XCFDP VFD Single Phase to 3 Phase 220V 2.2kw 3HP Color White Rated Load 3 HP Power Rating 2.2 KW Input Voltage AC 220 V Output Voltage AC 220 V Output Current AC 12A Input Frequency 50/60 HZ Output Frequency 0-400 HZ Working Temperature 14 ℉~ 104 ℉ Input Phase Single Phase Output Phase 3 Phase Output Volt Adjusting Method PWM control Dimension 4.61 x 4.96 x 6.89 inch Package Including 1 x VFD 220V/2.2KW VFD 220V 2.2kw 3HP VFD 220V 1.5kw 2HP VFD 220V 4kw 5HP VFD 220V 0.75kw 1HP Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.1 out of 5 stars 140 4.4 out of 5 stars 55 4.1 out of 5 stars 24 3.9 out of 5 stars 28 Price EUR 79.70EUR79.70 EUR 69.30EUR69.30 EUR 129.95EUR129.95 EUR 65.84EUR65.84 Input Voltage AC 220 V AC 220 V AC 220 V AC 220 V Output Voltage AC 220 V AC 220 V AC 220 V AC 220 V Input Phase Single Phase Single Phase Single Phase Single Phase Output Phase 3 Phase 3 Phase 3 Phase 3 Phase Input Frequency 50/60 HZ 50/60 HZ 50/60 HZ 50/60 HZ Output Frequency 0-400 HZ 0-400 HZ 0-400 HZ 0-400 HZ Power Rating 2.2 KW/12A 1.5KW/8A 4KW/18A 0.75KW/5A Rated Load 3 HP 2 HP 5 HP 1 HP Output Volt Adjusting Method PWM Control PWM Control PWM Control PWM Control Dimension 4.61 x 4.96 x 6.89 inch 4.61 x 4.96 x 6.89 inch 4.61 x 4.96 x 6.89 inch 4.57 x 3.98 x 6.38 inch

Características

• 【BASIC PARAMETERS】This single phase vfd drive: 1 phase input and 3 phase output;Input voltage: 220V(+/-15%),Output voltage: 220V; Input frequency: 50/60 Hz,Output frequency: 0-400 Hz; The power is 2.2KW 3HP 12A, AC 220V; VFD Dimension: 4.61 x 4.96 x 6.89 inches (L x W x H).NOTE:Some products do not have the "XCFDP" brand logo on the product due to the production batch, and there is no difference in other parameters, please don't mind this.
• 【EXCELLENT PERFORMANCE】With the copper coil of good quality,this Vfd drive is safer and more durable.And this vfd adopts the multi-grid design with enough cooling space between the electronic components and the case, so it is easier to cool quickly.
• 【MULTI-PROTECTION AND EASY TO OPERATE】this vfd drive is screwed tightly and equipped with multiple protection functions for stable and safe operation,such as Three Anti-Paint Protection Lines,Over Current Protection,Over Voltage Protection,Overload Protection,Short Circuit Protection.And the simple removable control panel and the easy connection make this vfd easier to use.(!!NOTE:Comes with 20cm control panel cable inside the vfd, extra extension cables are not included.)
• 【WIDE APPLICATION】This vfd inverter single to 3 phase is widely used in various types of automatic control equipment, such as: Spindle Motor,Speed Control,CNC,Drill Press, HVAC, Lathe, Milling, Pumps, Conveyors, Mach3, Fan, Cooling, Compressor, Three-phase motor and other machines, etc...PLEASE NOTE: your motor power should not be more than twice the power of this vfd!!
• 【CUSTOMER SERVICE】Pre-Sale: Since our VFDs contain many models, welcome to consult our customer service to choose one of the vfd you need; After-Sale: This single phase vfd comes with a general user manual of multiple models, please refer to the part of AT1--Single-phase to three-phase. No matter what the problems before or during use, please feel free to contact our customer service in time.You will get WORRY-FREE 18-MONTHS WARRANTY & LIFELONG TECH SUPPORT.

Especificaciones
