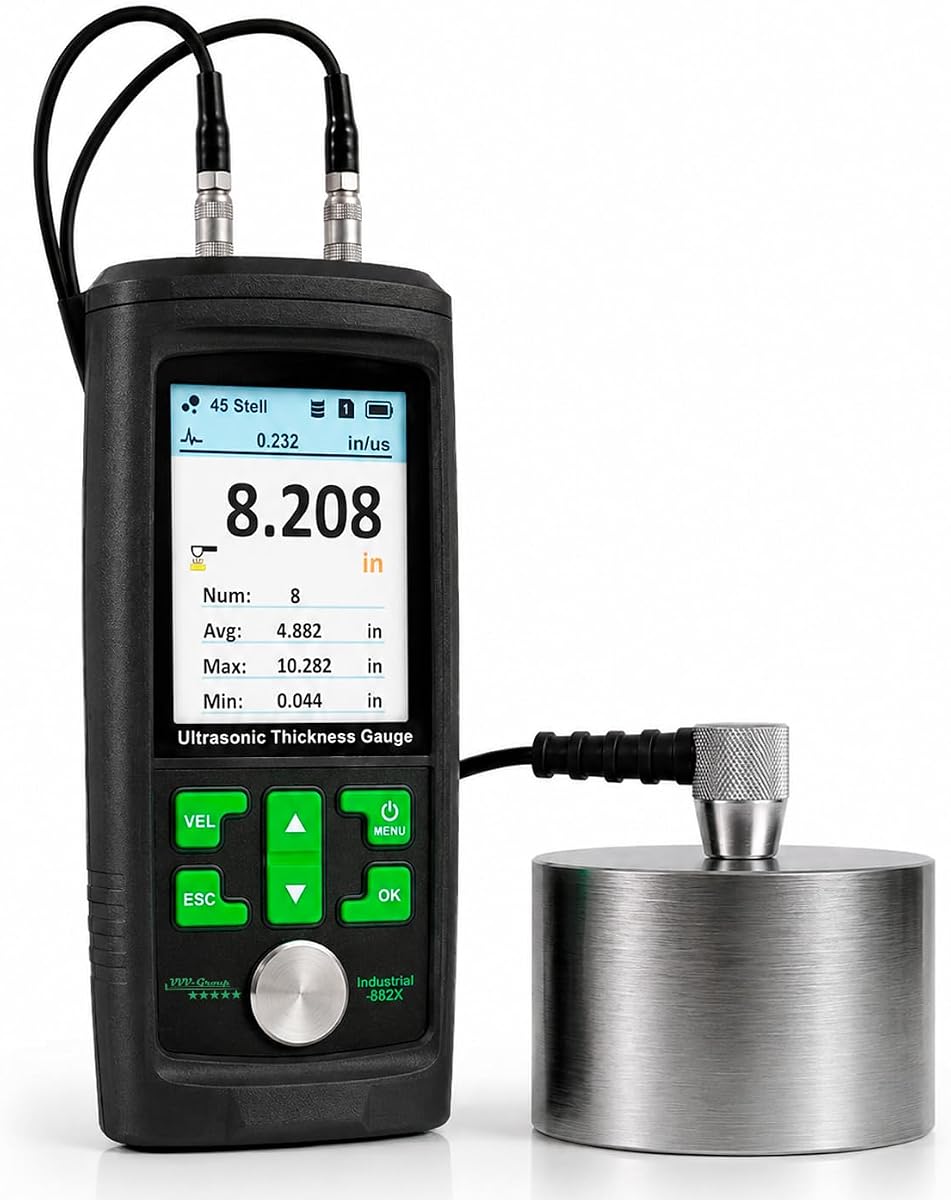

Ultrasonic Thickness Gauge Industrial-882X / Steel, Metals, Plastic, Glass, PVC, Pipes Thickness Gauge Meter – Range 0.039 to 11.811 inch (1-300mm) | Color LCD

Descripción

Product description Ultrasonic Thickness Gauge Industrial-882Х FUNCTION AND SPECIFICATION: Measurement Principle: Ultrasonic pulse-echo thickness measurement for non-destructive testing of solid materials; Measurement Range: 0.039–11.81 in / 1–300 mm (steel) — ideal for pipes, tanks, steel plates and structural parts; Resolution: 0.001 in / 0.01 mm (up to 100 mm), 0.1 mm above 100 mm for detailed wall loss inspection; Accuracy: ±(0.5%H + 0.05 mm) for reliable corrosion monitoring and industrial inspection; Sound Velocity Range: 1000–9999 m/s — supports custom setup for aluminum, brass, copper, PVC, glass and plastics; Built-in Material Presets: 12 preset materials for faster field setup during routine inspections; Measurement Modes: Standard ultrasonic thickness measurement for pipes, tanks, steel plates and industrial wall inspection; Probe Type: 5MHz Φ10 dual-crystal probe for general industrial wall thickness measurement; Optional Probe Support: Supports 5MΦ6, 2.5MΦ12 and high-temperature probes for thin-wall tubing, thick steel plates, cast iron parts and elevated-temperature surfaces; Display Type: HD color LCD with adjustable brightness for outdoor field inspections and low-light environments; Data Storage Capacity: Stores up to 1500 readings for maintenance logs, quality records and comparison reports; Calibration Methods: Zero calibration + sound velocity calibration for improved accuracy on known and unknown materials; Units of Measurement: mm / inch switchable for international industrial standards and engineering workflows; Power Supply: 1000mAh rechargeable lithium battery for portable field use and extended inspections; Operating Temperature: -10–50°C / 14–122°F for workshop, factory and on-site inspection environments; Applications: Pipe wall thickness, tank corrosion inspection, pressure vessel testing, boiler inspection, metal fabrication QC and machinery maintenance; Previous page Next page Previous page Next page

Características

• ULTRASONIC MEASUREMENT: Ultrasonic Thickness Gauge 882X offers precise measurement of various homogeneous materials, including metals like steel, aluminum, and copper, as well as plastics, ceramics, and glass. Utilizing advanced ultrasonic wave technology, it ensures accurate and reliable thickness assessments of material.
• TECHNICAL PARAMETERS: Ultrasonic Thickness Gauge Industrial-882X delivers a broad measurement range of 0.039 to 11.811 inches (1 mm to 300 mm) for 45# steel, ensuring versatility for industrial applications. With an impressive resolution of 0.001 inches, it provides precise and reliable thickness measurements for professional use.
• CALIBRATION & SETTINGS: Ultrasonic Thickness Gauge Industrial-882X ensures accuracy with easy calibration using a reference block and customizable sound velocity settings. With a sound speed range of 0.039–0.393 in/μs (1000–9999 m/s), it adapts seamlessly to various materials for precise measurements.
• HANDHELD & COMFORTABLE: The Ultrasonic Thickness Gauge Industrial-882X features a compact, handheld design for effortless portability. Powered by a high-speed microprocessor, it ensures efficient and reliable operation in any industrial setting.
• ADVANCED DISPLAY: Ultrasonic Thickness Gauge Industrial-882X boasts an HD color screen with adjustable backlight brightness for optimal visibility in any environment. Customize the interface with a selection of vibrant colors, including blue, orange, green, purple, and grey, for a personalized user experience.
• VERSATILE APPLICATION: Ultrasonic Thickness Gauge Industrial-882X is perfect for manufacturing, metal processing, and inspection tasks. It excels in measuring the average thickness of pipelines and pressure vessels while effectively assessing corrosion levels, ensuring reliability in industrial applications.
• APPLICABLE TO MOST MATERIALS: Ultrasonic Thickness Gauge Industrial-882X is suitable for a wide range of materials that allow ultrasonic waves to transmit at a constant speed and produce distinct reflections from the backside. It is ideal for use with metals, plastics, ceramics, and glass, but not recommended for porous materials like cast iron or carbon fiber.
• PRECISION TOOL FOR PROFESSIONALS: This ultrasonic thickness gauge is a reliable instrument for quality control, maintenance, and engineering professionals. Provides fast and accurate readings in demanding industrial environments.
